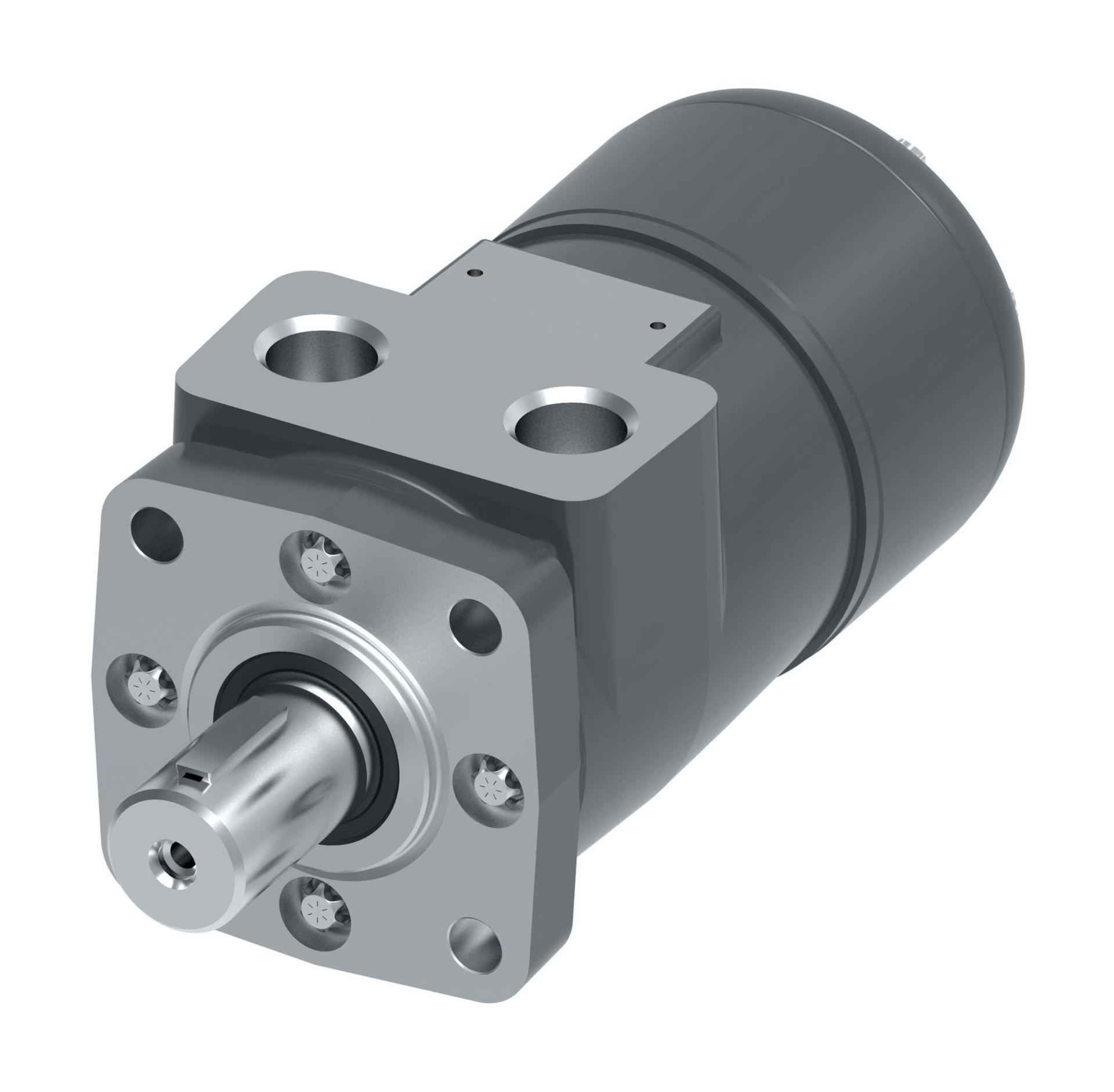

Product specifications
Characteristic | Value |
|---|---|
| Model Code | MH0179BA01AB0100070000000AA00J |
| Motor Series | H Series |
| Valve system | Spool valve |
| Orbital gearwheel set type | Gerotor |
| Motor size | 295 |
| Geometric displacement [cm3/r [in3/r]] | 294 [17.9] |
| Motor type | Standard |
| Motor function | Standard |
| Mounting flange type | 4 Bolt - Square |
| Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]] | 44.4 x 3.1, 82.6, 3/8 - 16 UNC-2B [1.75 x 0.12, 3.25, 3/8 - 16 UNC-2B] |
| SHAFT TYPE | Straight |
| Shaft dimension | Dia. 1 inch, 1/4 - 20 UNC-2B thread in shaft end |
| Shaft Key | Woodruff key |
| Main port thread type | NPT / NPTF |
| Main port style | Sideport - aligned |
| Main port dimension | 1/2 - 14 NPTF |
| Drain Port Dimension | 7/16 - 20 UNF-2B SAE O-Ring port |
| Brake Release Port Dimension | n/a |
| Painted | Yes |
| Paint information | Primer, Black, Low gloss |
| Special features hardware | Standard |
| Special Features Assembly | Standard |
| Dust seal | Standard |
| Shaft Seal | HNBR - High pressure |
| Seal Kit | 60572-000 |
| Front bearing type | Journal bearing |
| Rear bearing type | Journal bearing |
| Orbital gearwheel set | Standard |
| Check valve function | No |
| Hydraulic valve function | None |
| Sensor | None |
| Packaging | No data available |
| Name Tag | Danfoss name tag |
| Design code | 09 |
