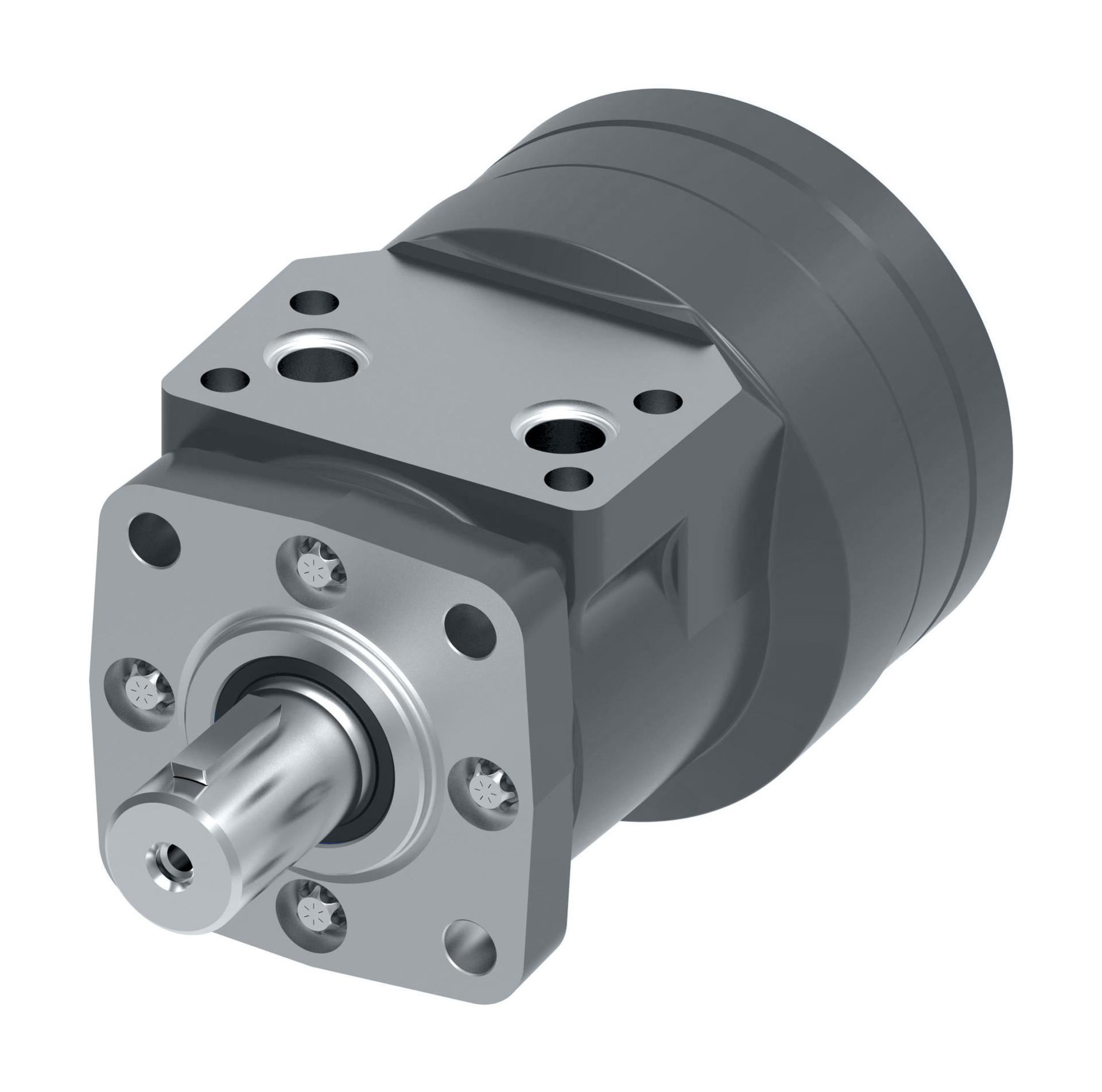

Product specifications
Characteristic | Value |
|---|---|
| Model Code | MS0073BA01AC0000000000000AA00M |
| Motor Series | S Series |
| Valve system | Spool valve |
| Orbital gearwheel set type | Geroler |
| Motor size | 120 |
| Geometric displacement [cm3/r [in3/r]] | 120 [7.3] |
| Motor type | Standard |
| Motor function | Standard |
| Mounting flange type | 4 Bolt - Square |
| Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]] | 44.4 x 3.1, 82.6, 3/8 - 16 UNC-2B [1.75 x 0.12, 3.25, 3/8 - 16 UNC-2B] |
| SHAFT TYPE | Straight |
| Shaft dimension | Dia. 1 inch, 1/4 - 20 UNC-2B thread in shaft end |
| Shaft Key | Woodruff key |
| Main port thread type | Manifold |
| Main port style | Sideport - aligned |
| Main port dimension | 4 x 5/16 - 18 UNC-2B mounting threads |
| Drain Port Dimension | None |
| Brake Release Port Dimension | n/a |
| Painted | Yes |
| Paint information | Primer, Black, Low gloss |
| Special features hardware | None specified |
| Special Features Assembly | Standard |
| Dust seal | Standard |
| Shaft Seal | NBR - Standard |
| Seal Kit | No data available |
| Front bearing type | Journal bearing |
| Rear bearing type | Journal bearing |
| Orbital gearwheel set | Standard |
| Check valve function | No |
| Hydraulic valve function | None |
| Sensor | None |
| Packaging | No data available |
| Name Tag | Danfoss name tag |
| Design Code | 12 |
| Brand | Danfoss |
| Case flow options | None |
| Customer identification | None |
| Design code | Twelve |
| Displacement | 120 cm3/r [7.3 in3/r] |
| Geroler options | None |
| MOUNTING TYPE | 4 s p44 b83 3/8-16 |
| Mounting type | 4 s p44 b83 3/8-16 |
| Output shaft type | 01 Str 1in |
| Output shaft type | 01 Str 1in |
| Paint packaging | Primer low gloss black |
| Port type | Man 5/16-18 |
| Product | Motor |
| Product View (Switch) | Global (Standard) |
| Seal options | Standard seals |
| Seal options | Standard seals |
| Series | S series motor |
| Series | S series motor |
| Shaft options | None |
| Special assembly instructions | None |
| Speed sensor | None |
| Sub brand | Char-Lynn |
| Valve options | None |
