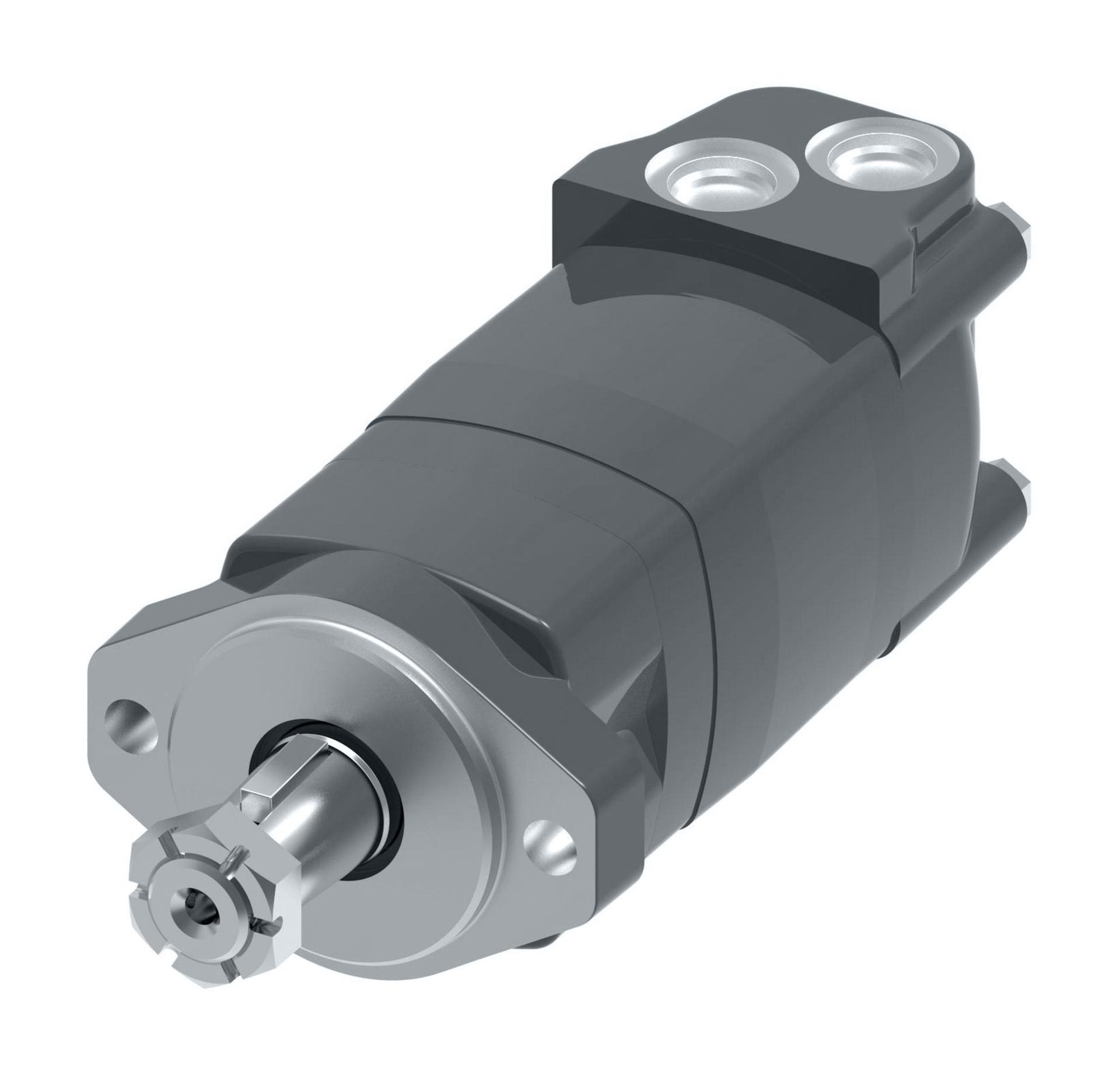

Product specifications
Characteristic | Value |
|---|---|
| Model Code | M02187AC03AA0100010000000ABAAF |
| Motor Series | 2000 Series |
| Valve system | Disc valve with valve drive |
| Orbital gearwheel set type | Geroler |
| Motor size | 305 |
| Geometric displacement [cm3/r [in3/r]] | 306.6 [18.71] |
| Motor type | Standard |
| Motor function | Standard |
| Mounting flange type | 2 Bolt - A |
| Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]] | 82.6 x 6.4, 106.4, 13.6 [3.25 x 0.25, 4.19, 0.54] SAE A |
| Shaft type | TAPERED |
| Shaft dimension | Dia. 1 1/4 inch, 1:8 SAE J501, 1 - 20 UNEF-2A thread in shaft end |
| Shaft Key | Square key, 5/16 x 1 inch |
| Main port thread type | UN / UNF |
| Main port style | Sideport - staggered |
| Main port dimension | 7/8 - 14 UNF-2B SAE O-Ring port |
| Drain Port Dimension | 7/16 - 20 UNF-2B SAE O-Ring port |
| Brake Release Port Dimension | n/a |
| Painted | Yes |
| Paint information | Primer, Black, Low gloss |
| Special features hardware | None |
| Special Features Assembly | Standard |
| Dust seal | Standard |
| Shaft Seal | NBR - Standard |
| Seal Kit | 61258-000 |
| Front bearing type | Tapered roller bearing |
| Rear bearing type | Tapered roller bearing |
| Orbital gearwheel set | Standard |
| Check valve function | Yes |
| Hydraulic valve function | None |
| Sensor | None |
| Packaging | Single pack |
| Name Tag | Danfoss name tag |
| Design code | 06 |
| Accessories | None |
| Brand | Danfoss |
| CMM | 2K_CMM |
| Case flow options | 7/16-20 |
| Customer identification | None |
| Design code | Sixth |
| Displacement | 306.6 cm3/r [18.71 in3/r] |
| Geroler options | Standard |
| Low pressure relief | None |
| Low pressure relief | None |
| MOUNTING TYPE | 2 s p83 b106 h14 |
| Mounting type | 2 s p83 b106 h14 |
| Output shaft type | Tap 1.25in s5/16x1in |
| Output shaft type | Tap 1.25in s5/16x1in |
| Paint packaging | Primer low gloss black |
| Port type | Sta 7/8-14 |
| Pressure flow option | None |
| Product | Motor |
| Product View (Switch) | Global (Standard) |
| Seal options | Standard |
| Seal options | Standard |
| Series | 2000 series |
| Series | 2000 series |
| Special assembly instructions | None |
| Sub brand | Char-Lynn |
