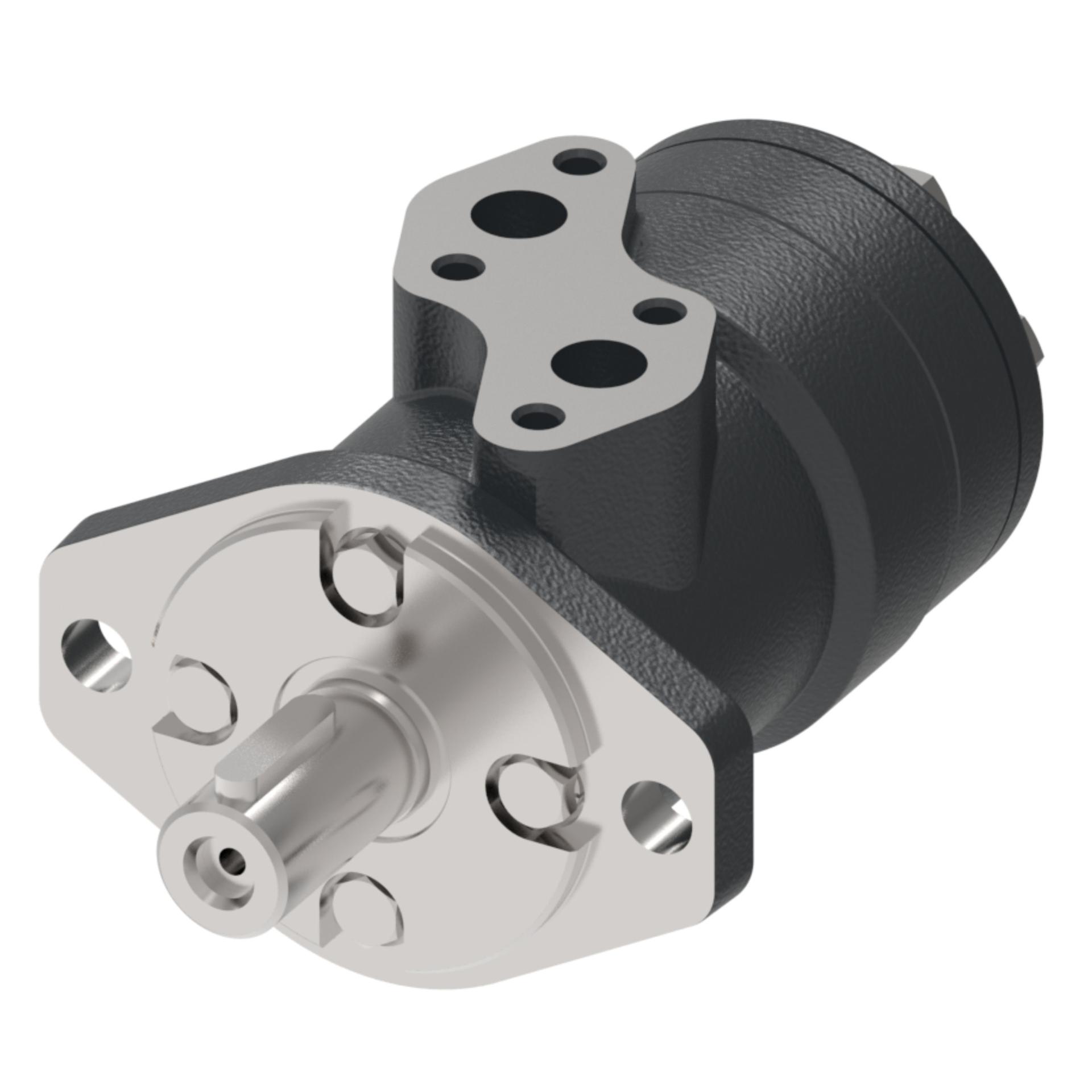

XLH orbital motors

Xcel series XLH spool-valve motors for low- and medium-duty applications are built to optimize performance and value. They are available with displacements from 53 cm³ to 485 cm³ [3.2 in^₃ to 30 in³] to provide reliable, proven solutions backed by Danfoss expertise.

Features and benefits

Proven orbit motor principle
Hydrodynamic journal bearings
Three moving components (Gerotor-star, drive, and shaft)
Three-zone pressure design
Compact, powerful package
High efficiency
Long bearing life (at rated loads)

Applications

Salt and sand spreaders
Street cleaner brushes
Combine reel drives
Feed-grinding augers
Auger swing drives
Stake-down motors

To select from the full range of orbital motors, see the orbital motor quick selector.

XLH specifications

Displacement (cm³/r) [in³/r]	53 [3.2]	63 [3.8]	80 [4.9]	100 [6.2]	125 [7.6]	160 [9.6]	200 [12.2]	245 [14.9]	315 [19.2]	390 [23.8]	485 [30.0]
Continuous max speed (rpm)	1,117	926	751	610	495	375	306	248	189	153	124
Continuous torque (Nm) [lb in]	105 [930]	122 [1,080]	152 [1,345]	184 [1,680]	228 [2,018]	295 [2,611]	366 [3,239]	351 [3,107]	377 [3,337]	387 [3,425]	404 [3,576]

XLS specifications

Displacement (cm³/r) [in³/r]	50 [3.1]	80 [4.9]	100 [6.2]	130 [8.0]	160 [9.6]	195 [11.9]	245 [14.9]	305 [18.7]	395 [24.0]
Continuous max speed (rpm)	1,037	757	600	467	386	313	250	199	155
Continuous torque (Nm) [lb in]	127 [1,124]	202 [1,788]	248 [2,195]	320 [2,832]	380 [3,363]	468 [4,142]	508 [4,496]	492 [4,355]	575 [5,089]
