GearMe modular three stage aluminum gear pumps

These setups feature three pumps with internal splined drive shafts connected through a coupling and an intermediate steel plate. The pumps are hydraulically independent and can efficiently address different machine functions, which saves space. Options include shared or independent inlets, a relief valve on the cover, and inlets/outlets on the second- and third-stage covers.

Features and benefits

High-quality case with hardened steel gears
Pressure-balanced for exceptional efficiency
SAE, DIN, and European standard mounting flanges
Multiple pump configurations and variety of features provide design flexibility
Multi-fluid capability

Applications

Agriculture
Construction
Distribution
Industrial applications
Material handling

Specifications

Continuous pressure ratings up to 250 bar [3,625psi]
Speeds up to 4,000 rpm
Displacements from 1.18 cm³ to 88.2 cm³ [0.07 in³to 5.38 in³]

Product types shown: 5

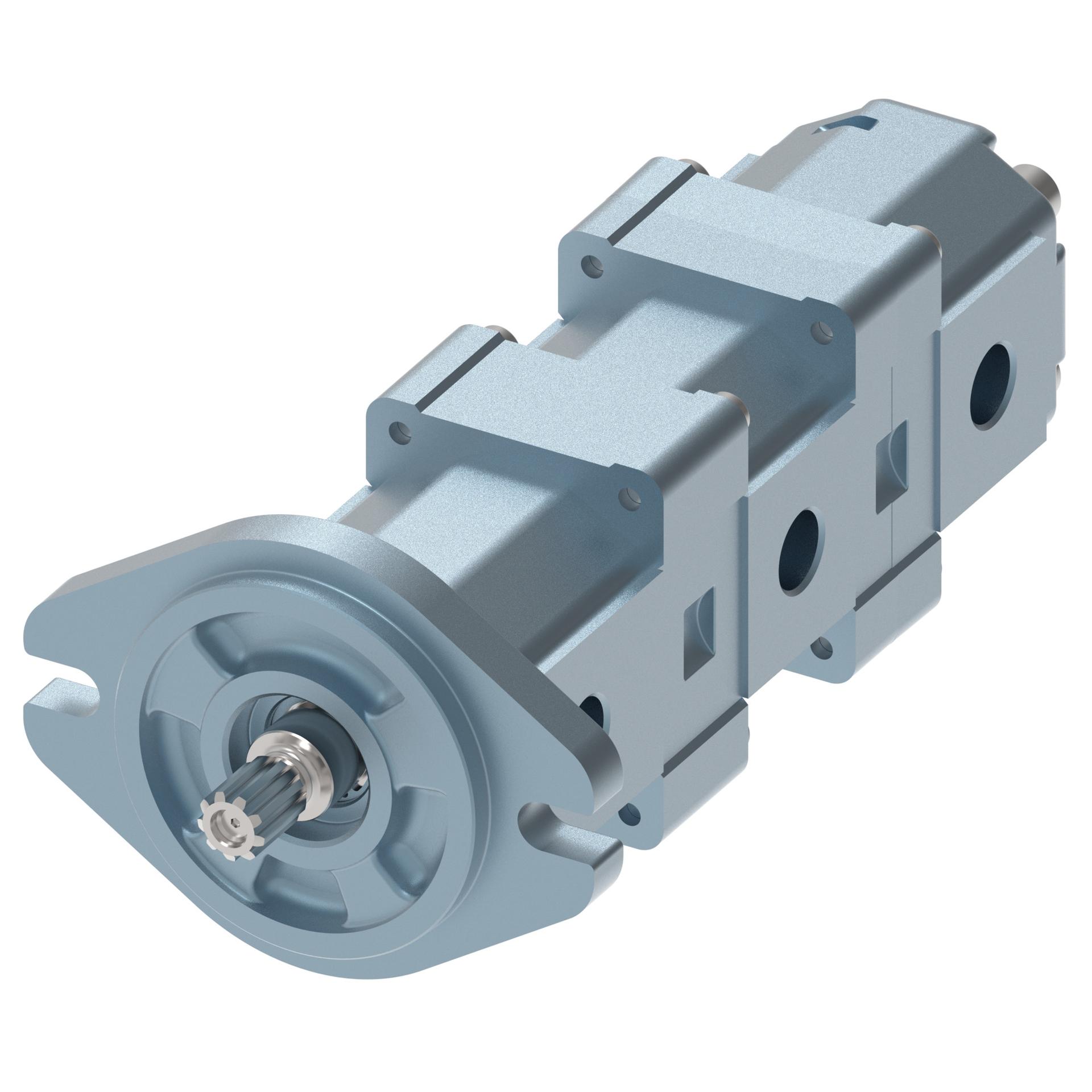

GearMe three stage aluminum gear pumps Group 1
These setups consist of three pumps from Group 1.
GearMe three stage aluminum gear pumps Group 2
These setups consist of three pumps from Group 2.
GearMe three stage aluminum gear pumps Group 3
These setups consist of three pumps from Group 3.
GearMe three stage aluminum gear pumps Group 3+2+2
These setups consist of one pump from Group 3 and two pumps from Group 2.

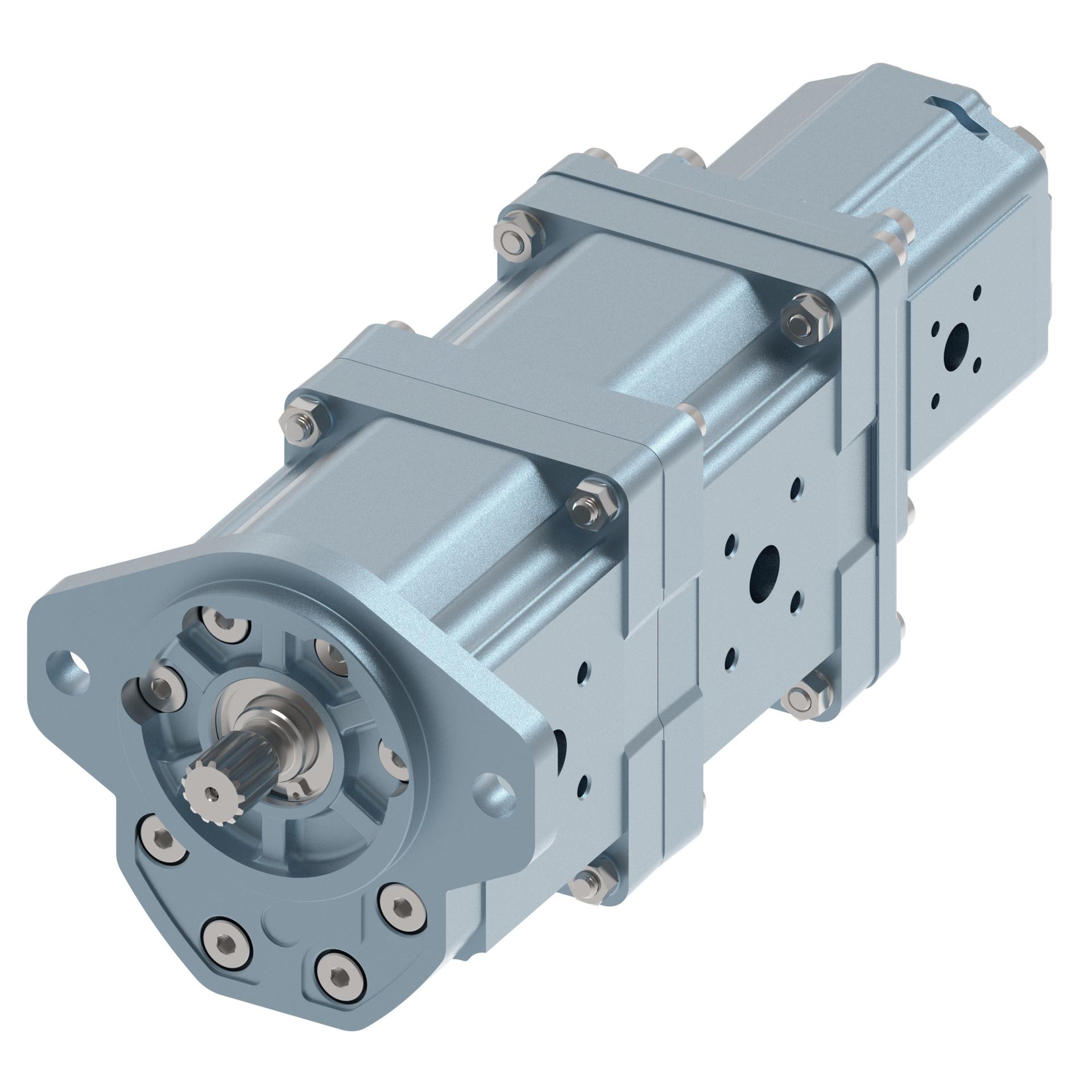

GearMe three stage aluminum gear pumps Group 3+3+2
These setups consist of two pumps from Group 3 and one pump from Group 2.
