PLUS+1® SC microcontrollers
Our safety-compliant controllers are suitable for use in your most critical applications. Dual microprocessors and an increased memory capacity enhance performance while supporting redundant output control.
Features and benefits
- Programmable in PLUS+1® GUIDE
- Dual processors and internal micro-to-micro UART
- 12-bit analog to digital converter
- Each PWM output may have a unique frequency
- Two CAN 2.0B ports with the shield pin configurable as a DIN/AIN
- CE Compliant
- Certified SIL 2 capable
Applications
- Aerospace and aviation
- Automotive safety systems
- Energy and power distribution
- Industrial automation and control
- Medical devices
- Military and defense
- Railway systems
Specifications
| Power supply | 7 VDC to 36 VDC |
| Power supply (external sensor) | 5 VDC to 500 mA |
| Power supply (external sensor, user defined) | 3 VDC to 12 VDC |
| Operating temperature | -40°C to 85°C [-40°F to 185°F] |
| EMC rating | 150 V/m |

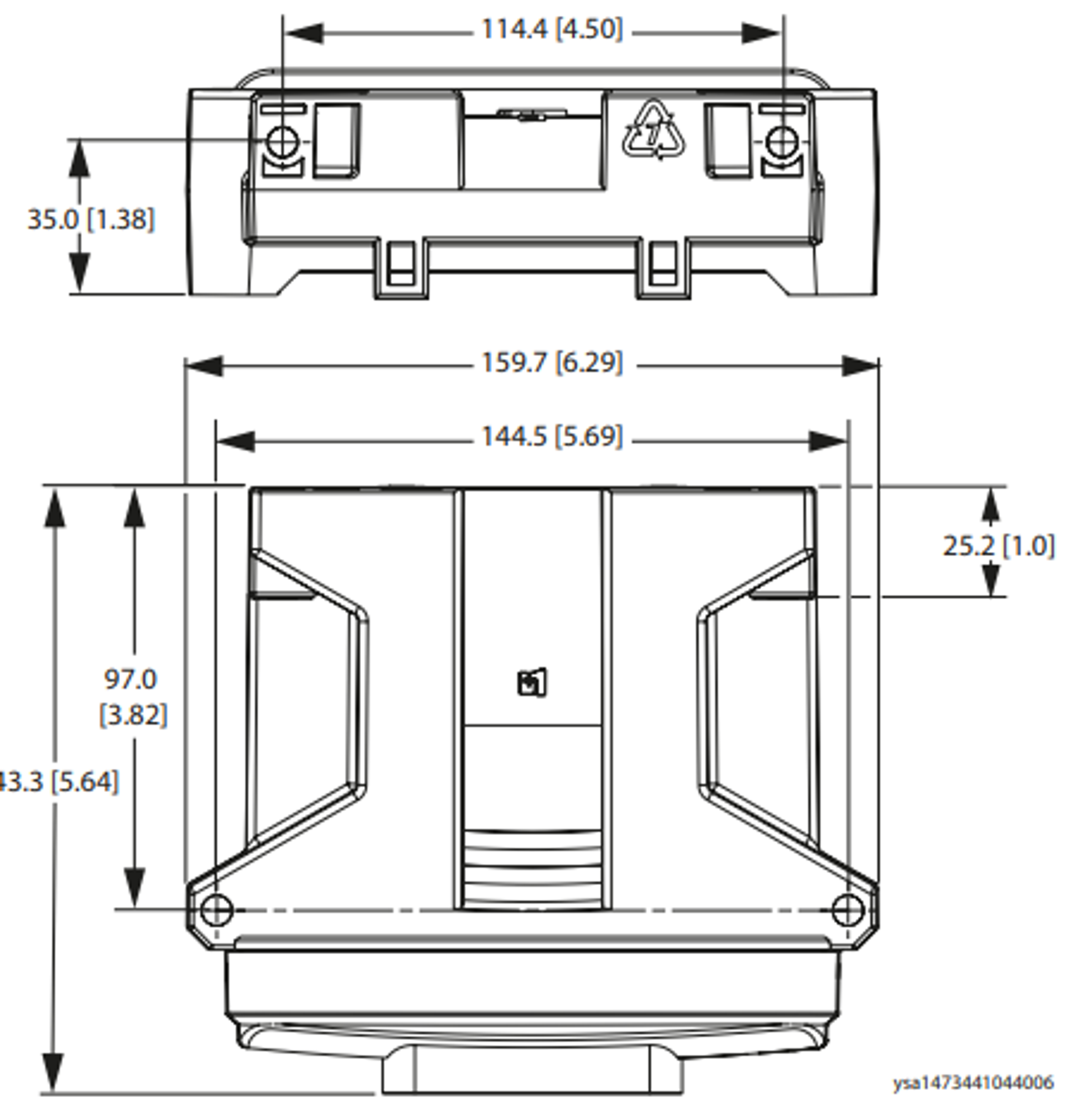

Dimensions in mm [in]
