PLUS+1® XL controllers
With the highest pin count in the PLUS+1® controller family, the XL controller eliminates the need for expansion modules and allows for streamlined, compact machine designs.
Features and benefits
- User-programmed with PLUS+1® GUIDE and C Open
- AURIX 32-bit processor at 200 MHz, 2.5 MB flash, 240 kb RAM, Lock Step Core
- 32 kb EEPROM non-volatile external memory and optional 64 MB flash vault memory
- Internally monitored 7 VDC to 36 VDC power supply
- Sensor power outputs: one 5 V fixed, one 3 V to 12 V variable
- Three CAN 2.0B ports
- SIL2 compliance
Applications
- Agriculture
- Construction
- Heavy machinery
- Industrial automation
- Material handling systems
- Mobile hydraulics
- Specialized vehicles
For certificates and 2D/3D drawings, please go to the Products tab. Find your product in the list, click on its image to bring up product details, then see the respective Documents and Visuals tabs.

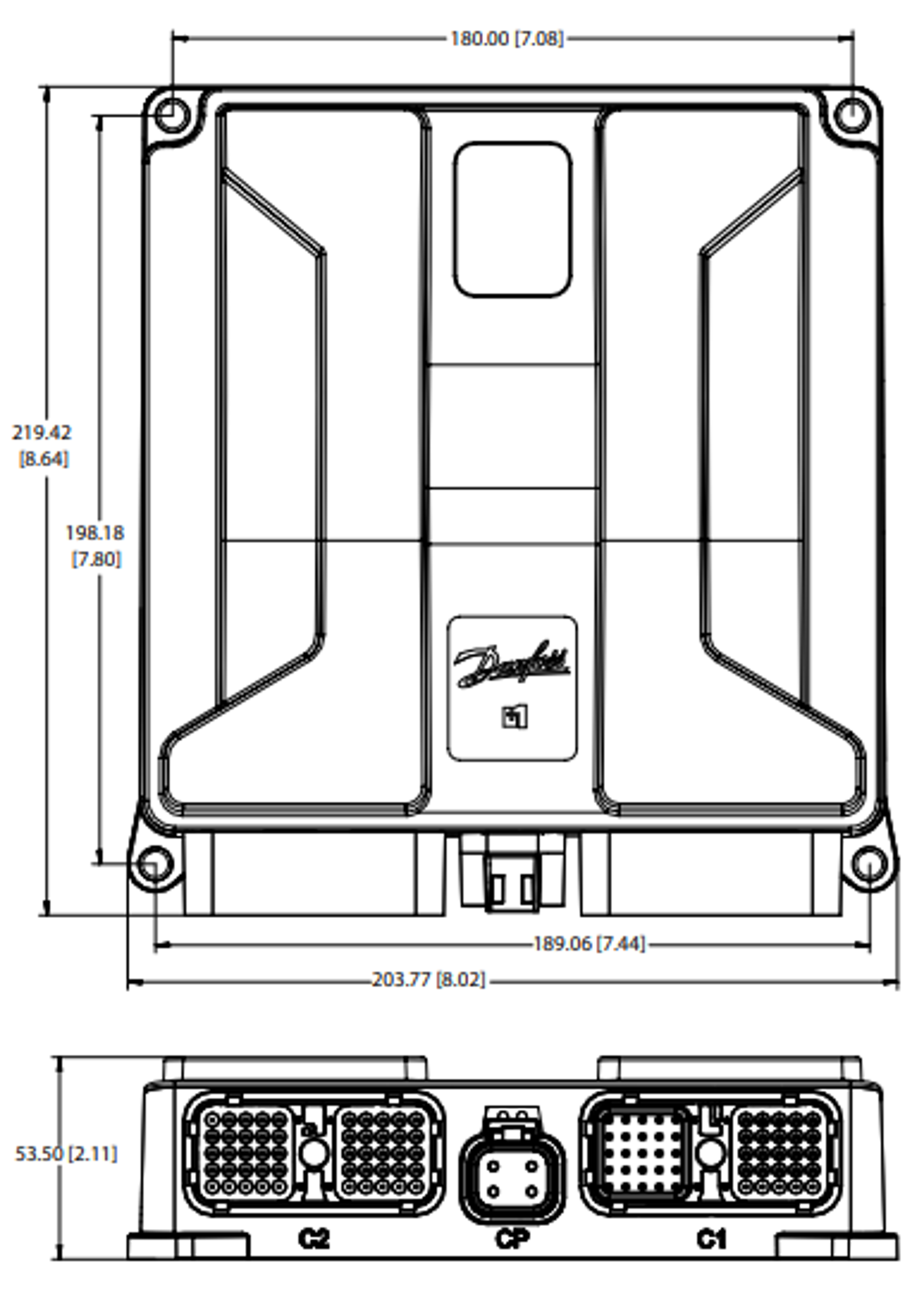

Dimensions in mm [in]
