PLUS+1® CS10 wireless gateway

The CS10 enables a CAN system to connect via Wi-Fi or Bluetooth to a smart mobile application or PC laptop for diagnosis and updates.

Features and benefits

  • PLUS+1® GUIDE programmable with service tools available
  • Flexible API for communication with third-party mobile apps
  • Wireless Wi-Fi 802.11 a/b/g/n at frequency bands 2.4 GHz and 5 GHz
  • Wireless CAN bridging over Wi-Fi or Bluetooth 5.0 at frequency band 2.4 GHz
  • Secure and encrypted data transfer
  • 256 MB of DDR3 SDRAM and 256 MB of NAND flash
For certificates and 2D/3D drawings, please go to the Products tab. Find your product in the list, click on its image to bring up product details, then see the respective Documents and Visuals tabs.

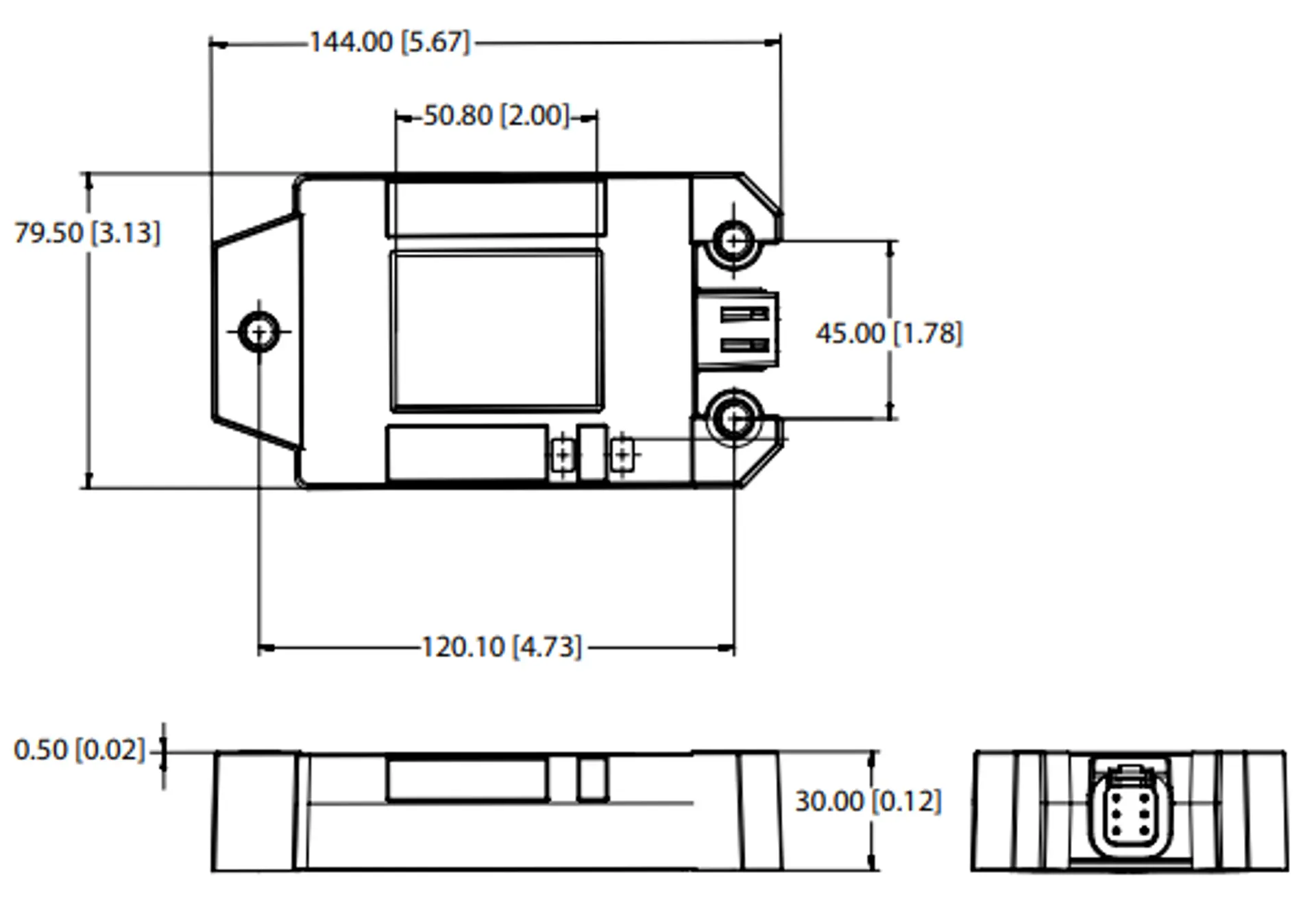

Dimensions in mm [in] and pin assignments

Screenshot 2023 06 16 3.09.12 Pm
