PLUS+1® CS100 cellular gateway, data, and services
The CS100 provides a high-quality, easy-to-install solution for the remote monitoring of mobile machines. It includes LTE Cat M1 and 2G cellular communications, GNSS positioning, two multifunction I/O ports, a power management port, and two CAN bus ports.
Features and benefits
- Easy-to-install enclosure and a plug-and-perform solution
- LTE Cat M1 and 2G cellular
- PLUS+1® Connect portal to configure machine and position data logging
- Internal cellular and GNSS antennas and a factory-installed SIM Card
- Two CAN buses 2.0A/B and two multifunction I/O
- IP 67 (with connector mated)
- GNSS position tracking

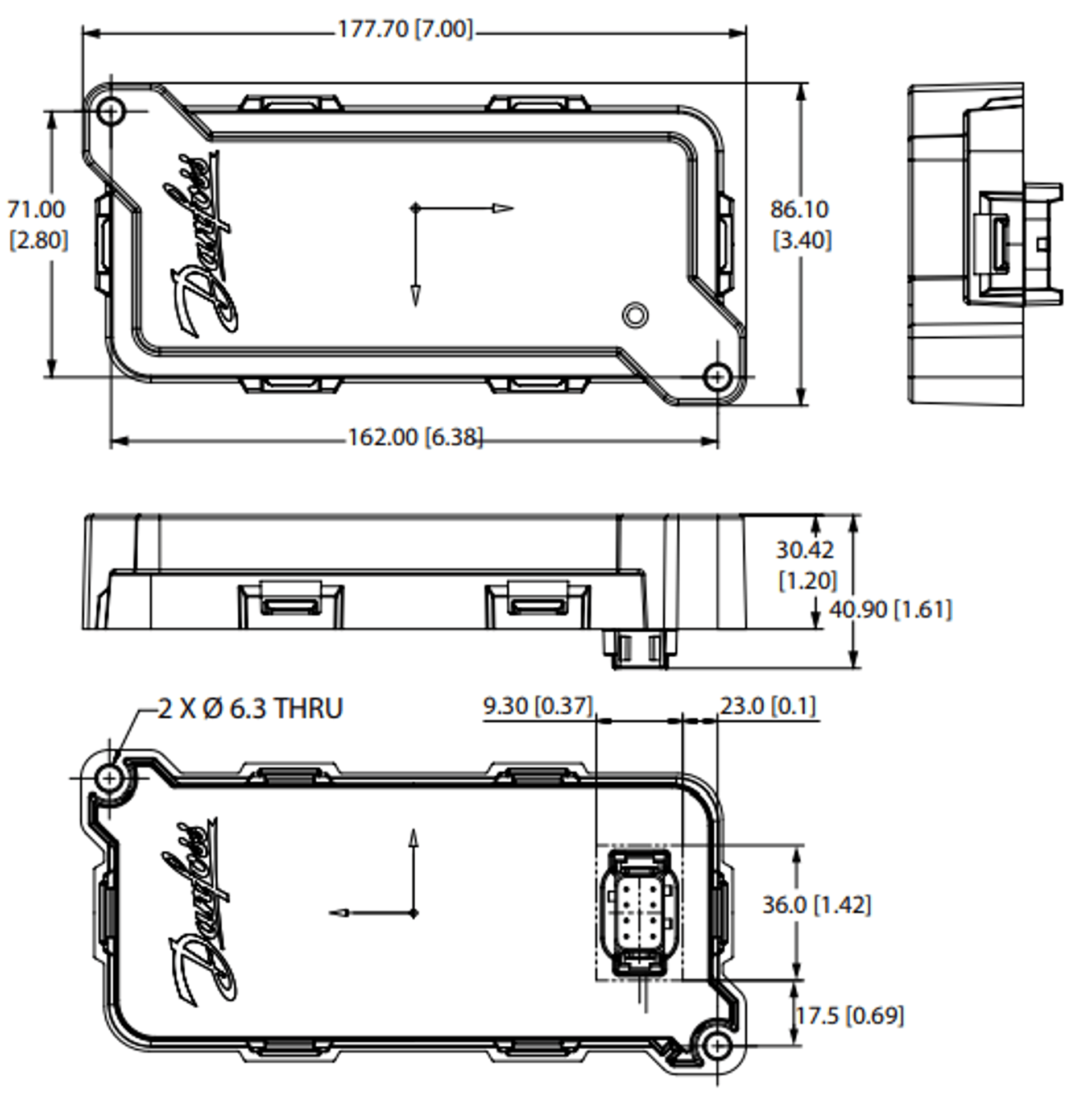

Dimensions in mm [in]
