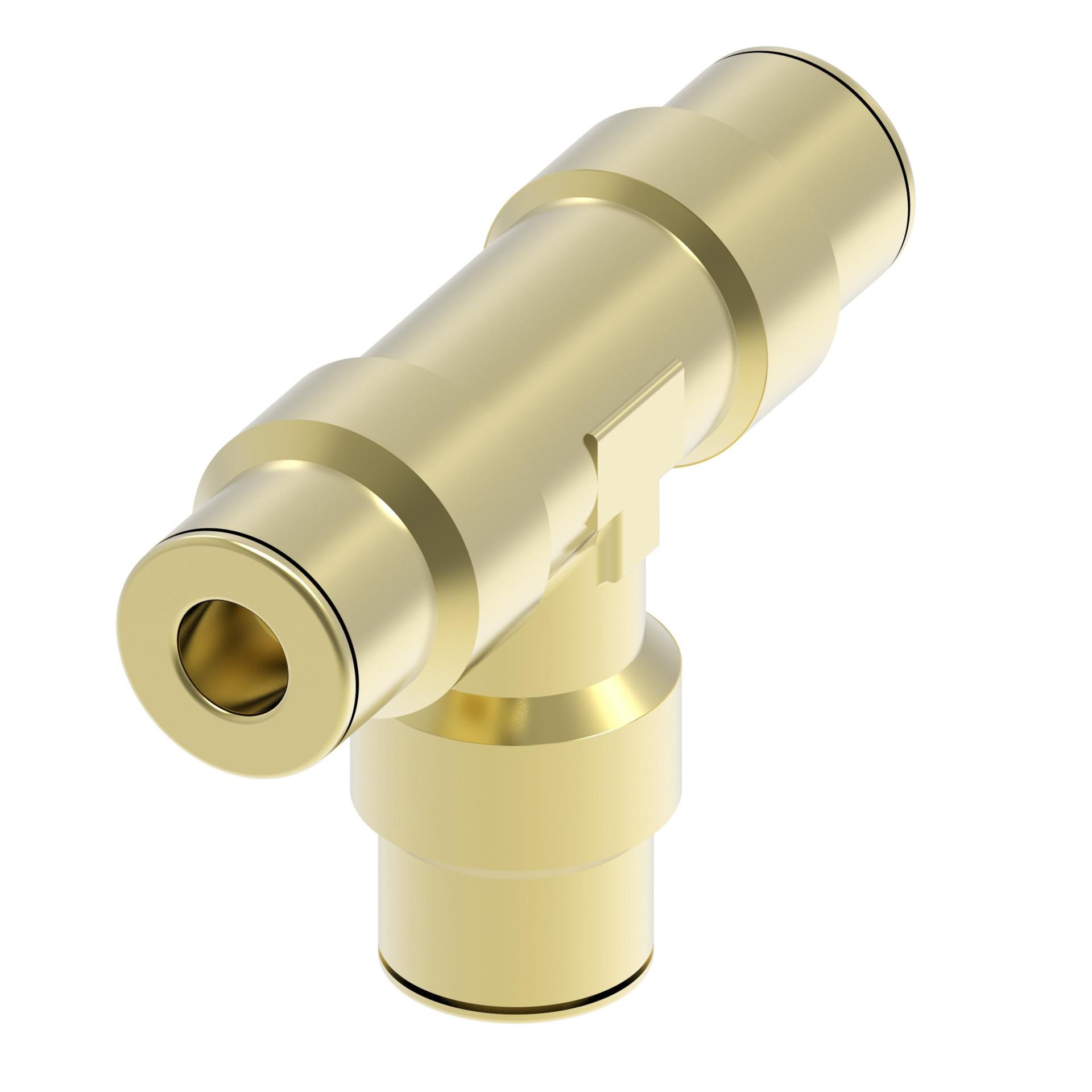

Tee/Y Adapters 1164X (RIGHT)

BRASS PUSH CONN-TEE SWVL,1164,04,04,04

1164X4

Catalog item:

1164X4

Tools

Product specifications

Characteristic
Value
Angle shapeTee
BrandDanfoss
Catalog Item1164X4
Drop dimension IN0.787
Drop dimension MM20.00
End size 1-4
End size 2-4
End size 3-4
End Type 1Male push to connect
End type 2Male push to connect
End type 3Male push to connect
Hex size 5 IN0.354
Hex size 5 MM9.0
Item typeAdapter-tee
Product height in1.037
Product height mm26.339
Product length in1.574
Product length mm39.979
Product materialBrass
Product serial name1164
Product width in0.500
Product width mm12.700
Thread sealantNo

General specifications

Characteristic
Value
EAN/UPC725975035740
