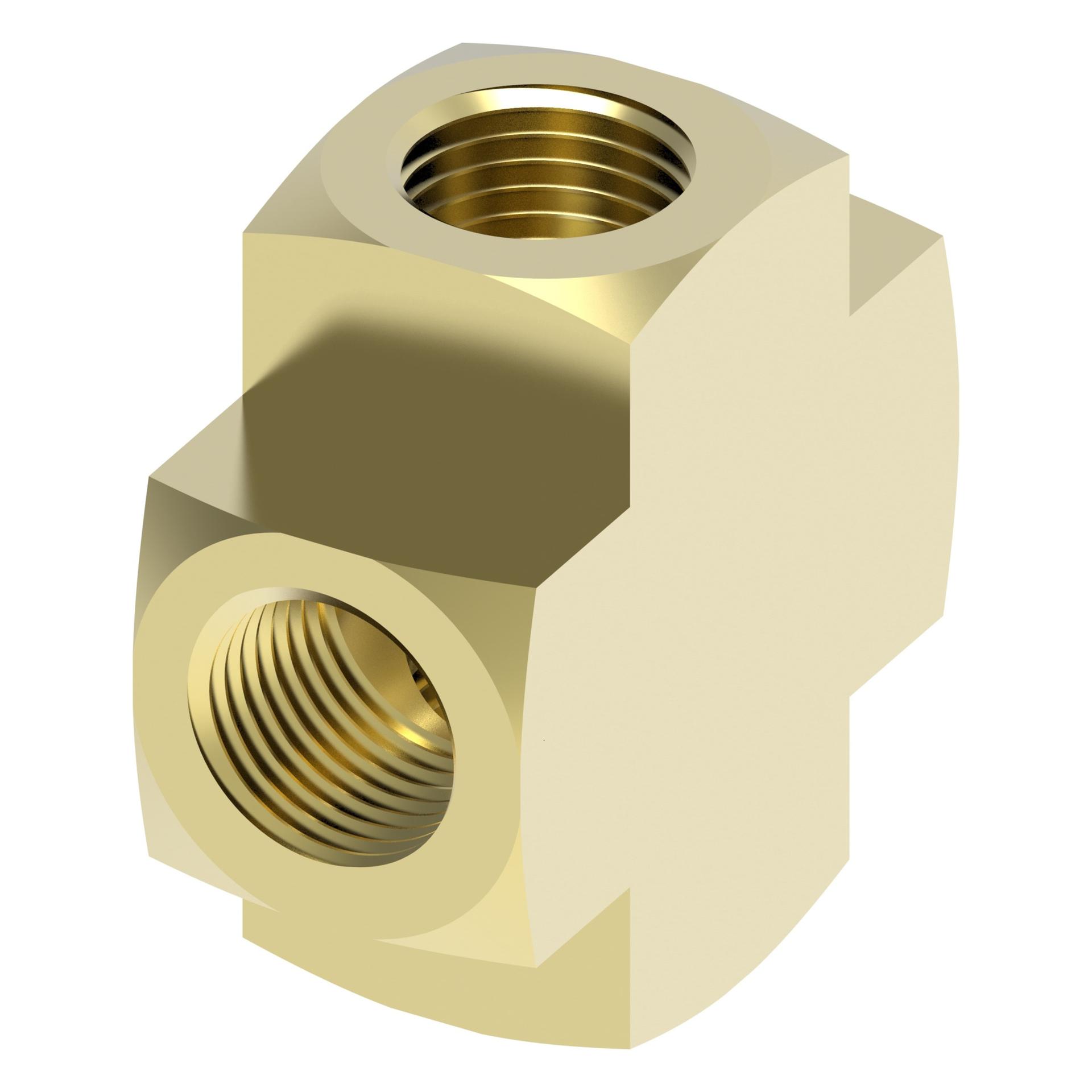

Cross Adapters 3950 (RIGHT)

BRASS PIPE-CROSS,3950,02,02,02,02

3950X2

Catalog item:

3950X2

Tools

Product specifications

Characteristic
Value
Angle shapeCross
BrandDanfoss
Catalog Item3950X2
Drop dimension IN0.500
Drop dimension MM12.70
End size 1-2
End size 2-2
End size 3-2
End size 4-2
End Type 1Female pipe (NPTF)
End type 2Female pipe (NPTF)
End type 3Female pipe (NPTF)
End type 4Female pipe (NPTF)
Hex size 1 IN0.688
Hex size 1 MM17.500
Item typeAdapter-cross
Product height in1.000
Product height mm25.400
Product length in1.000
Product length mm25.400
Product materialBrass
Product serial name3950
Product width in0.510
Product width mm12.950
Thread sealantYes
Thread size 11/8-27 NPTF
Thread size 21/8-27 NPTF
Thread size 31/8-27 NPTF
Thread size 41/8-27 NPTF
Working pressure bar83
Working pressure psi1200.00
Working temp max C121
Working temp max F250
Working temp min C-54
Working temp min F-65

General specifications

Characteristic
Value
EAN/UPC725975743546
