Product specifications
Characteristic | Value |
|---|---|
| Angle shape | Straight |
| Application | ConstructionGeneral industryGeneral pneumatics |
| Body size | 3/8 |
| Brand | Danfoss |
| End size 1 | -6 |
| End type 1 | Female pipe (NPTF) |
| Fluid compatibility | Compressed airGasLiquid |
| Hex size 1 IN | 0.810 |
| Hex size 1 MM | 20.574 |

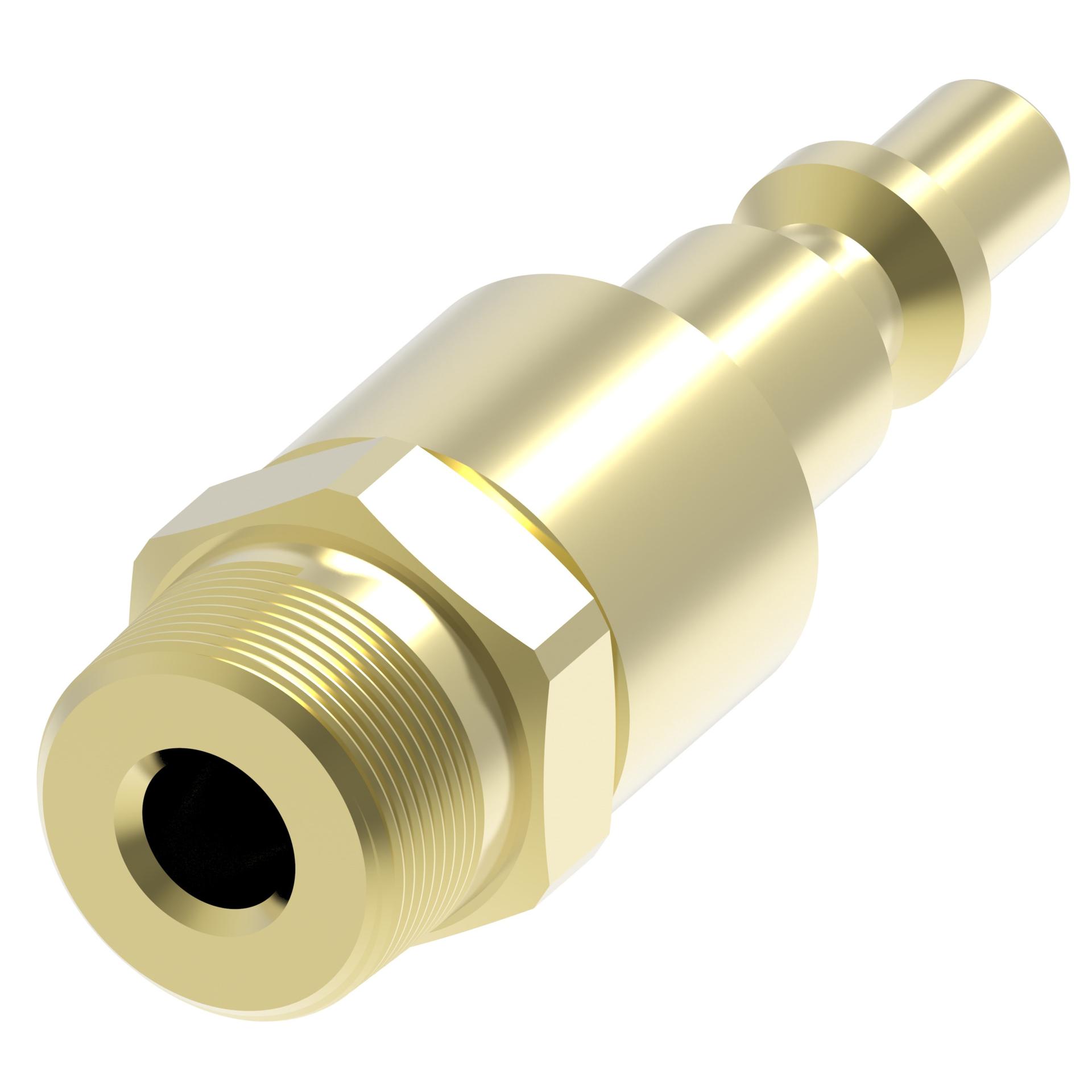

| Item type | Male half |
| Product material | Brass |
| Safety locking mechanism | Sleeve lock |
| Seal material | Nitrile (NBR) |
| Thread size 1 | 3/8-18 NPTF |
| Valve Type | 1 way |
| Working pressure max psi | 1000 |
| Working pressure max BAR | 69 |
| Working temperature max C | 121 |
| Working temperature max F | 250 |
| Working temperature min C | -40 |
| Working temperature min F | -40 |
General specifications
Characteristic | Value |
|---|---|
| EAN/UPC | 678146107152 |
