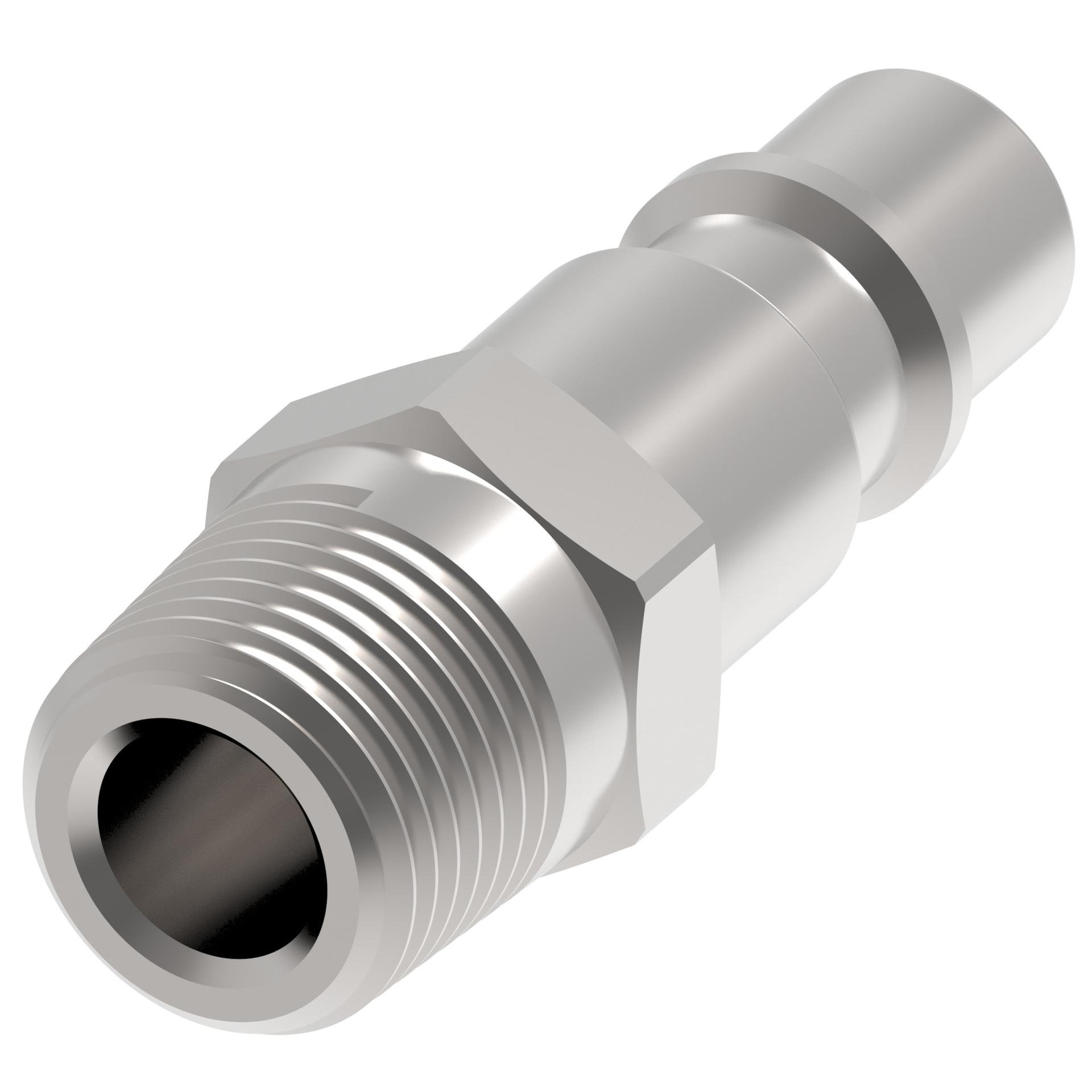

Product specifications

Characteristic
Value
Angle shapeStraight
Body size1/4
BrandDanfoss
Connection styleManual connect
End size 1-6
End size 2-6
End type 1Male push to connect
End type 2Male pipe (NPT)
Finish platingZinc
Flow rate gpm420.00
Flow rate lpm1589.87
Item typeMale half
Latch typePush/pull
Product materialCarbon steel
Seal materialNitrile (NBR)
Sub brandHansen
Thread size 13/8-18 NPT
Valve Type2 way
Working pressure max psi290
Working pressure max bar20
Working temperature max C100
Working temperature max F212
Working temperature min C-20
Working temperature min F-4

General specifications

Characteristic
Value
EAN/UPC678146109439
