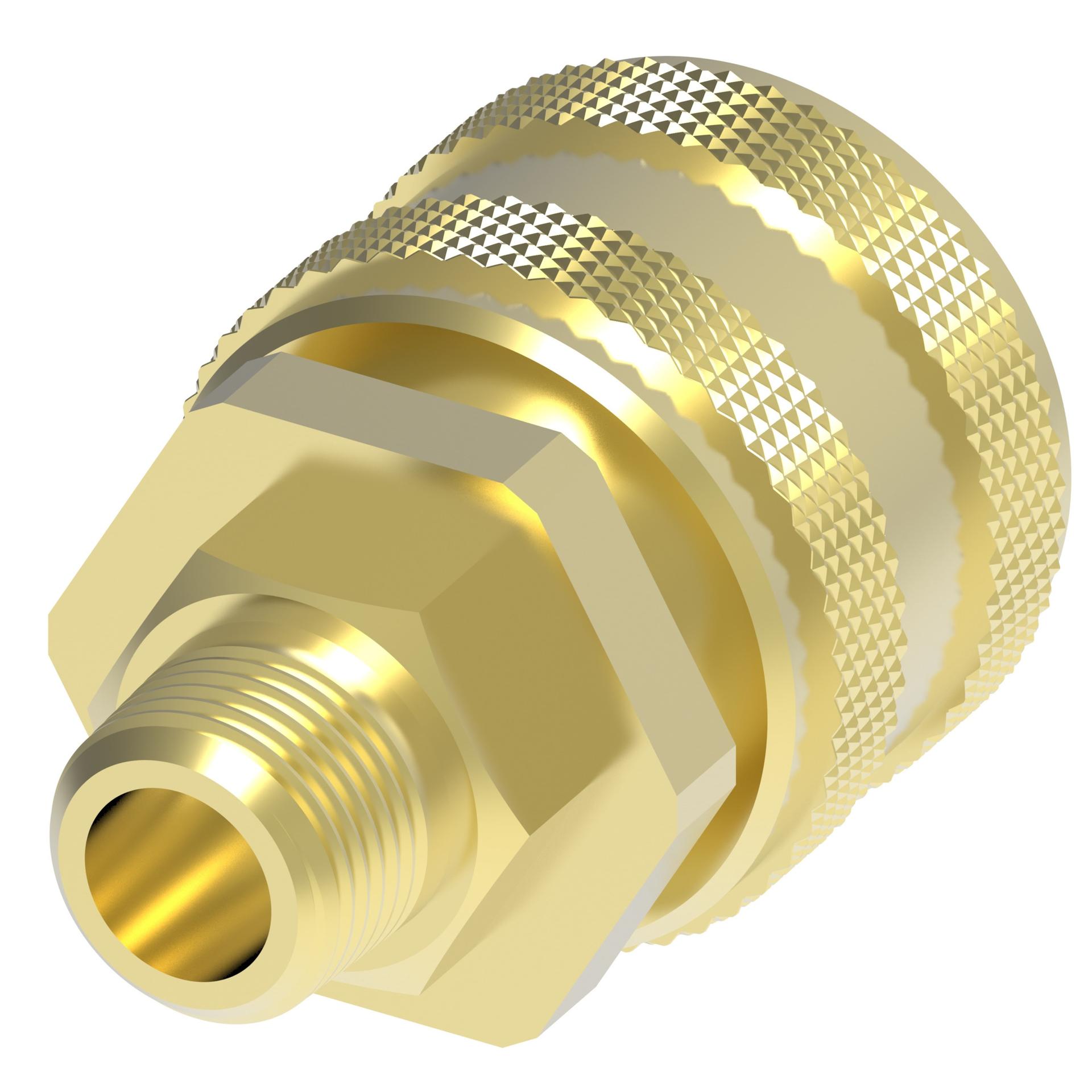

Product specifications
Characteristic | Value | Description |
|---|---|---|
| Angle shape | STRAIGHT | Straight |
| Application | BREATHING AIRCONSTRUCTIONGENERAL PNEUMATICSNITROUS OXIDESHIPYARDSWELDING | Breathing airConstructionGeneral pneumaticsNitrous oxideShipyardsWelding |
| Body size | 1/4 | 1/4 |
| Brand | DANFOSS | Danfoss |
| Burst pressure min bar | 414 | |
| Burst pressure min psi | 6000 | |
| Catalog Item | GR603143 | |
| Connection style | MANUAL CONNECT | Manual connect |
| End size 2 | -4 | -4 |
| End Type 1 | FEMALE PUSH TO CONNECT | Female Push to Connect |
| End type 2 | MALE PIPE (NPTF) | Male pipe (NPTF) |
| Flow rate GPM | 157.00 | |
| Flow rate LPM | 594.31 | |
| Fluid compatibility | COMPRESSED AIR AND OTHER GASESOXYACETYLENE SERVICE | Compressed air and other gasesOxyacetylene service |
| Hex size 1 IN | 0.690 | |
| Hex size 1 MM | 17.5 | |
| Item type | FEMALE HALF | Female half |
| Latch type | PUSH/PULL | Push/pull |
| Product length in | 2.030 | |
| Product length mm | 51.562 | |
| Product material | BRASS | Brass |
| Safety locking mechanism | SLEEVE LOCK | Sleeve lock |
| Seal material | FLUOROCARBON (FKM) | Fluorocarbon (FKM) |
| Sub brand | HANSEN | Hansen |
| Valve type | 2 WAY | 2 way |
| Working pressure max psi | 1500 | |
| Working pressure max bar | 103 | |
| Working temperature max C | 121 | |
| Working temperature max F | 250 | |
| Working temperature min C | -40 | |
| Working temperature min F | -40 |
General specifications
Characteristic | Value |
|---|---|
| EAN/UPC | 678146164223 |
