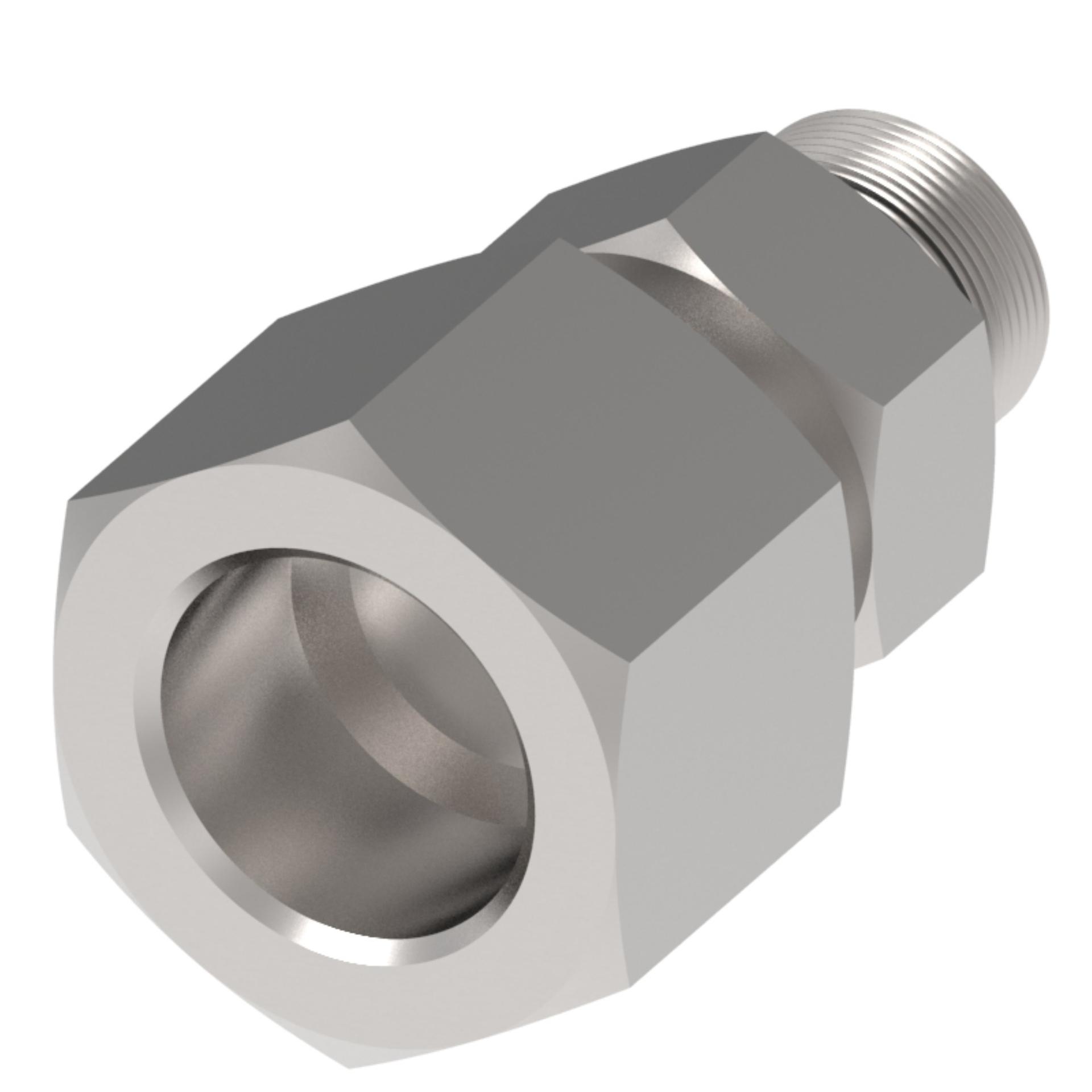

Danfoss Ermeto Straight Thread O-ring Connector 7315X10 [RIGHT]

Steel Straight Fittings STEEL STRAIGHT F

7315X10

Tools

Product specifications

Characteristic
Value
BrandDanfoss
End type 1Male ORB ISO 11926-3
Finish platingDura-Kote
Hex size 1 IN1.000
Hex size 1 MM25.4
Hex size 2 IN1.000
Hex size 2 MM25.4
Product materialCarbon steel
Thread sealantNo
Thread size 17/8-14 UNF
Thread size 23/4-16 UNF
Tube outside diameter 1 IN0.480
Tube outside diameter 1 MM12.2
Tube outside diameter 2 IN0.420
Tube outside diameter 2 MM10.7

General specifications

Characteristic
Value
EAN/UPC725975052198
