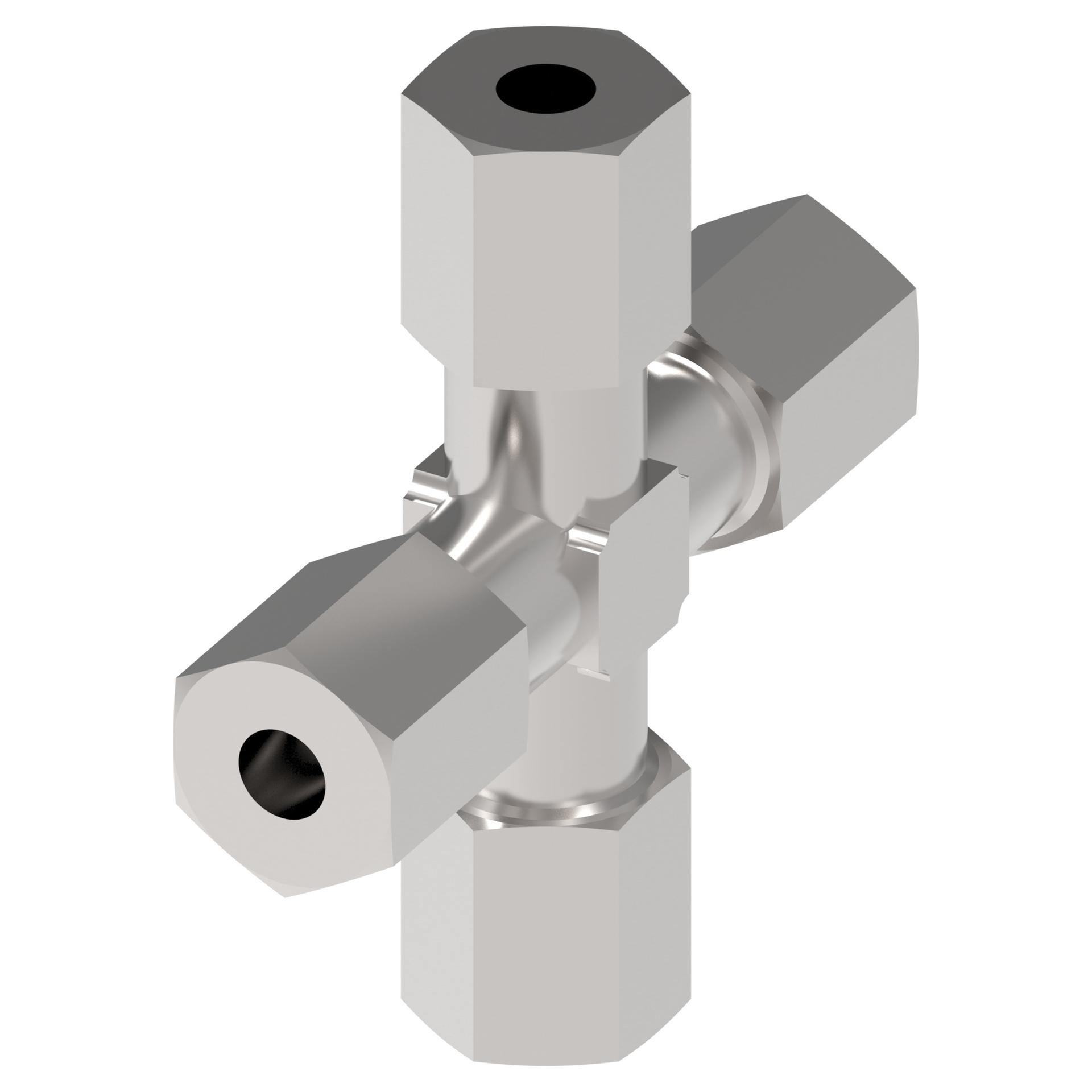

Cross Adapters WAL038624 (RIGHT)

TUBE FTG, S-KV 8 LL A4GS

WAL038627

Model code: S-KV 8 LL A4GS

Tools

Product specifications

Characteristic
Value
Angle shapeCross
BrandDanfoss
Catalog ItemWAL038627
Complete connectorYes
End size 18LL
End size 28LL
End size 38LL
End type 124 deg. tube port LL duty
End type 224 deg. tube port LL duty
End type 324 deg. tube port LL duty
Finish platingGuardian Seal
Hex size 1 MM12.000
Hex size 2 MM14.000
Hex size 3 MM14.000
Hex size 4 MM14.000
Hex size 5 MM14.000
Item typeTube to tube connector
Model Code 1S-KV 8 LL A4GS
Product materialCarbon steel
Product serial nameS-KV …
Seal materialFluorocarbon (FKM)
Sub brandWaltech
Thread size 1M12x1
Thread size 2M12x1
Thread size 3M12x1
Thread size 4M12x1
Tube outside diameter 1 MM8.000
Tube outside diameter 2 MM8.000
Tube outside diameter 3 MM8.000
Tube outside diameter 4 MM8.000
Working pressure bar100.00
