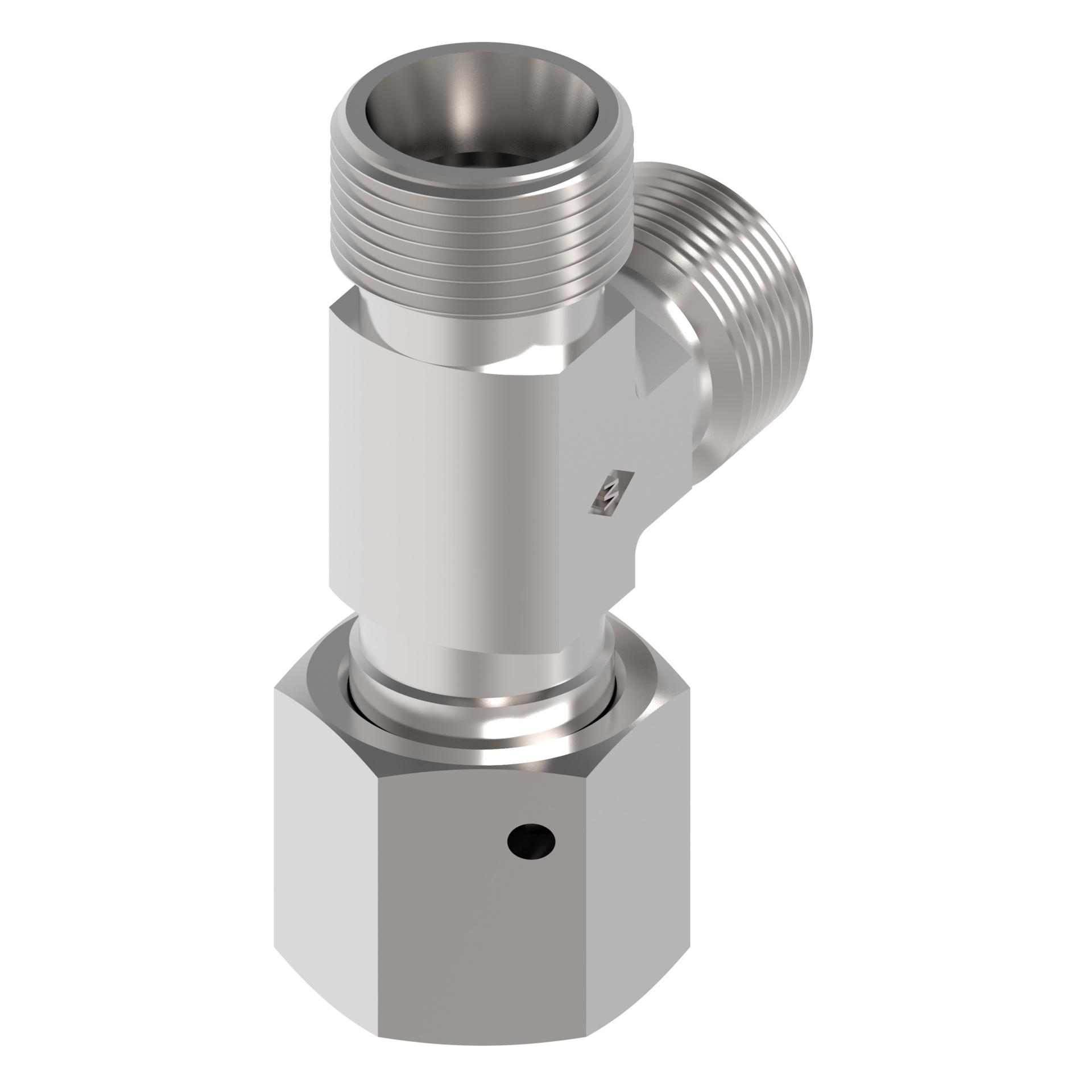

Tee-Y adapter WAL063917 (RIGHT)

TUBE FTG, ELSD 6 L-VI-1.4571

WAL602804

Model code: ELSD 6 L-VI-1.4571

Tools

Product specifications

Characteristic
Value
Angle shapeTee
BrandDanfoss
Catalog ItemWAL602804
Complete connectorNo
End size 16L
End size 26L
End size 36L
End type 124 deg. DKO swivel light duty
End type 224 deg. tube port light duty
End type 324 deg. tube port light duty
Finish platingGuardian Seal
Hex size 1 MM12.000
Hex size 2 MM17.000
Hex size 3 MM12.0
Item typeAdjustable connector
Model Code 1ELSD 6 L-VI-1.4571
Product height in1.063
Product height mm27.000
Product length in1.850
Product length mm47.000
Product material316Ti Stainless steel
Product serial nameELSD …
Product width in0.669
Product width mm17.000
Seal materialFluorocarbon (FKM)
Sub brandWaltech
Thread size 1M12x1.5
Thread size 2M12x1.5
Thread size 3M12x1.5
Tube outside diameter 1 MM6.0
Tube outside diameter 2 MM6.0
Tube outside diameter 3 MM6.0
Working pressure BAR500
