Product specifications
Characteristic | Value |
|---|---|

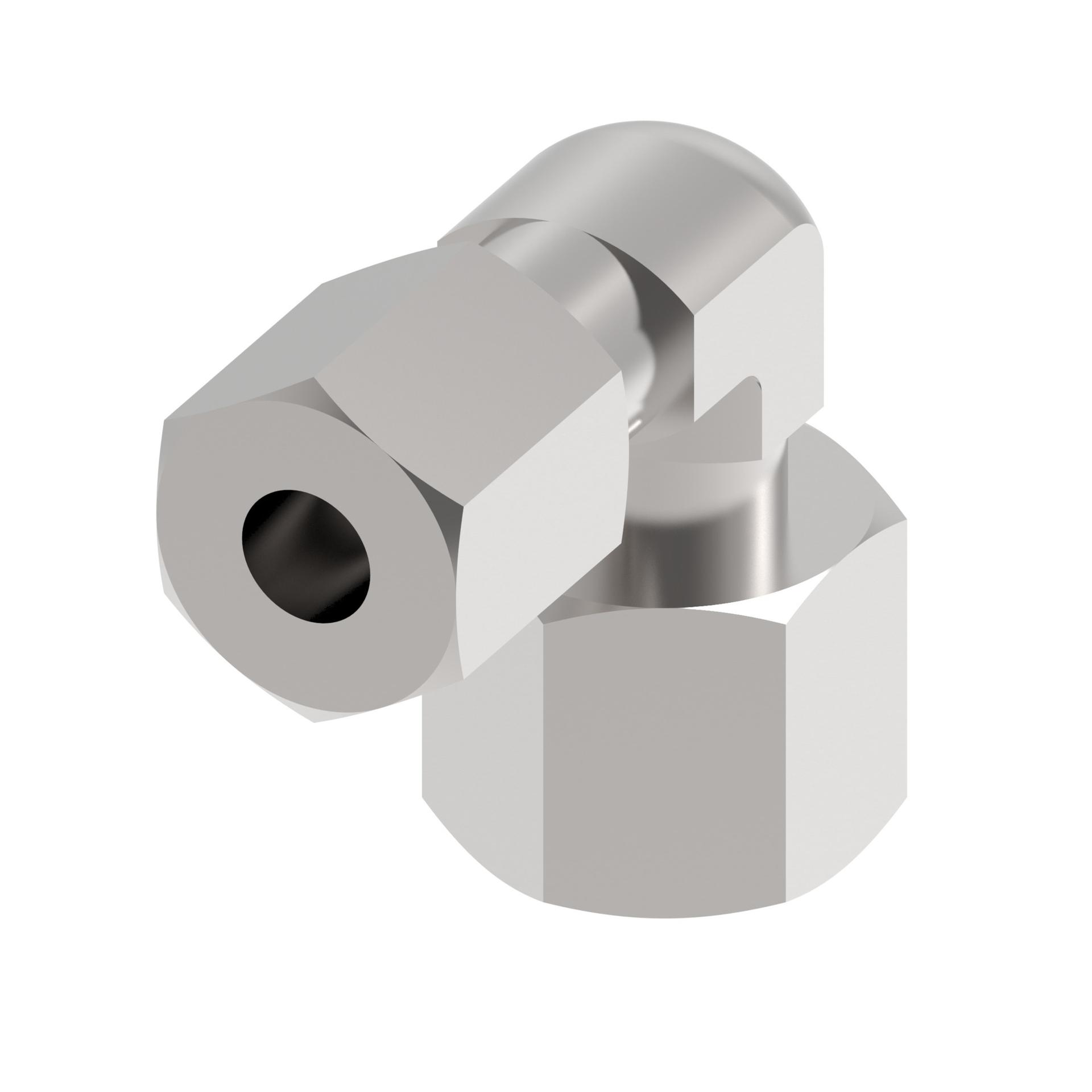

| Angle shape | Elbow 90 degree |
| Brand | Danfoss |
| Catalog Item | WAL620340 |
| Complete connector | Yes |
| End size 1 | 15L |
| End size 2 | 15L |
| End type 1 | Millimetrique standpipe |
| End type 2 | 24 deg. tube port light duty |
| Finish plating | Guardian Seal |
| Hex size 1 MM | 19.000 |
| Hex size 2 MM | 27.000 |
| Hex size 3 MM | 27.000 |
| Item type | Adjustable connector |
| Model Code 1 | P-EWV 15 L-SV-1.4571 |
| Product height in | 1.949 |
| Product height mm | 49.500 |
| Product length in | 1.811 |
| Product length mm | 46.000 |
| Product material | 316Ti Stainless steel |
| Product serial name | P-EWV … -SV |
| Product width in | 1.063 |
| Product width mm | 27.000 |
| Sub brand | Waltech |
| Thread size 1 | M22x1.5 |
| Thread size 2 | M22x1.5 |
| Tube outside diameter 1 MM | 15.000 |
| Tube outside diameter 2 MM | 15.000 |
| Working pressure bar | 400.00 |
| Working temperature max C | 120 |
| Working temperature min C | -40 |
