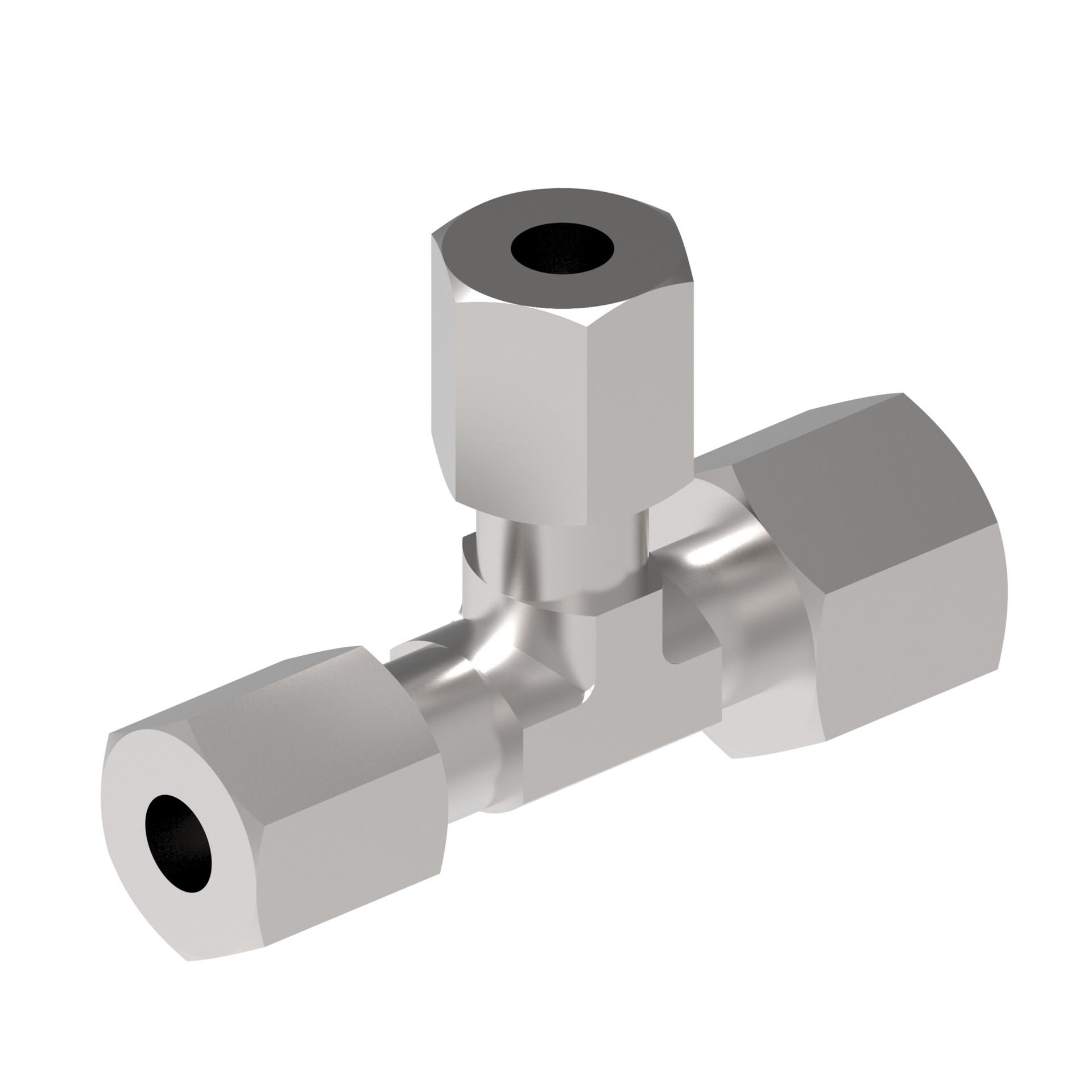

Product specifications
Characteristic | Value |
|---|---|
| Angle shape | Tee |
| Brand | Danfoss |
| Catalog Item | WAL620530 |
| Complete connector | Yes |
| End size 1 | 18L |
| End size 2 | 18L |
| End type 1 | Millimetrique standpipe |
| End type 2 | 24 deg. tube port light duty |
| Finish plating | Guardian Seal |
| Hex size 1 MM | 24.000 |
| Hex size 2 MM | 32.000 |
| Hex size 3 MM | 32.000 |
| Item type | Adjustable connector |
| Model Code 1 | P-ELV 18 L-SV-1.4571 |
| Product height in | 2.205 |
| Product height mm | 56.000 |
| Product length in | 3.150 |
| Product length mm | 80.000 |
| Product material | 316Ti Stainless steel |
| Product serial name | P-ELV … |
| Product width in | 1.260 |
| Product width mm | 32.000 |
| Sub brand | Waltech |
| Thread size 1 | M26x1.5 |
| Thread size 2 | M26x1.5 |
| Tube outside diameter 1 MM | 18.000 |
| Tube outside diameter 2 MM | 18.000 |
| Tube outside diameter 3 MM | 18.000 |
| Working pressure bar | 400.00 |
