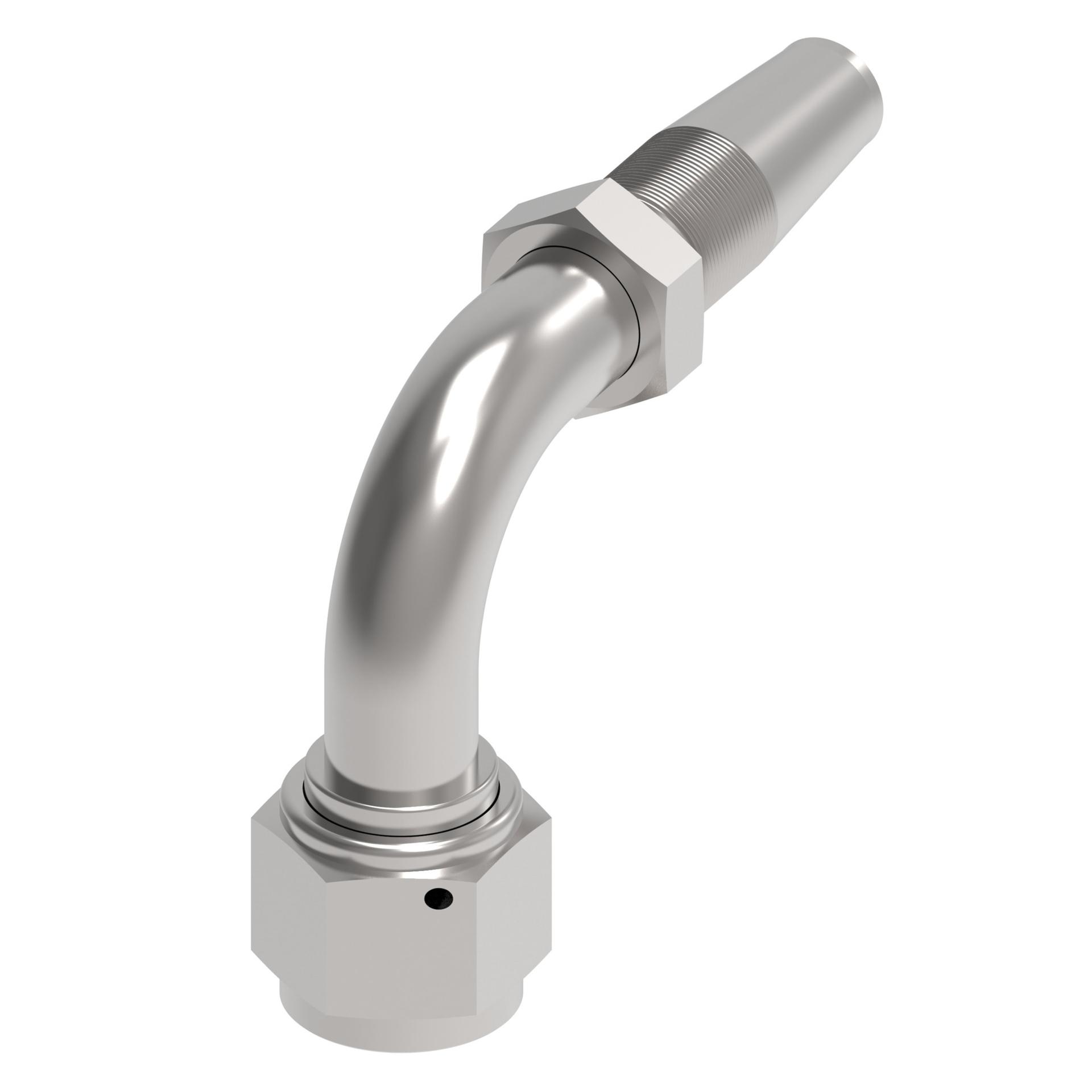

Product specifications
Characteristic | Value |
|---|---|
| A dimension IN | 3.524 |
| A dimension MM | 89.500 |
| Angle shape | 90 Degree |
| Brand | Aeroquip by Danfoss |
| Compatible hose ID IN | 0.500 |
| Compatible hose ID MM | 15.748 |
| Compatible hoses | GA494 |
| Construction Style | Reusable |
| Drop dimension IN | 2.008 |
| Drop dimension MM | 51.00 |
| End size 1 | -10 |
| End type 1 | Female 37 degree swivel |
| Finish plating | Dura-Kote |
| Hex size 1 IN | 1.063 |
| Hex size 1 MM | 27.000 |
| Hex size 2 IN | 0.866 |
| Hex size 2 MM | 22.000 |
| Hose cut off factor IN | 2.295 |
| Hose cut off factor MM | 58.300 |
| Hose size | -10 |
| Inside diameter IN | 0.390 |
| Inside diameter MM | 9.900 |
| Product height in | 2.510 |
| Product height mm | 63.754 |
| Product length in | 4.060 |
| Product length mm | 103.124 |
| Product material | Carbon steel |
| Product width in | 1.230 |
| Product width mm | 31.242 mm |
| Thread sealant | No |
| Thread size 1 | 7/8-14 UNF |
| Working temperature max C | 121 |
| Working temperature max F | 250 |
| Working temperature min F | -40 |
