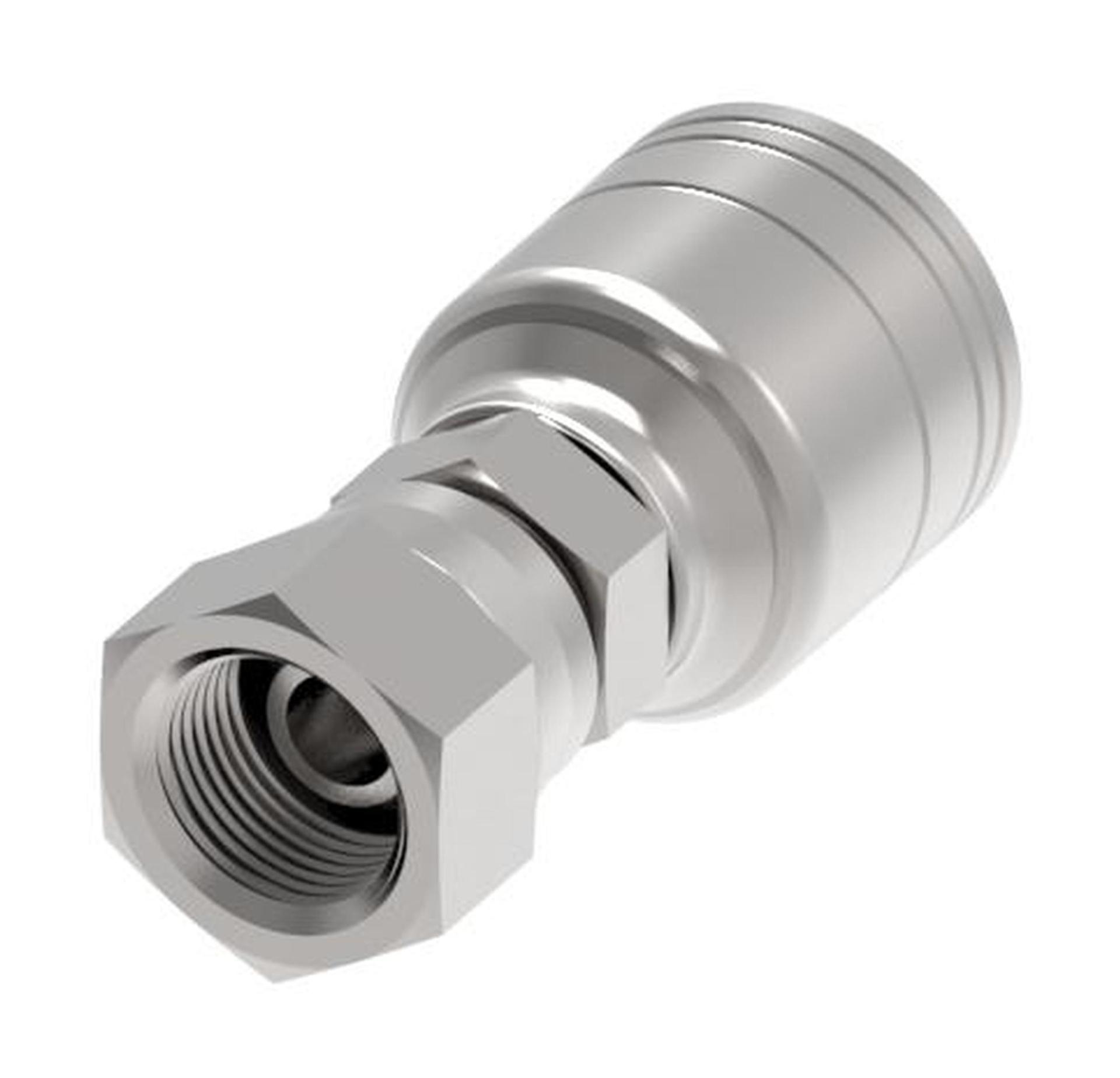

Hose Fittings 1AA4SP4 [RIGHT]

Ftng (perm), NPSM STR FEM SWIVEL

08Z-058

Tools

Product specifications

Characteristic
Value
Angle shapeStraight
BrandWeatherhead by Danfoss
Compatible hose ID IN0.500
Compatible hose ID MM12.700
Compatible tube OD IN0.50
Compatible tube OD MM12.700
CompliancesSAE J1176
Construction StyleCrimp
End size 1-8
End type 1Female pipe swivel (NPSM)
Finish platingDura-Kote
Hex size 1 IN1.000
Hex size 1 MM25.400
Hex size 2 IN0.880
Hex size 2 MM22.352
Hose cut off factor IN1.410
Hose cut off factor MM35.814
Hose size-8
Inside diameter IN0.380
Inside diameter MM9.652
Product materialCarbon steel
Thread sealantNo
Tube OD 1 IN0.500
Tube OD 1 MM12.700

General specifications

Characteristic
Value
EAN/UPC639789320513
