Hose Fittings 1AA4FS4 [RIGHT]

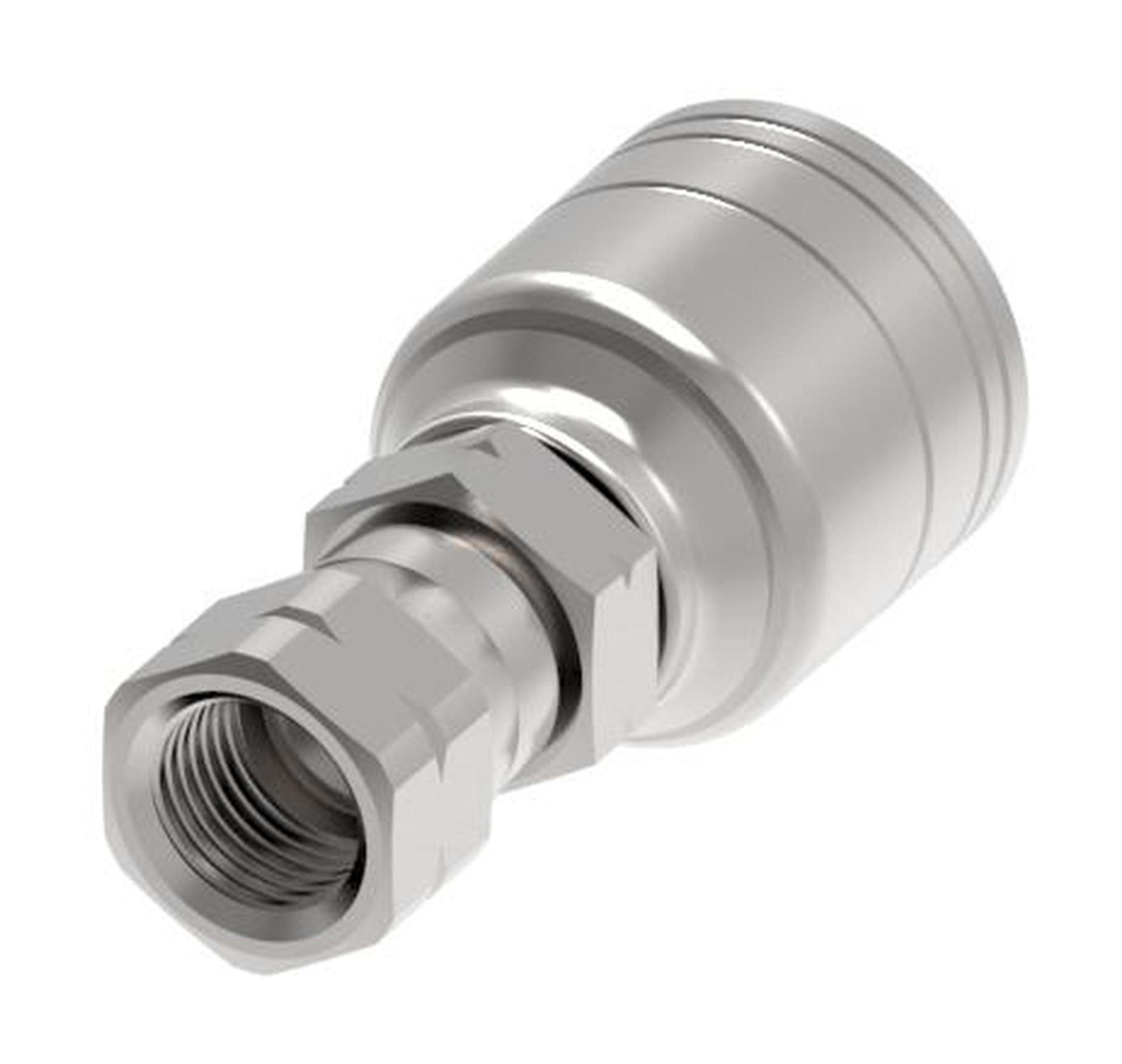

Hose End (perm) 1S/1R Str F SAE45 Swivel

08Z-410

Tools

Product specifications

Characteristic
Value
Angle shapeStraight
BrandWeatherhead by Danfoss
Compatible hose ID IN0.500
Compatible hose ID MM12.700
CompliancesSAE J1176
Construction StyleCrimp
End size 1-10
End type 1Female 37 degree swivel
Finish platingDura-Kote
Hex size 1 IN1.000
Hex size 1 MM25.400
Hex size 2 IN0.813
Hex size 2 MM20.638
Hose cut off factor IN1.470
Hose cut off factor MM37.338
Hose size-8
Inside diameter IN0.380
Inside diameter MM9.652
Product materialCarbon steel
Thread sealantNo

General specifications

Characteristic
Value
EAN/UPC639789293060
