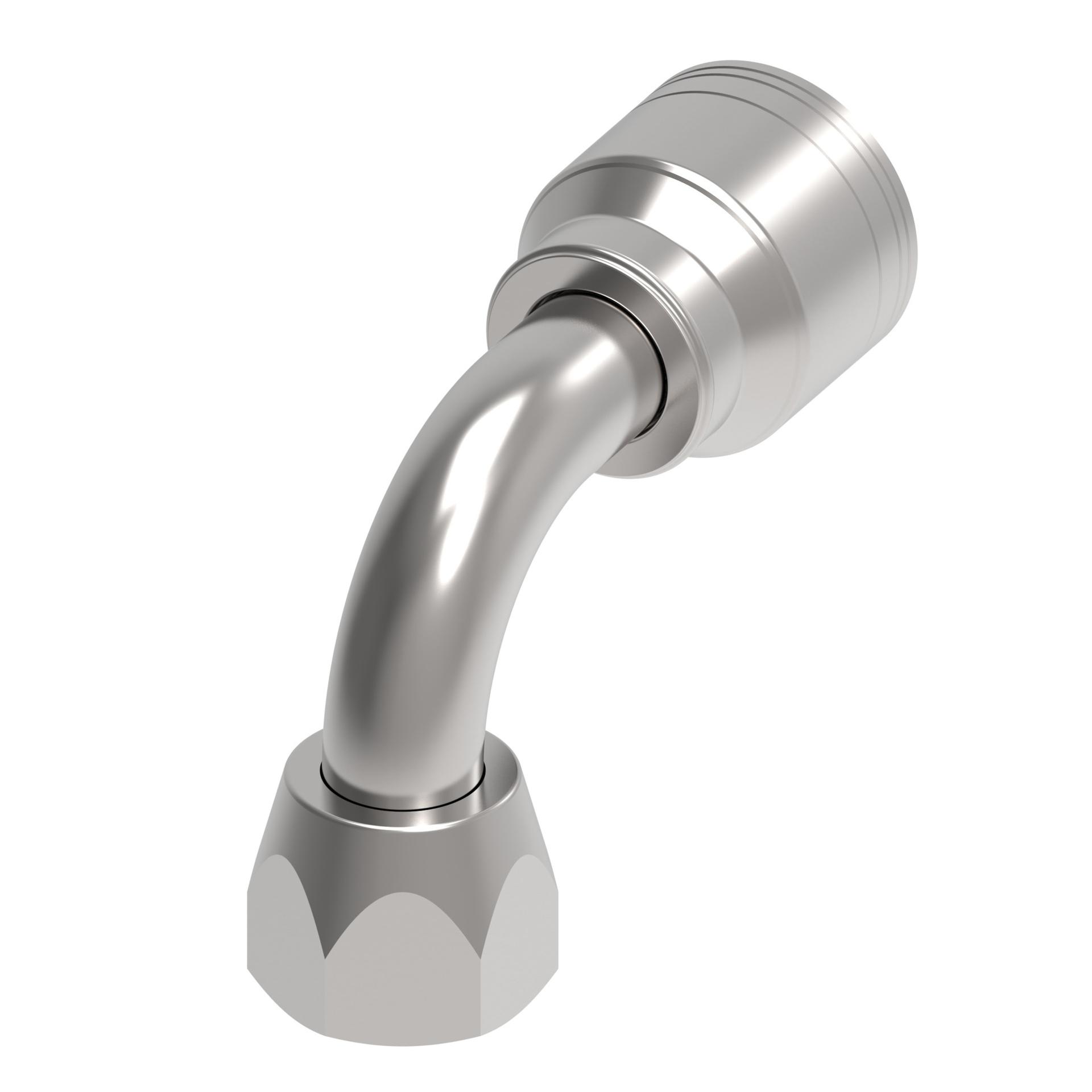

Hose Fittings 1AA12FJB12 [RIGHT]

Ftng (perm) R2 Female JIC 90 Deg Elbow

08Z-668-TZ

Tools

Product specifications

Characteristic
Value
Angle shape90 Degree
BrandWeatherhead by Danfoss
Compatible hose ID IN0.500
Compatible hose ID MM12.700
Compatible tube OD IN0.50
Compatible tube OD MM12.700
Construction StyleCrimp
Drop dimension IN1
Drop dimension MM28
End size 1-12
End type 1Female 37 degree swivel
Hex size 1 IN0.875
Hex size 1 MM22.225
Hose cut off factor IN1.420
Hose cut off factor MM36.068
Hose size-8
Inside diameter IN0.370
Inside diameter MM9.398
Product materialCarbon steel
Thread sealantNo
Tube OD 1 IN0.500
Tube OD 1 MM12.700

General specifications

Characteristic
Value
EAN/UPC810075334111
