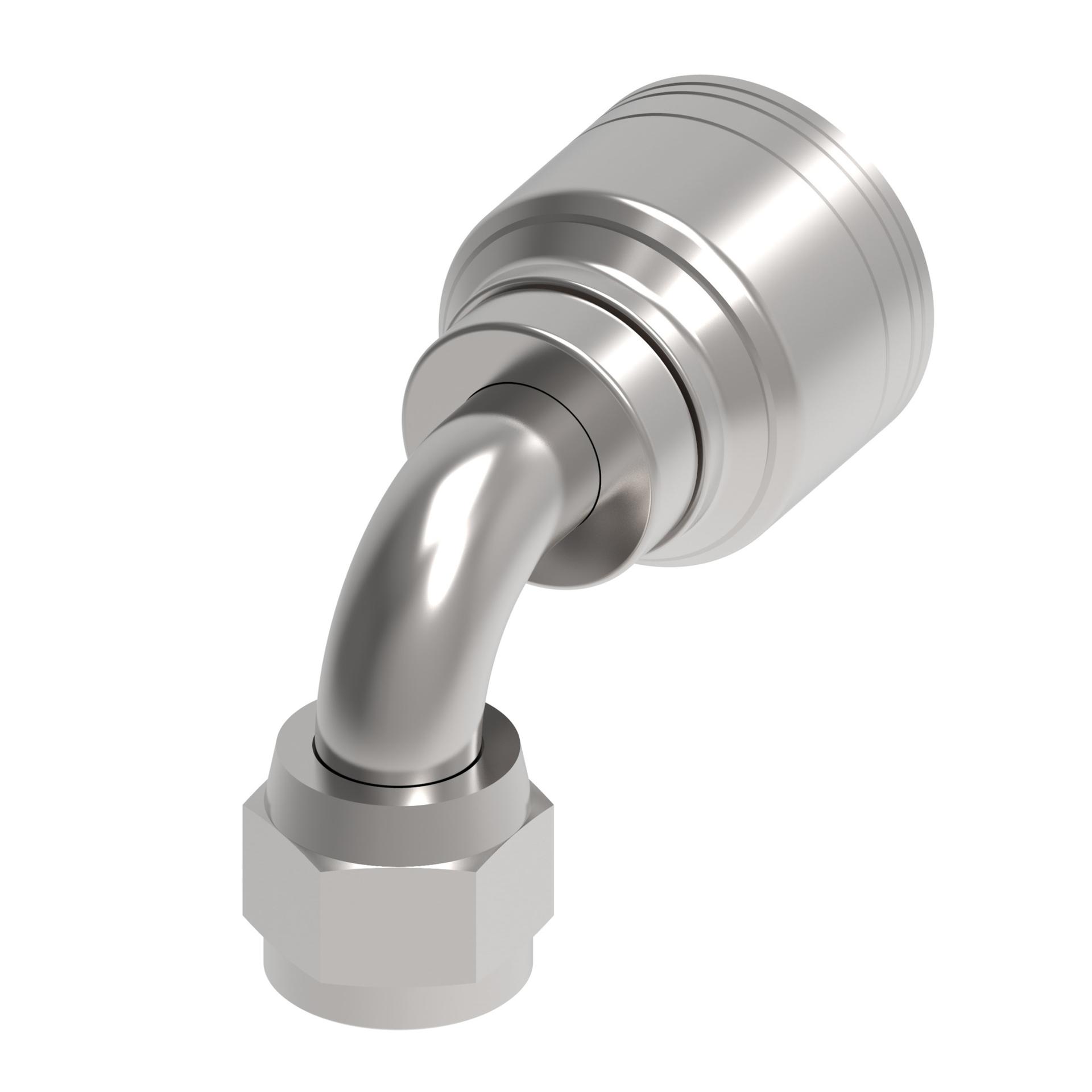

Hose Fittings 1AA10FJB12 [RIGHT]

Hose End (perm) 1S/1R 90 D F SAE 37 Sw

08Z-670

Tools

Product specifications

Characteristic
Value
Angle shape90 Degree
BrandWeatherhead by Danfoss
Compatible hose ID IN0.500
Compatible hose ID MM12.700
Compatible tube OD IN0.63
Compatible tube OD MM15.875
CompliancesSAE J1176
Construction StyleCrimp
Drop dimension IN1.000
Drop dimension MM30.00
End size 1-10
End type 1Female 37 degree swivel
Finish platingDura-Kote
Hex size 1 IN1.000
Hex size 1 MM25.400
Hose cut off factor IN1.610
Hose cut off factor MM40.894
Hose size-8
Inside diameter IN0.3800
Inside diameter MM9.6520
Product materialCarbon steel
Thread sealantNo
Tube OD 1 IN0.625
Tube OD 1 MM15.875

General specifications

Characteristic
Value
EAN/UPC639789293152
