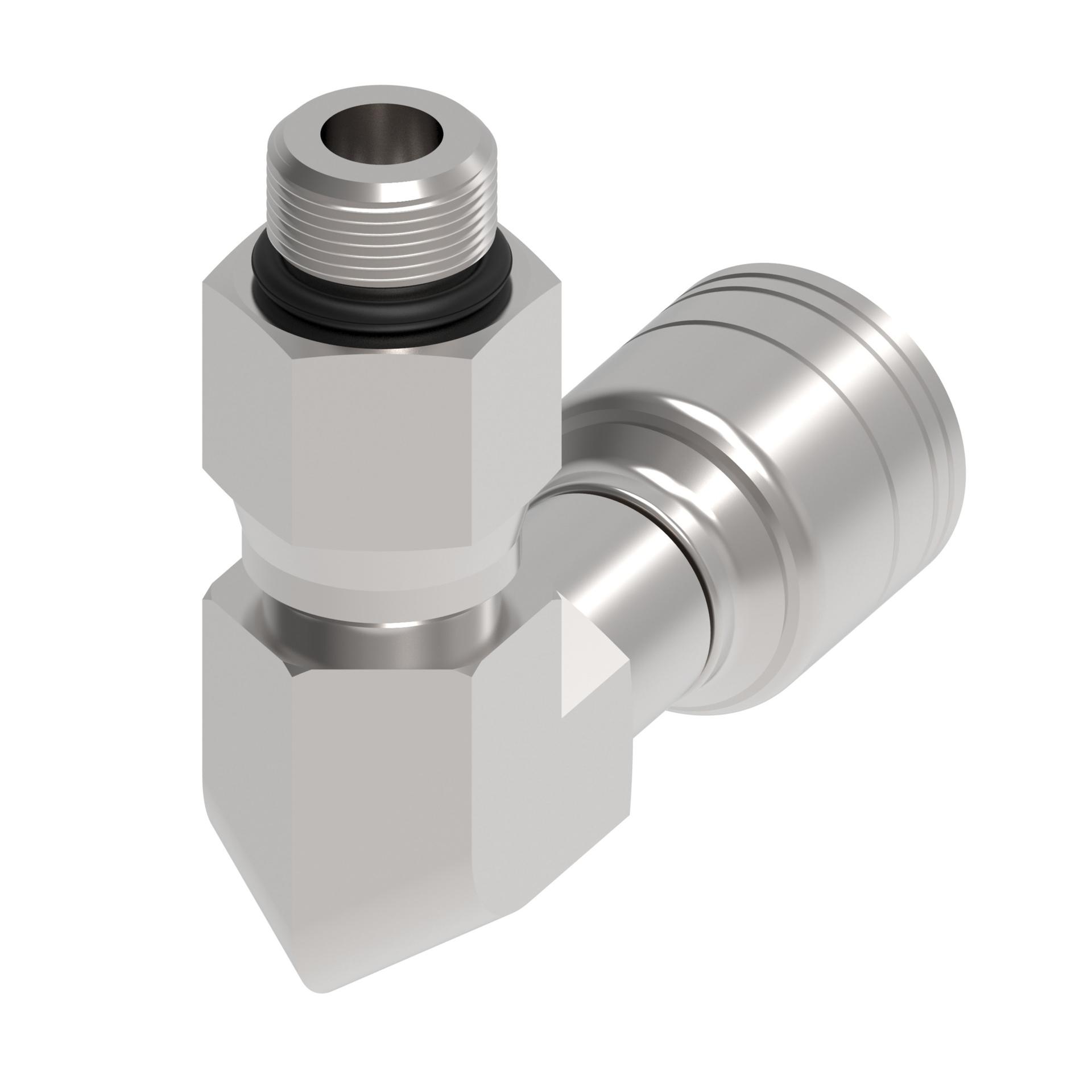

Hose Fittings 1AA6SBB4 [RIGHT]

Ftng (perm), SAE ORB

08Z-R70-BG

Tools

Product specifications

Characteristic
Value
Angle shape90 Degree
BrandWeatherhead by Danfoss
Compatible hose ID IN0.500
Compatible hose ID MM12.700
CompliancesSAE J1176
Construction StyleCrimp
Drop dimension IN2.000
Drop dimension MM50.0
End Type 1Male ORB ISO 11926-3
End size 1-10
Finish platingDura-Kote
Hex size 1 IN1.000
Hex size 1 MM25.4
Hex size 2 IN0.750
Hex size 2 MM19.1
Hose cut off factor IN1.510
Hose cut off factor MM38.354
Hose size-8
Inside diameter IN0.380
Inside diameter MM9.652
Product materialCarbon steel
Thread sealantNo

General specifications

Characteristic
Value
EAN/UPC810075336894
