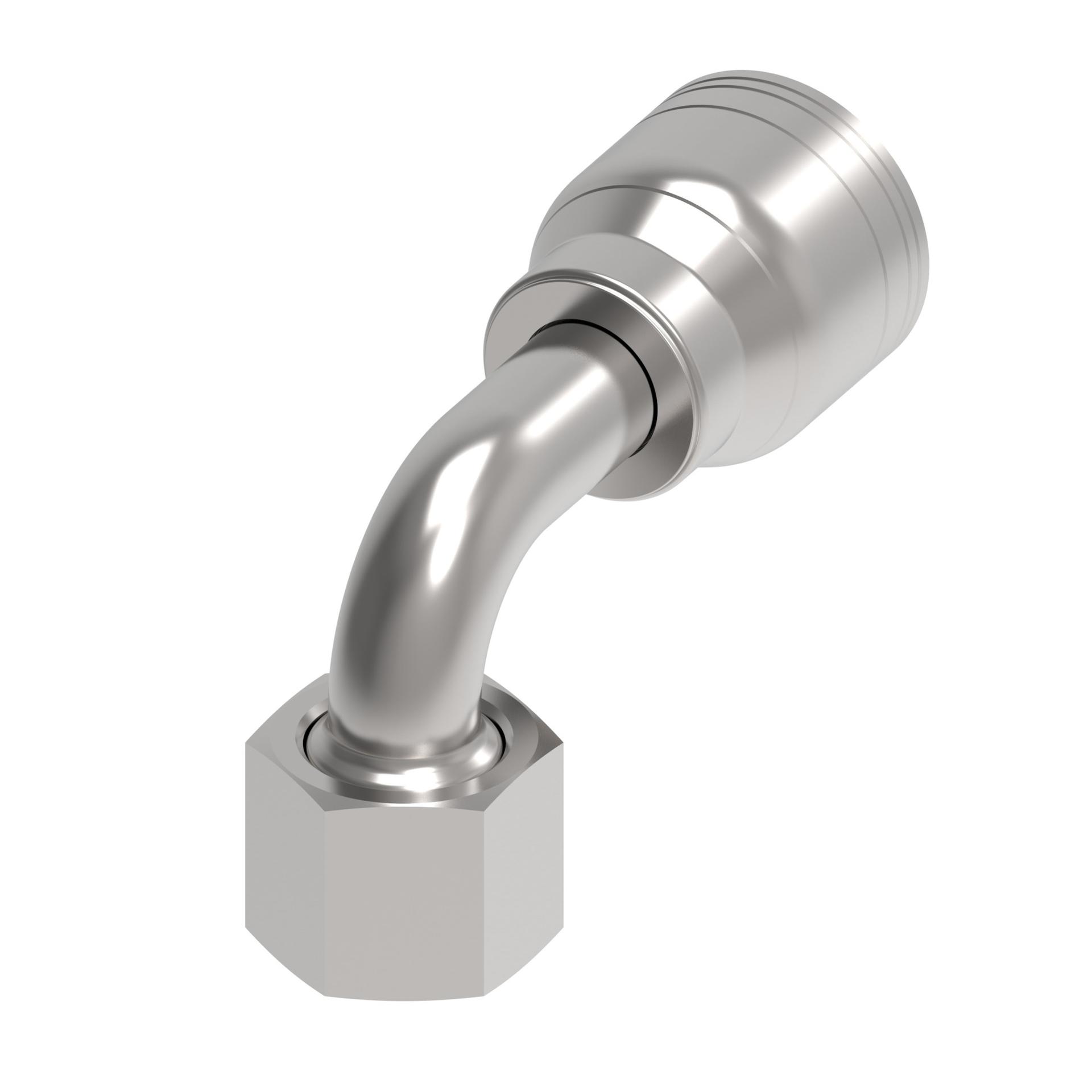

Hose Fittings 1AA10FRB10 [RIGHT]

Hose End (perm) 1S/1R

10Z-A30-BG

Tools

Product specifications

Characteristic
Value
Angle shape90 Degree
BrandWeatherhead by Danfoss
Compatible hose ID IN0.630
Compatible hose ID MM16.002
Compatible tube OD IN0.63
Compatible tube OD MM16.002
CompliancesSAE J1176
Construction StyleCrimp
Drop dimension IN1.000
Drop dimension MM32.0
End size 1-16
End type 1Female ORFS swivel
Finish platingDura-Kote
Hex size 1 IN1.130
Hex size 1 MM28.702
Hose cut off factor IN1.910
Hose cut off factor MM48.514
Hose size-10
Inside diameter IN0.450
Inside diameter MM11.430
Product materialCarbon steel
Thread sealantNo
Tube OD 1 IN0.630
Tube OD 1 MM16.002

General specifications

Characteristic
Value
EAN/UPC810075337105
