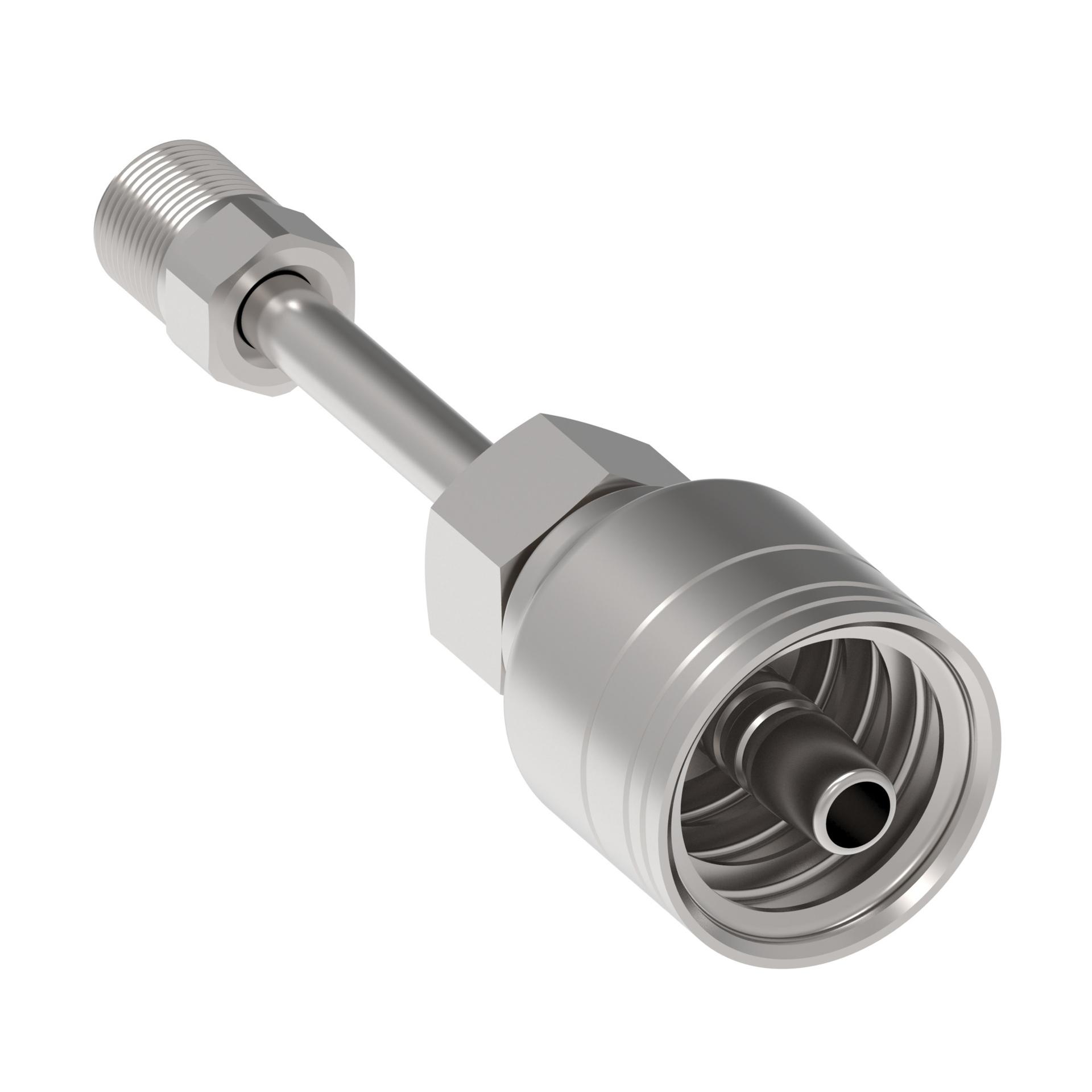

Hose Fittings 1AA3MF4 [RIGHT]

CONEXION

1AA3MF4

Tools

Product specifications

Characteristic
Value
A dimension IN3.000
A dimension MM76.200
Angle shapeStraight
Backup hex size IN0.563
Backup hex size MM14.288
BrandAeroquip by Danfoss
Compatible hose ID IN0.250
Compatible hose ID MM6.400
Construction StyleCrimp
End connection hex size IN0.375
End connection hex size MM9.525
End size 1-3
End type 1Male inverted flare
Finish platingDura-Kote
Hex size 1 IN0.375
Hex size 1 MM9.525
Hex size 2 IN0.563
Hex size 2 MM14.288
Hose cut off factor IN2.200
Hose cut off factor MM55.900
Hose size-4
Inside diameter IN0.100
Inside diameter MM2.500
Product materialCarbon steel
Series1A/Z Series
Thread size 13/8-24 UNF

General specifications

Characteristic
Value
EAN/UPC678146126405
