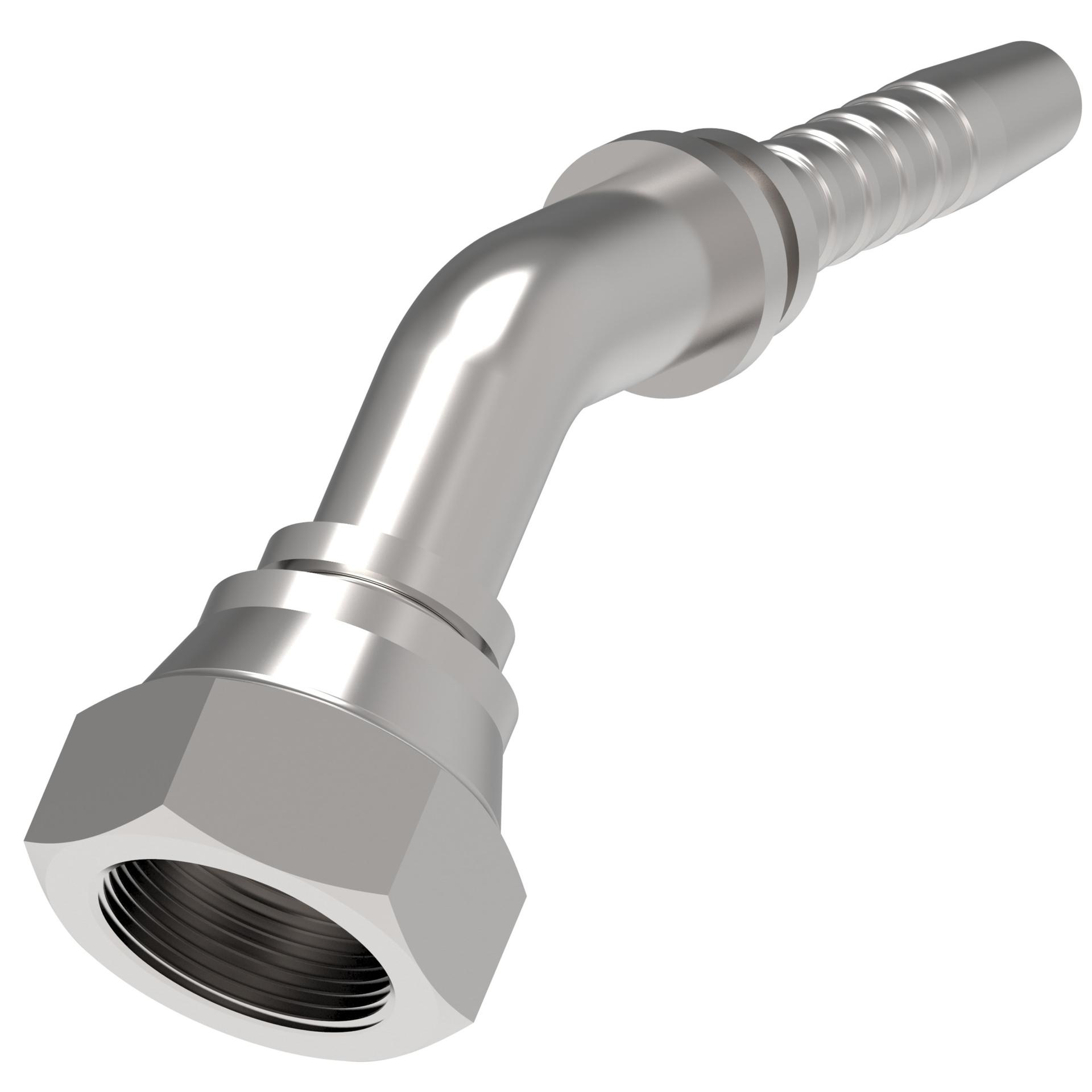

Product specifications
Characteristic | Value |
|---|---|
| A dimension IN | 5.905 |
| A dimension MM | 150.000 |
| Angle shape | 45 Degree |
| Brand | Winner by Danfoss |
| Compatible hose ID IN | 1.250 |
| Compatible hose ID MM | 31.800 |
| Construction Style | Crimp |
| Drop dimension IN | 1.385 |
| Drop dimension MM | 35.20 |
| End type 2 | Line/hose/tube |
| Finish plating | Zinc plating |
| Hex size 1 IN | 1.969 |
| Hex size 1 MM | 50.000 |
| Hex size 2 IN | 1.969 |
| Hex size 2 MM | 50.000 |
| Hose cut off factor IN | 3.779 |
| Hose cut off factor MM | 96.000 |
| Hose size | -20 |
| Inside diameter IN | 1.0620 |
| Inside diameter MM | 27.0000 |
| Product height in | 2.311 |
| Product height mm | 58.700 |
| Product length in | 5.906 |
| Product length mm | 150.000 |
| Product material | Carbon steel |
| Product width in | 1.496 |
| Product width mm | 38.000 mm |
| Series | Winner 2-Piece |
| Thread sealant | No |
| Thread size 1 | M42x2 |
| Working temperature max C | 100 |
| Working temperature max F | 212 |
| Working temperature min C | -40 |
| Working temperature min F | -40 |
