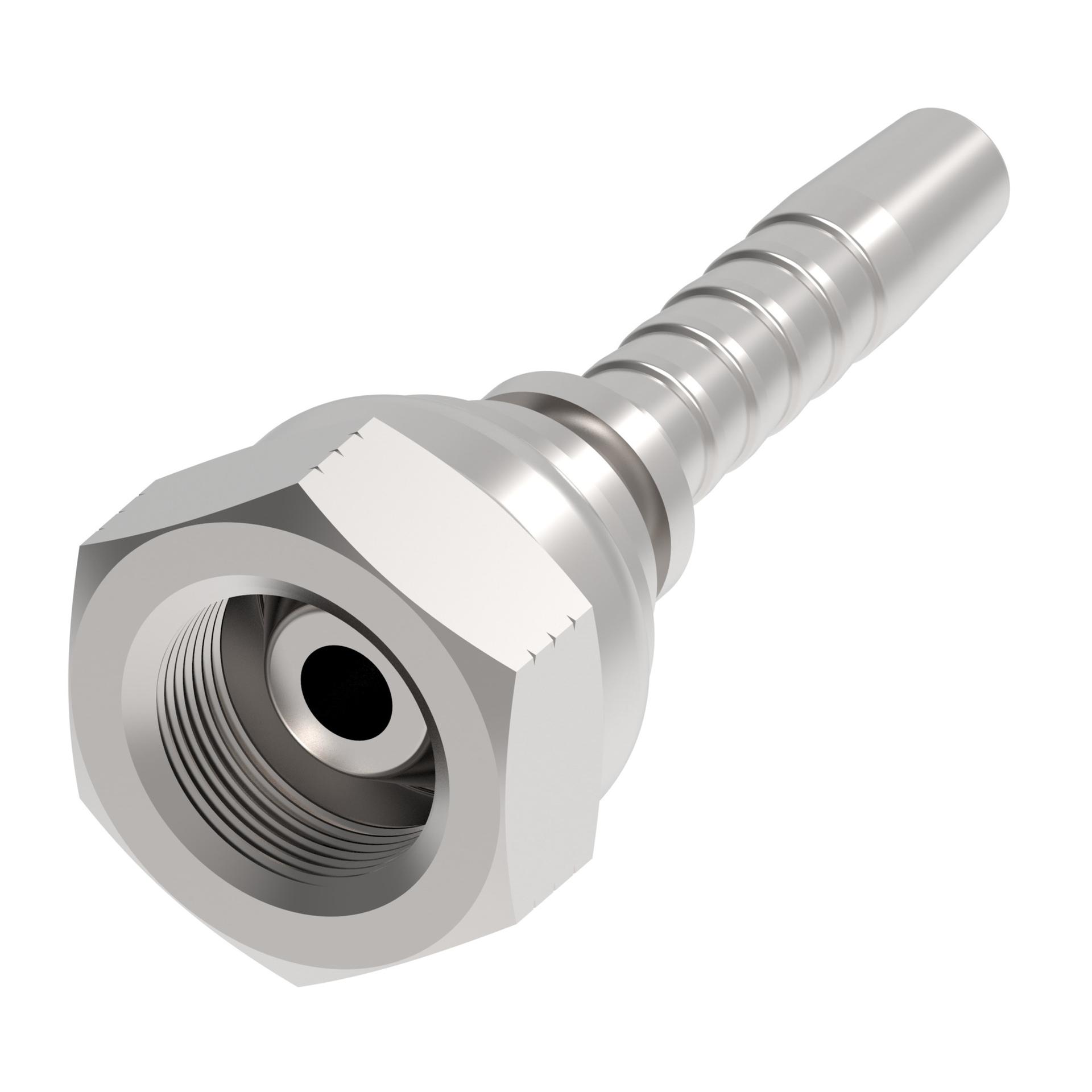

Product specifications
Characteristic | Value |
|---|---|
| A dimension IN | 3.280 |
| A dimension MM | 83.500 |
| Angle shape | Straight |
| Brand | Winner by Danfoss |
| Compatible hose ID IN | 1.250 |
| Compatible hose ID MM | 31.800 |
| Compatible hoses | EC110EC210FC687GH781GH793FC686GH663 |
| Construction Style | Crimp |
| End size 1 | -20 |
| End type 1 | Female pipe swivel (NPSM) |
| Finish plating | Zinc plating |
| Hex size 2 IN | 1.970 |
| Hex size 2 MM | 50.038 |
| Hose cut off factor IN | 1.160 |
| Hose cut off factor MM | 29.500 |
| Hose size | -20 |
| Inside diameter IN | 1.0600 |
| Inside diameter MM | 27.0000 |
| Product height in | 2.270 |
| Product height mm | 57.658 |
| Product length in | 3.720 |
| Product length mm | 94.488 |
| Product material | Carbon steel |
| Product width in | 1.970 |
| Product width mm | 50.038 mm |
| Series | Winner 2-Piece |
| Thread sealant | No |
| Thread size 1 | 1 1/4-11 1/2 NPSM |
