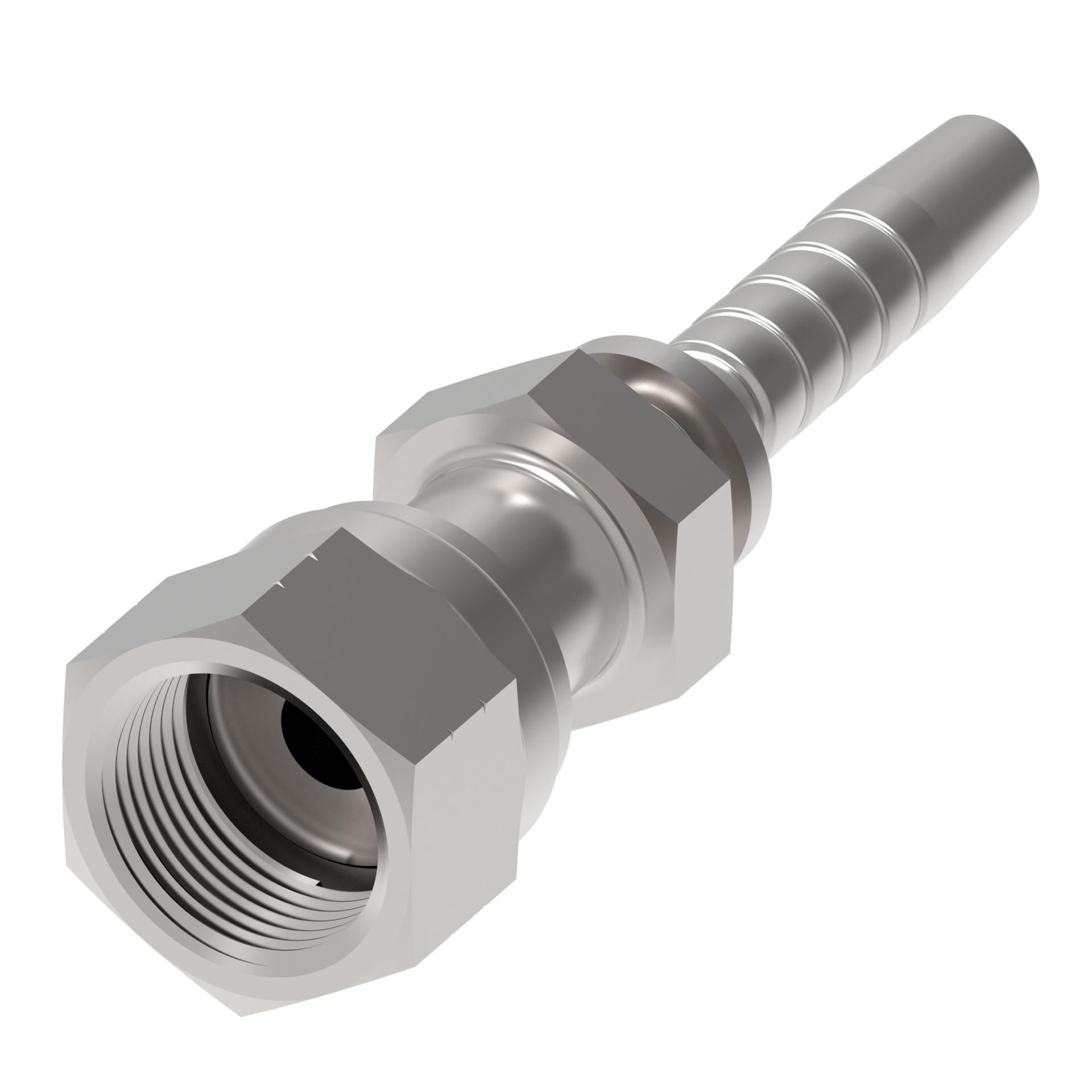

Hose Fittings 24211D-04-04SMZF(RIGHT)

HOSE NIPPLE ASSY, 2P/8, ORS-F/8, CZ

24211D-08-08SMZ


Tools

Product specifications

Characteristic
Value
A dimension IN2.560
A dimension MM65.000
Angle shapeStraight
BrandWinner by Danfoss
Compatible hose ID IN0.500
Compatible hose ID MM12.700
Construction StyleCrimp
End size 1-8
End type 1Female ORFS swivel
Finish platingZinc plating
Hex size 1 IN1.063
Hex size 1 MM27.000
Hex size 2 IN0.748
Hex size 2 MM19.000
Hose cut off factor IN1.320
Hose cut off factor MM33.500
Hose size-8
Inside diameter IN0.390
Inside diameter MM10.000
Product height in1.220
Product height mm30.988
Product length in2.992
Product length mm75.997
Product materialCarbon steel
Product width in1.060
Product width mm26.924 mm
Thread sealantNo
Thread size 113/16-16 UN
Working pressure max bar552
Working pressure max psi8100
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40
