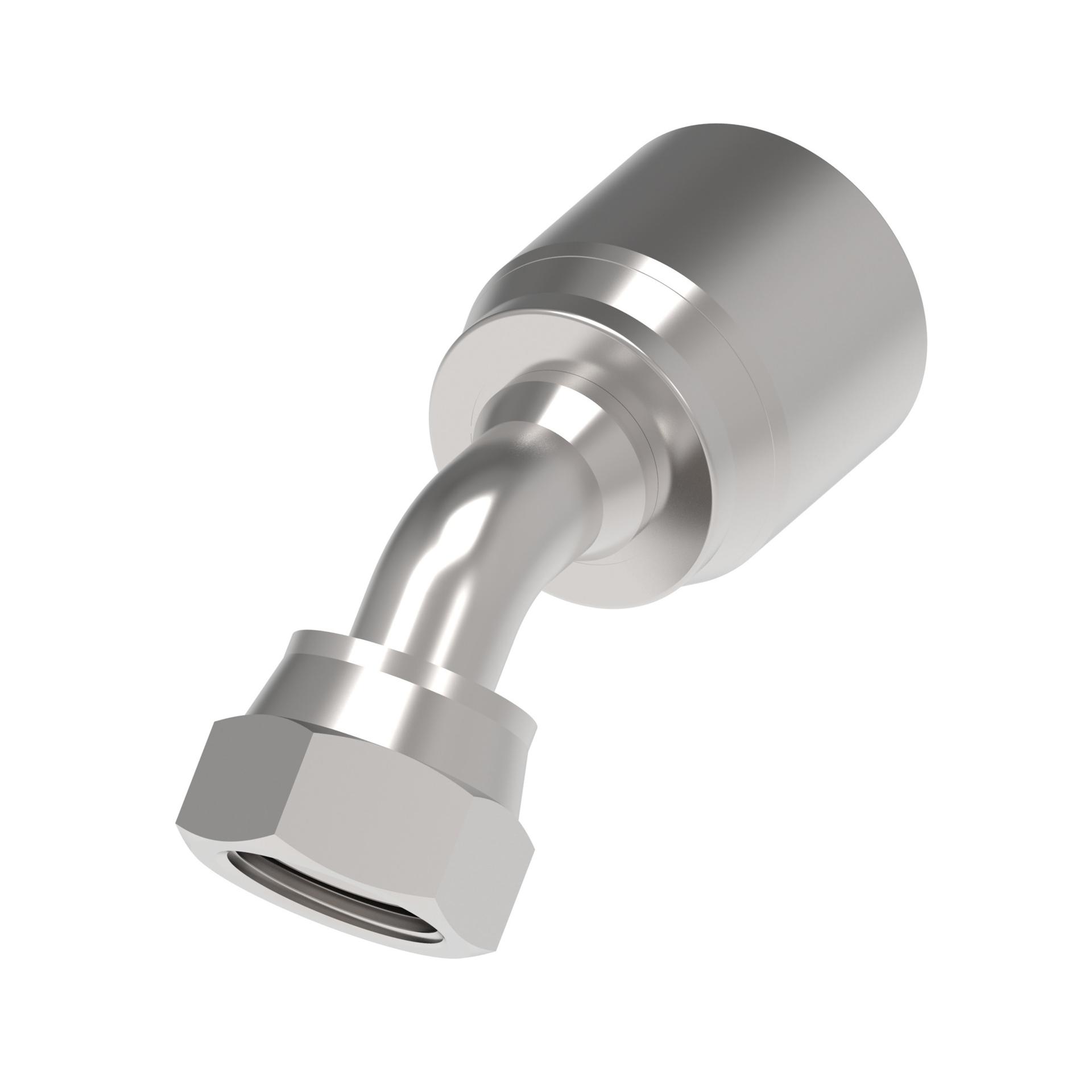

Product specifications
Characteristic | Value |
|---|---|
| A dimension IN | 2.890 |
| A dimension MM | 73.490 |
| Angle shape | 45 Degree |
| Brand | Winner by Danfoss |
| Compatible hose ID IN | 0.250 |
| Compatible hose ID MM | 6.350 |
| Compatible hoses | EC110EC115EC210EC215 |
| Construction Style | Crimp |
| Drop dimension IN | 0.920 |
| Drop dimension MM | 23.40 |
| End size 1 | -4 |
| End type 1 | Female ORFS swivel |
| Finish plating | Zinc plating |
| Hex size 1 IN | 0.669 |
| Hex size 1 MM | 17.000 |
| Hex size 2 IN | 0.670 |
| Hex size 2 MM | 17.018 |
| Hose cut off factor IN | 1.800 |
| Hose cut off factor MM | 45.490 |
| Hose size | -4 |
| Inside diameter IN | 0.1500 |
| Inside diameter MM | 4.0000 |
| Product height in | 1.156 |
| Product height mm | 29.362 |
| Product length in | 3.225 |
| Product length mm | 81.915 |
| Product material | Carbon steel |
| Product width in | 0.669 |
| Product width mm | 16.993 mm |
| Thread sealant | No |
| Working pressure max bar | 621 |
| Working pressure max psi | 9100 |
