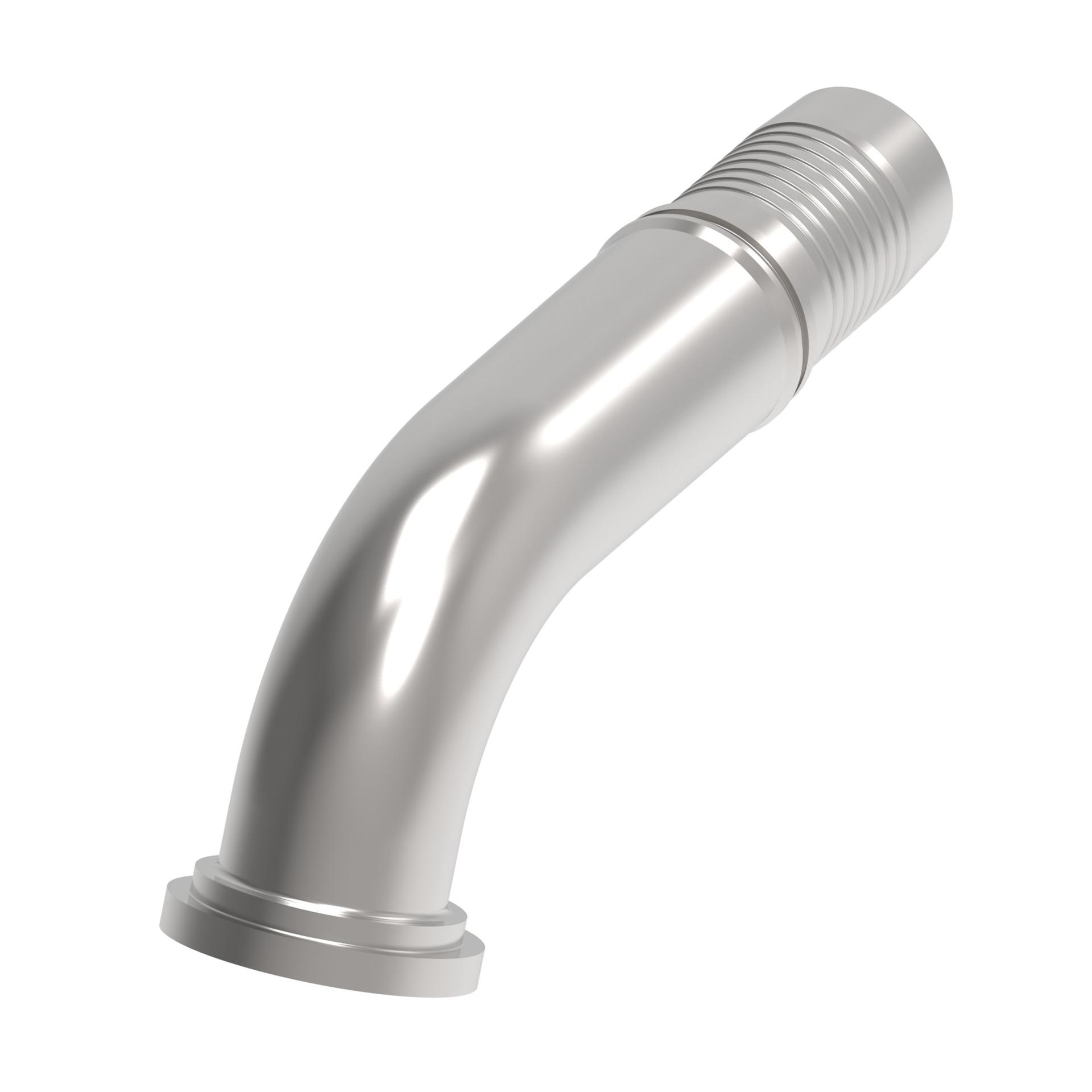

Product specifications
Characteristic | Value |
|---|---|
| A dimension IN | 8.401 |
| A dimension MM | 213.400 |
| Angle shape | 67.5 Degree |
| Brand | Winner by Danfoss |
| Compatible hose ID IN | 2.000 |
| Compatible hose ID MM | 50.800 |
| Construction Style | Crimp |
| Drop dimension IN | 3.543 |
| Drop dimension MM | 90.00 |
| End size 1 | -24 |
| End size 2 | -32 |
| End type 1 | Split flange code 61 |
| End type 2 | Line/hose/tube |
| Finish plating | Zinc plating |
| Hose cut off factor IN | 5.566 |
| Hose cut off factor MM | 141.400 |
| Hose size | -32 |
| Inside diameter IN | 1.2590 |
| Inside diameter MM | 32.0000 |
| Product height in | 5.872 |
| Product height mm | 149.151 |
| Product length in | 7.898 |
| Product length mm | 200.599 |
| Product material | Carbon steel |
| Product width in | 2.374 |
| Product width mm | 60.300 mm |
| Thread sealant | No |
| Working pressure max bar | 206 |
| Working pressure max psi | 2950 |
