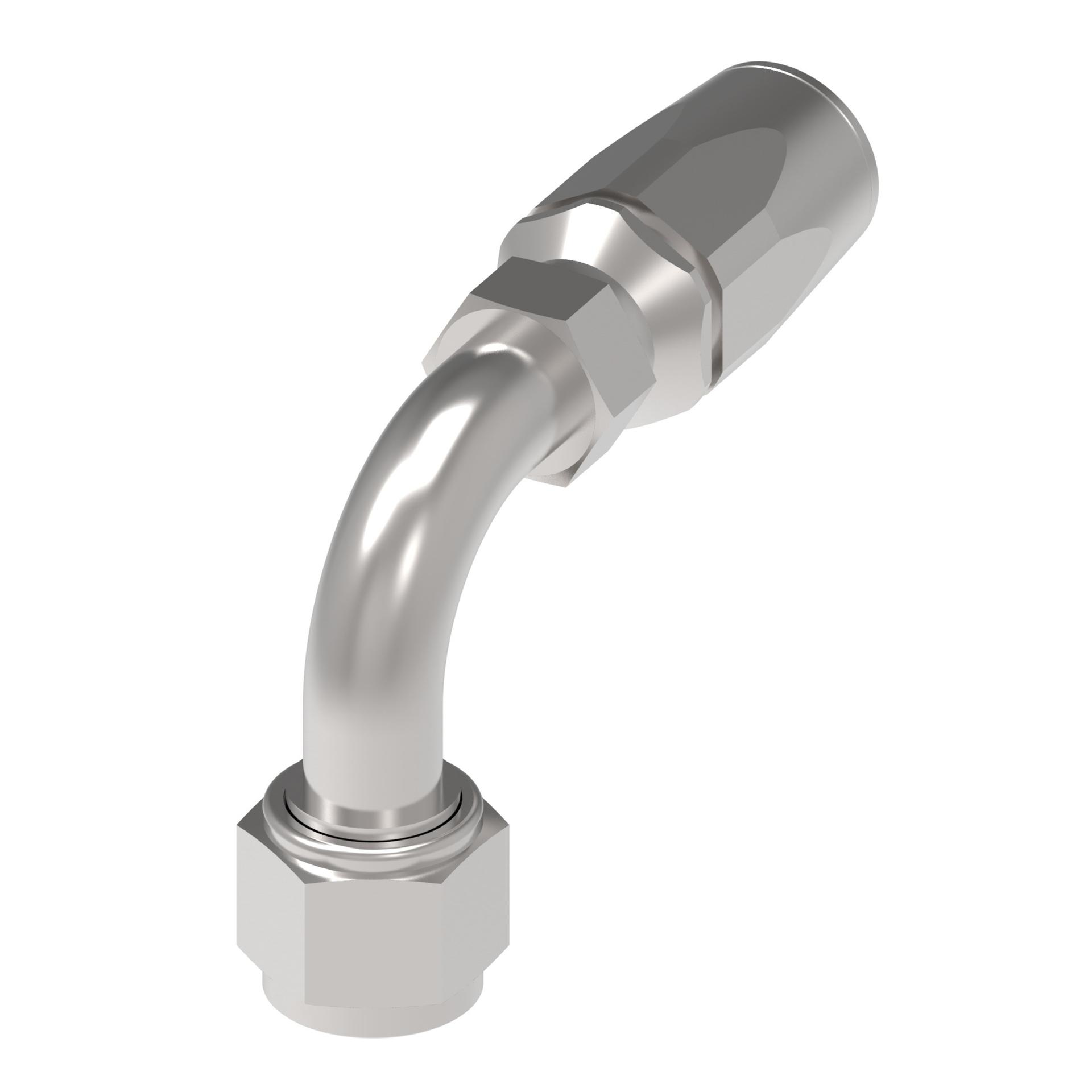

Hose Fittings 1R10FJB8(RIGHT)

HE, STEM, REUSE.

DSR97-1408


Tools

Product specifications

Characteristic
Value
Angle shape90 Degree
BrandWinner Duffield by Danfoss
Compatible hose ID IN0.500
Compatible hose ID MM12.700
Compatible hosesD2800W
Construction StyleReusable
Drop dimension IN1.950
Drop dimension MM49.53
End size 1-10
End size 2-8
End type 1Female 37 degree swivel
End type 2Line/hose/tube
Hex size 1 IN1.060
Hex size 1 MM26.924
Hose size-8
Inside diameter IN0.350
Inside diameter MM8.890
Product height in2.380
Product height mm60.452
Product length in4.310
Product length mm109.474
Product materialCarbon steel
Product width in1.060
Product width mm26.924 mm
Thread sealantNo
