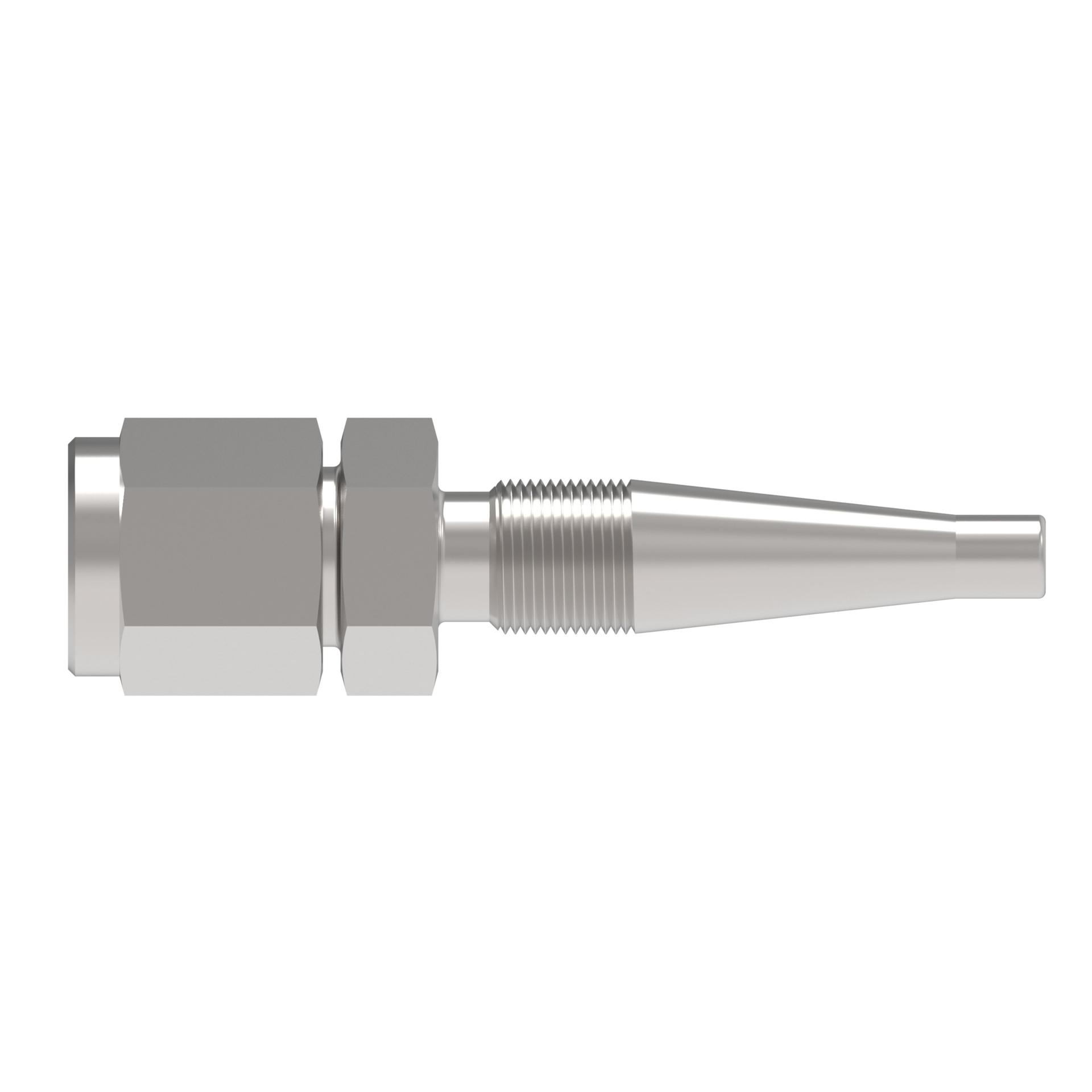

Hose FittingsG4103-4-XXDR (CENTER)

FTGS, 2R/12, JIC-F/12, -S

G4103-4-12-12DR


Tools

Product specifications

Characteristic
Value
A dimension IN3.385
A dimension MM86.000
Angle shapeStraight
BrandAeroquip by Danfoss
Compatible hose ID IN0.750
Compatible hose ID MM19.050
Construction StyleReusable
End size 1-12
End type 1Female 37 degree swivel
Finish platingDura-Kote
Hex size 1 IN1.260
Hex size 1 MM32.000
Hex size 2 IN1.259
Hex size 2 MM32.000
Hose cut off factor IN1.555
Hose cut off factor MM39.500
Hose size-12
Inside diameter IN0.614
Inside diameter MM15.600
Product height in1.450
Product height mm36.830
Product length in3.810
Product length mm96.774
Product materialCarbon steel
Product width in1.260
Product width mm32.004 mm
Thread sealantNo
Thread size 11 1/16-12 UN
Working pressure max bar276
Working pressure max psi4000
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40
