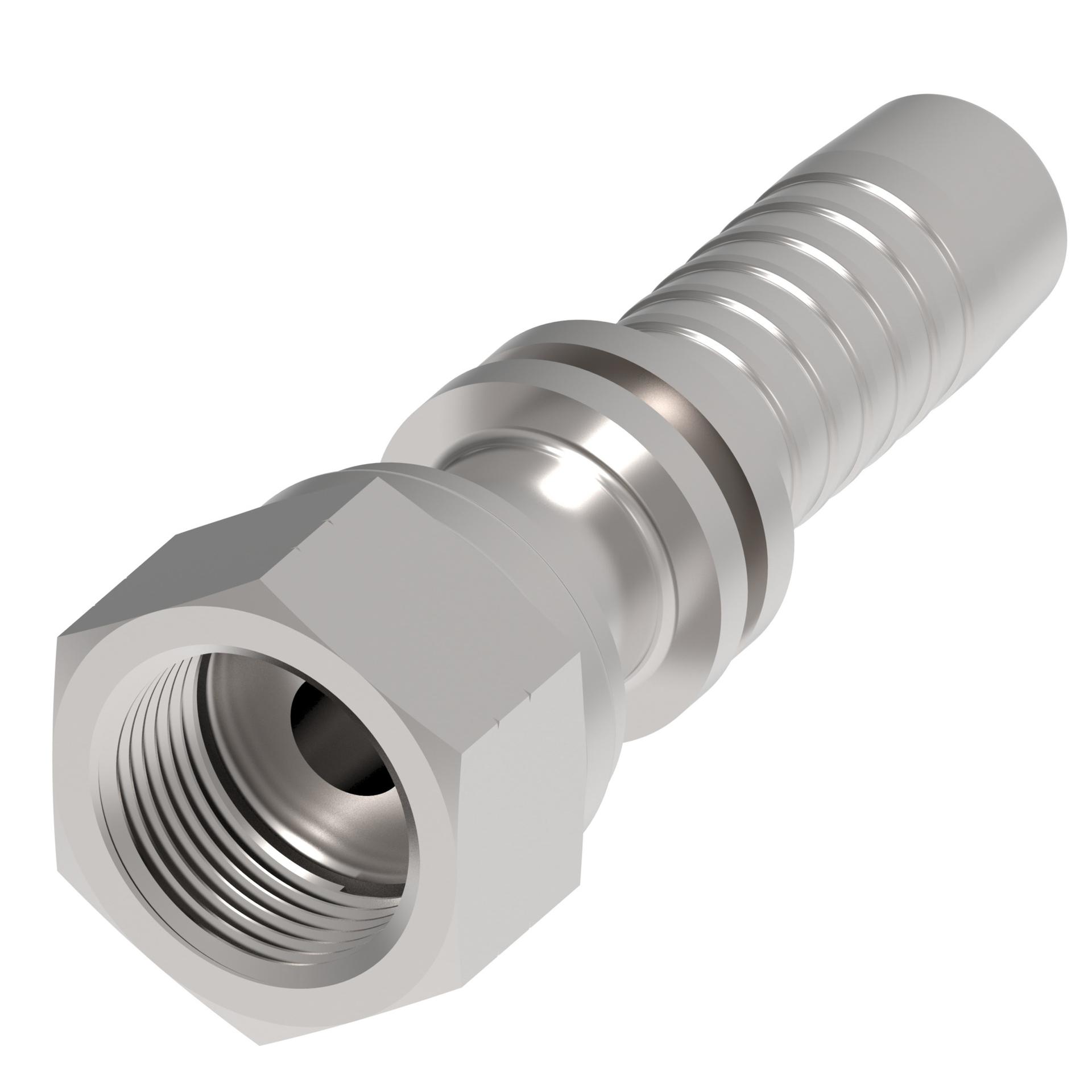

Product specifications
Characteristic | Value |
|---|---|
| A dimension IN | 3.149 |
| A dimension MM | 80.000 |
| Angle shape | Straight |
| Brand | Winner by Danfoss |
| Compatible hose ID IN | 0.750 |
| Compatible hose ID MM | 19.000 |
| Construction Style | Crimp |
| End connection torque | 46-50 lb-ft(62-68 Nm) |
| End size 1 | -10 |
| End type 1 | Female ORFS swivel |
| Finish plating | Zinc plating |
| Hex size 2 IN | 1.180 |
| Hex size 2 MM | 29.972 |
| Hose cut off factor IN | 1.350 |
| Hose cut off factor MM | 34.300 |
| Hose size | -12 |
| Inside diameter IN | 0.4520 |
| Inside diameter MM | 11.5000 |
| Product height in | 1.360 |
| Product height mm | 34.544 |
| Product length in | 3.660 |
| Product length mm | 92.964 |
| Product material | Carbon steel |
| Product width in | 1.181 |
| Product width mm | 29.997 mm |
| Series | Winner 2-Piece |
| Thread sealant | No |
| Thread size 1 | 1-14 UNS |
| Working pressure max bar | 552 |
| Working pressure max psi | 8100 |
| Working temperature max C | 100 |
| Working temperature max F | 212 |
| Working temperature min C | -40 |
| Working temperature min F | -40 |
