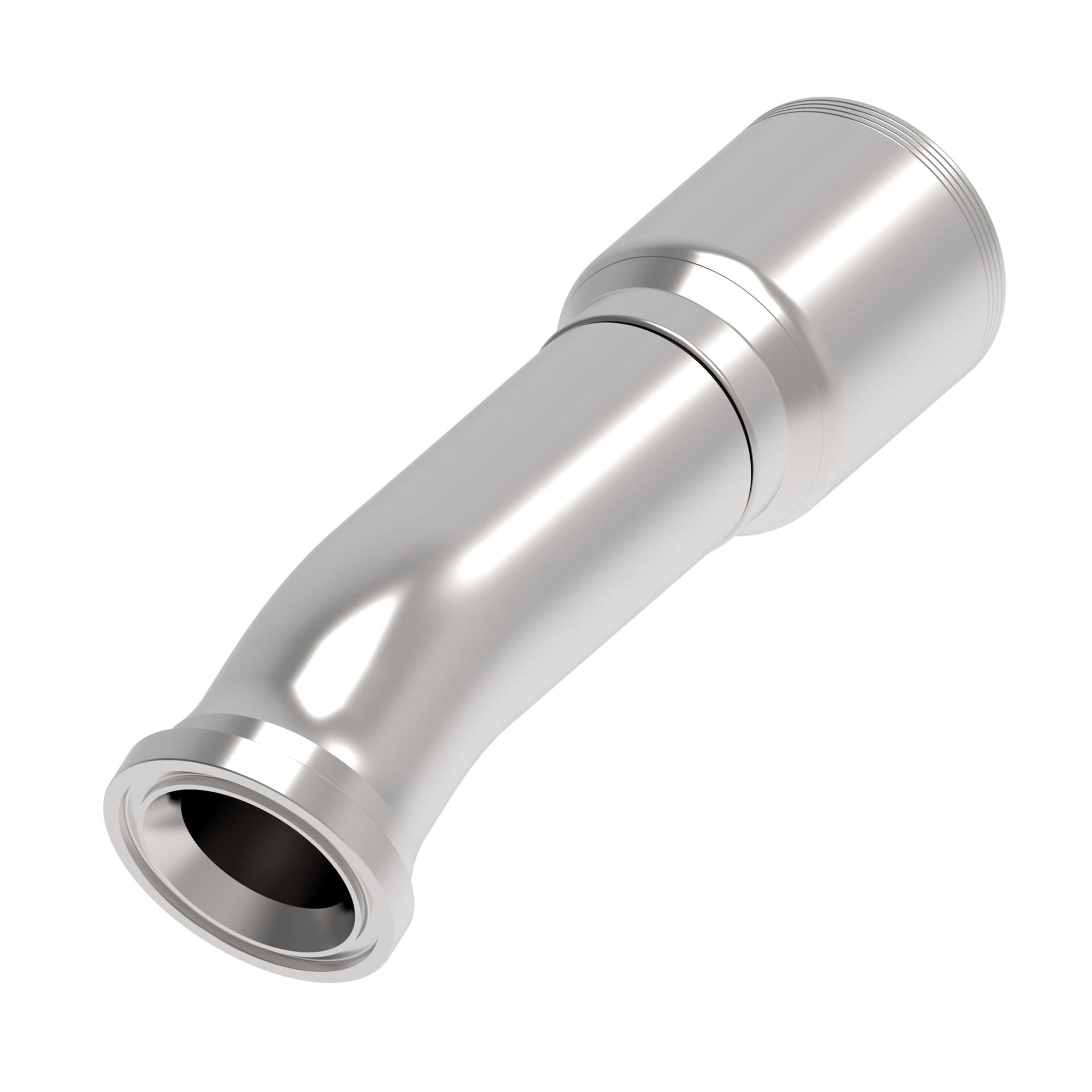

Hose Fittings 4S32FLD24 (RIGHT)

Ftng (perm), MM sprC61 FLange 22.5

4S32FLD24


Tools

Product specifications

Characteristic
Value
A dimension IN10.500
A dimension MM266.700
Angle shape22.5 Degree
BrandDanfoss
Compatible hose ID IN1.500
Compatible hose ID MM38.100
Compatible hosesEC525 (Size dependent)EC810 (Size dependent)FC254 (Size dependent)FC273 (Size dependent)FC500 (Size dependent)FC636 (Size dependent)FC736 (Size dependent)GH493 (Size dependent)GH506 (Size dependent)
Compatible tube OD IN2.00
Compatible tube OD MM50.800
CompliancesSAE J1176
Construction StyleCrimp
Drop dimension IN0.930
Drop dimension MM23.50
End size 1-32
End Type 1Split flange code 61
Finish platingDura-Kote
Hose cut off factor IN7.430
Hose cut off factor MM188.700
Hose size-24
Inside diameter IN1.220
Inside diameter MM31.100
Product height in3.600
Product height mm91.440
Product length in11.900
Product length mm302.260
Product materialCarbon steel
Product width in2.820
Product width mm71.628 mm
Thread sealantNo
Tube OD 1 IN2.000
Tube OD 1 MM50.800
Working pressure max bar206
Working pressure max psi2950
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40

General specifications

Characteristic
Value
EAN815628022682
