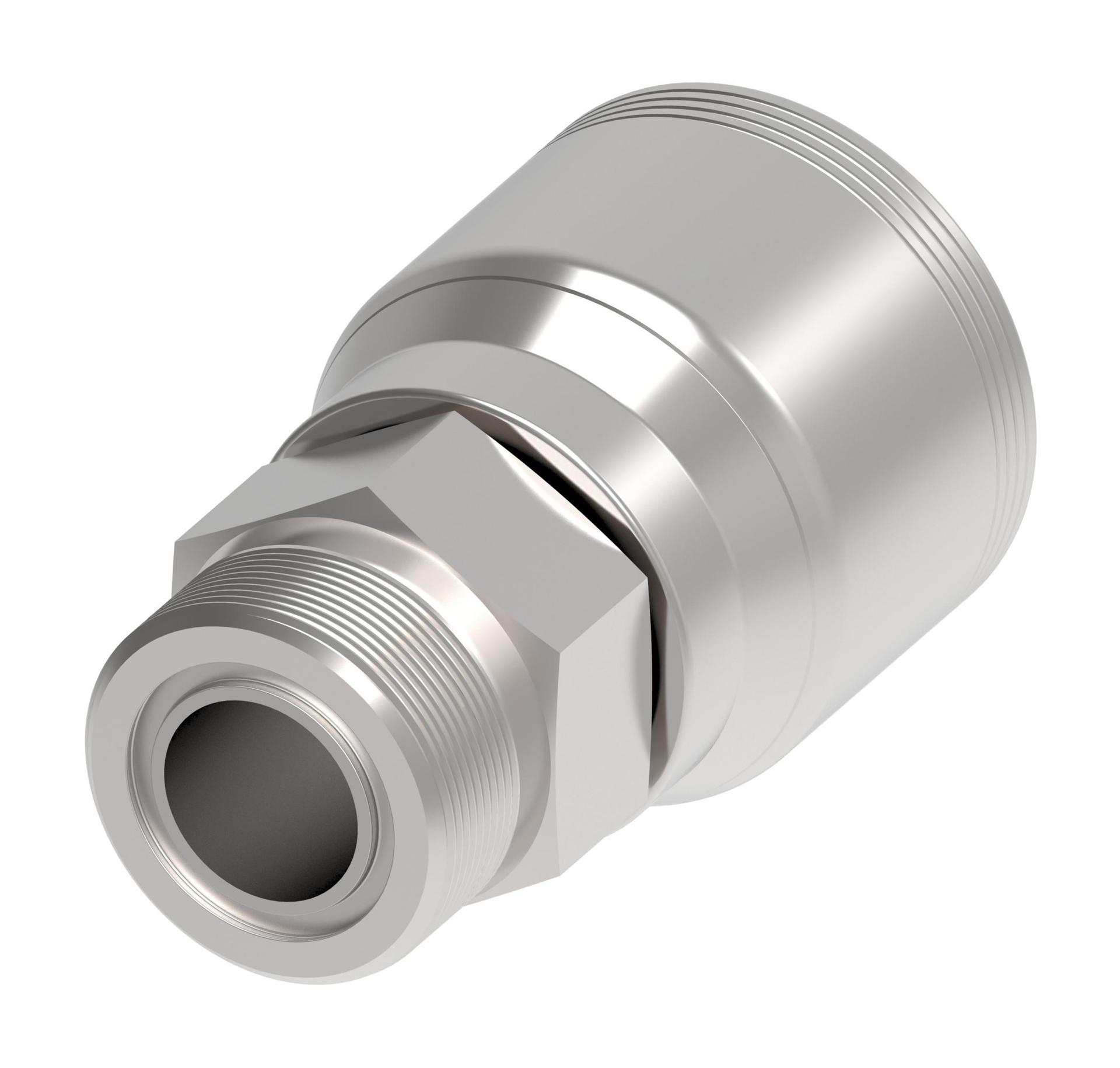

Hose Fittings 4SAXXMR16 (RIGHT)

Ftng (perm), MM sprl,ORS, steel

4SA20MR16


Tools

Product specifications

Characteristic
Value
A dimension IN3.190
A dimension MM81.100
Angle shapeStraight
BrandDanfoss
Compatible hose ID IN1.000
Construction StyleCrimp
End size 1-20
End type 1Male ORFS
Finish platingDura-Kote
Hex size 2 IN1.750
Hex size 2 MM44.450
Hose cut off factor IN1.630
Hose cut off factor MM41.500
Inside diameter IN0.760
Inside diameter MM19.200
Product height in2.084
Product height mm52.933
Product length in3.250
Product length mm82.550
Product materialCarbon steel
Product width in2.084
Product width mm52.933 mm
Seal materialEthylene Propylene (EPDM)
Thread sealantNo
Thread size 11 11/16-12 UN
Working pressure max bar414
Working pressure max psi6000
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40

General specifications

Characteristic
Value
EAN678146154071
