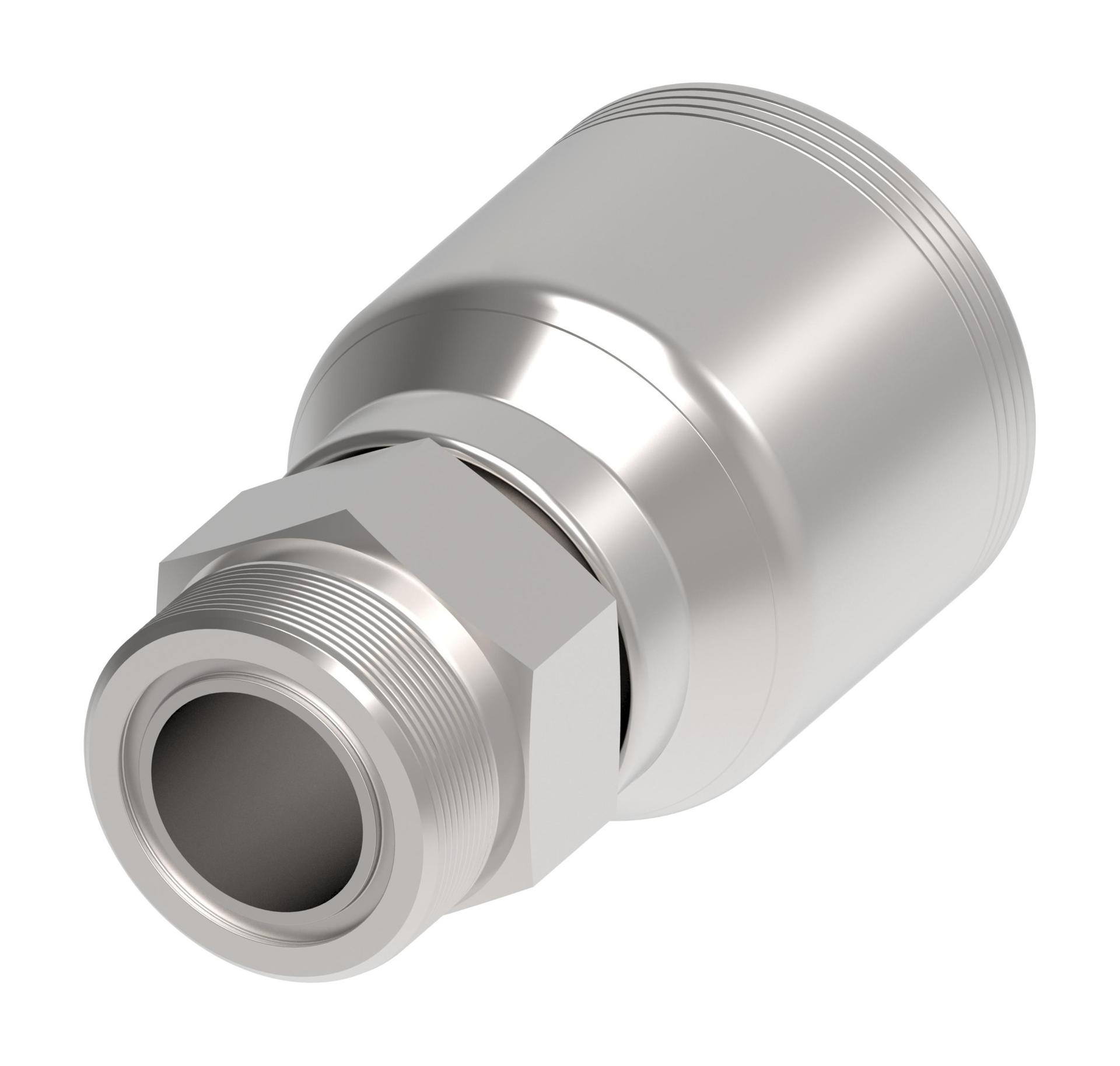

Danfoss 4S Series Crimp Hose Fittings Male ORS 4SAXXMR20 (RIGHT)

Ftng (perm), 4-sprl,ORS, straight

4SA20MR20


Tools

Product specifications

Characteristic
Value
A dimension IN4.220
A dimension MM107.100
Angle shapeStraight
BrandDanfoss
Compatible hose ID IN1.250
Construction StyleCrimp
End size 1-20
End type 1Male ORFS
Finish platingDura-Kote
Hex size 2 IN1.750
Hex size 2 MM44.450
Hose cut off factor IN2.050
Hose cut off factor MM52.000
Inside diameter IN0.990
Inside diameter MM25.200
Product height in2.457
Product height mm62.407
Product length in4.320
Product length mm109.728
Product materialCarbon steel
Product width in2.460
Product width mm62.484 mm
Seal materialEthylene Propylene (EPDM)
Thread sealantNo
Thread size 11 11/16-12 UN
Working pressure max bar310
Working pressure max psi4500
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40

General specifications

Characteristic
Value
EAN678146154088
