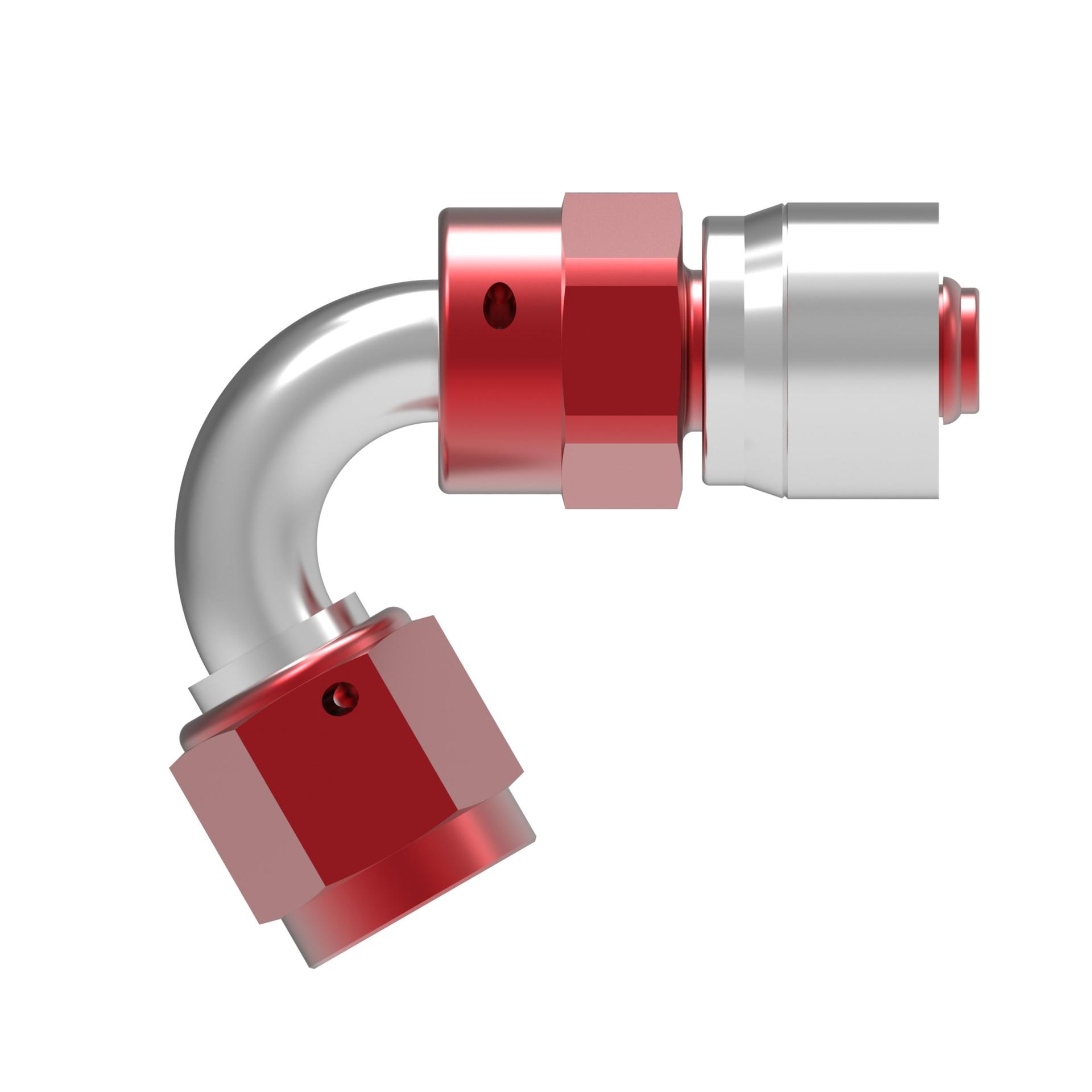

Hose Fittings FBM4242 [RIGHT]

Ftng (perm), PERF SAE 37 120 Deg Fitting

FCM4242

Tools

Product specifications

Characteristic
Value
Angle shape120 Degree
BrandAeroquip Performance Danfoss
Catalog ItemFCM4242
Compatible hose ID IN0.375
Compatible hose ID MM9.525
Compatible hosesFBU
Construction StyleCrimp
Drop dimension IN1.115
Drop dimension MM28.32
End size 1-6
End type 1Female 37 degree swivel
Finish platingAnodized
Hex size 1 IN0.688
Hex size 1 MM17.463
Hex size 2 IN0.750
Hex size 2 MM19.050
Hose cut off factor IN1.020
Hose cut off factor MM25.908
Hose size-6
Inside diameter IN0.230
Inside diameter MM5.842
Product materialAluminum

General specifications

Characteristic
Value
EAN/UPC678146219558
