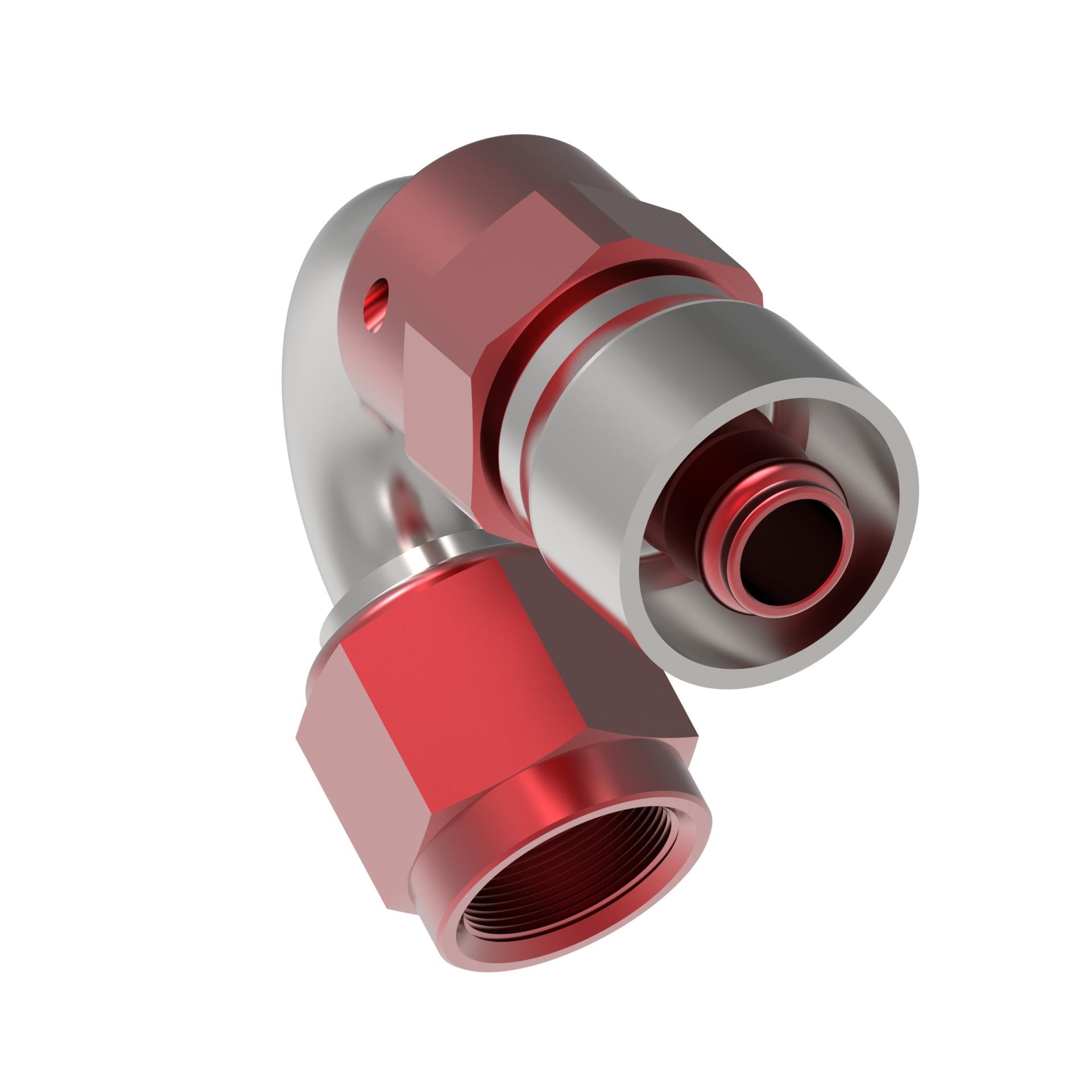

Hose Fittings FBM4252 [RIGHT]

Ftng (perm), PERF SAE 37 150 Deg Fitting

FCM4252

Tools

Product specifications

Characteristic
Value
Angle shape150 Degree
BrandAeroquip Performance Danfoss
Compatible hose ID IN0.375
Compatible hose ID MM9.525
Compatible hosesFBU
Construction StyleCrimp
Drop dimension IN1.144
Drop dimension MM29.1
End size 1-6
End type 1Female 37 degree swivel
Finish platingAnodized
Hex size 1 IN0.688
Hex size 1 MM17.5
Hex size 2 IN0.750
Hex size 2 MM19.1
Hose cut off factor IN0.690
Hose cut off factor MM17.526
Hose size-6
Inside diameter IN0.230
Inside diameter MM5.842
Product materialAluminum
Thread sealantNo

General specifications

Characteristic
Value
EAN/UPC678146219602
