Hose Fittings FBM4252 [LEFT]

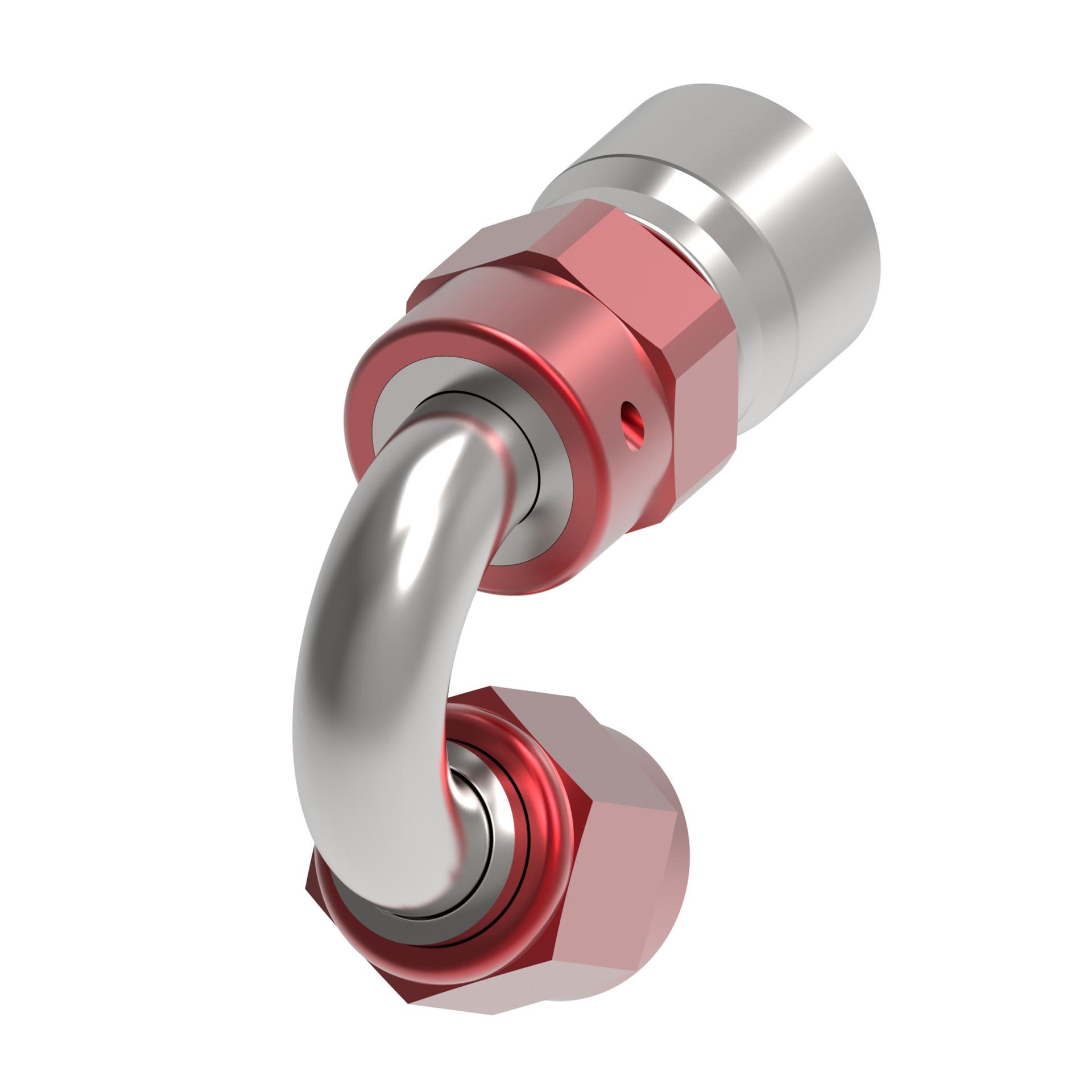

Ftng (perm), PERF SAE 37 150 Deg Fitting

FCM4255

Tools

Product specifications

Characteristic
Value
Angle shape150 Degree
Backup hex size IN1.250
Backup hex size MM31.750
BrandAeroquip Performance Danfoss
Catalog ItemFCM4255
Compatible hose ID IN0.750
Compatible hose ID MM19.050
Compatible hosesFBU
Construction StyleCrimp
Drop dimension IN1.841
Drop dimension MM46.76
End connection hex size IN1.250
End connection hex size MM31.750
End size 1-12
End Type 1Female 37 degree swivel
Finish platingAnodized
Hose cut off factor IN0.760
Hose cut off factor MM19.304
Hose size-12
Inside diameter IN0.560
Inside diameter MM14.224
Product materialAluminum

General specifications

Characteristic
Value
EAN/UPC678146219633
