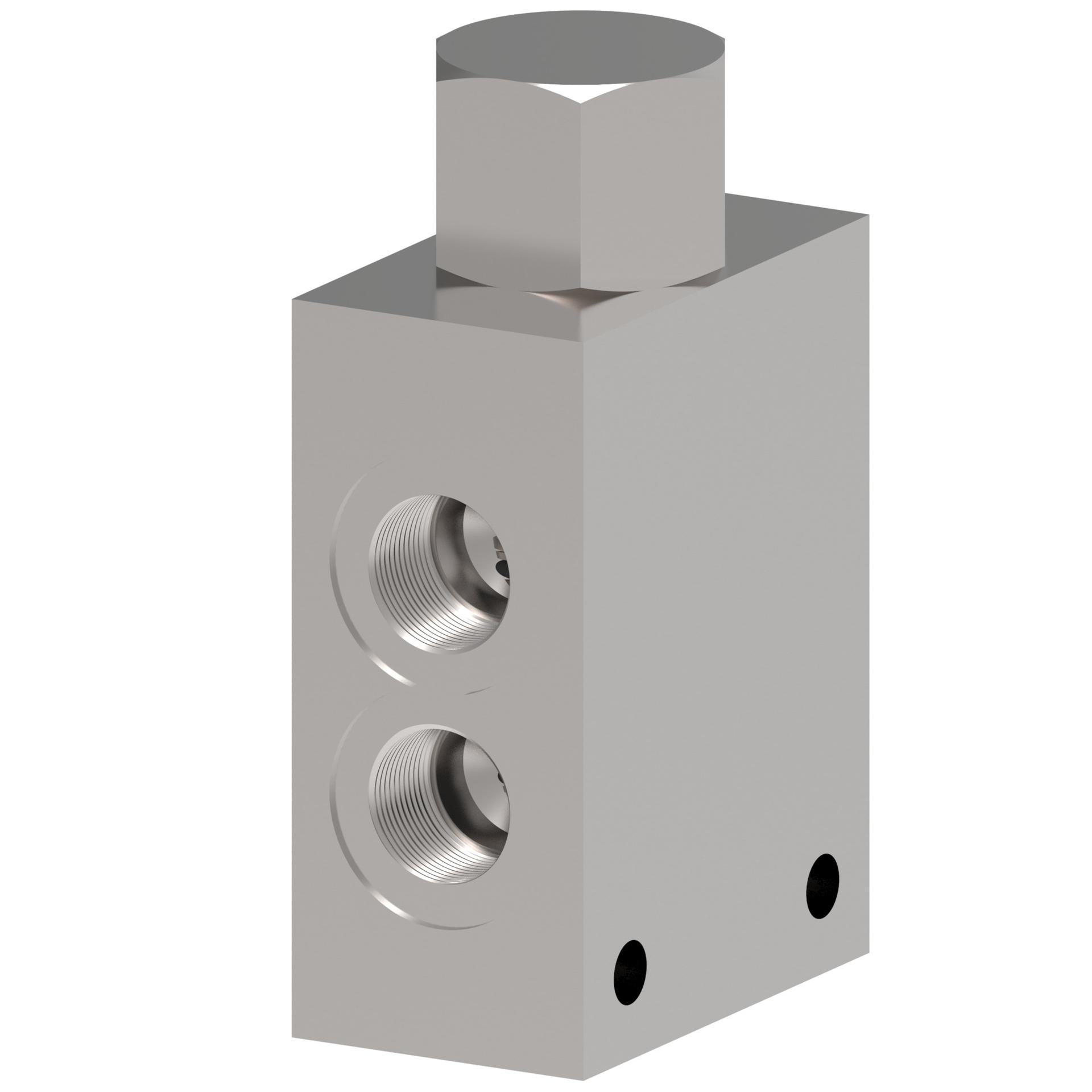

SICV Directional Control Valves 02-163635 (RIGHT)

PTS3-10-6T-160, PTS3-10-6T-160

02-163629


Tools

Product specifications

Characteristic
Value
Actuation optionNone
Adjustment typeNone
BrandVickers by Danfoss
CavityC-10-4
Detent optionNo
Flow rate GPM8.00
Flow rate LPM30.000
Fluid CompatibilityMIL-H-5606, SAE10, SAE20, etc
FunctionPilot to shift valve
HousingYes
Housing materialAluminum
Installation typeScrew-in Cartridge
Leakage164 cc/min
Model Code 1PTS3-10-6T-160
Number of housing ports4
Number of valve ports4
Operating temperature-40 C to 120 C (-40 to 248 F)
OperationPilot operated
Pilot pressure setting BAR11.00
Port Size3/8"
Port TypeSAE
Pressure rating BAR210.000
Pressure rating PSI3000.000
Recommended filtration level18/16/13
Seal TypeBuna-N
Style4-Way 2-Position
Torque into aluminium cavity47-54 Nm
Torque into steel cavity68-75 Nm
