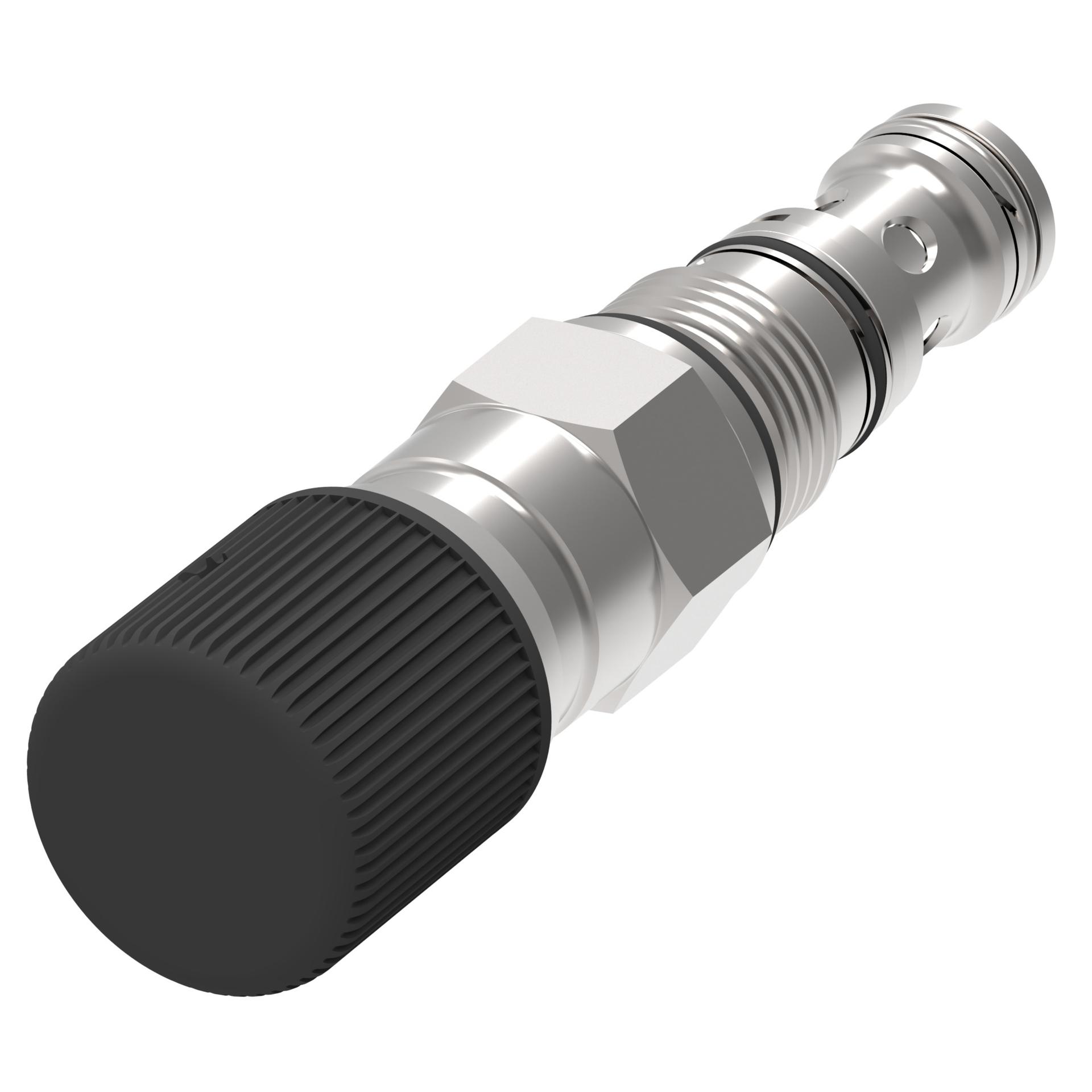

Product specifications
Characteristic | Value |
|---|---|
| Adjustment type | Knob |
| Brand | Vickers by Danfoss |
| Cavity | C-10-3S |
| Flow rate GPM | 15.00 |
| Flow rate LPM | 60.000 |
| Fluid compatibility | MIL-H-5606, SAE10, SAE20, etc |
| Function | Counterbalance Valve |
| Housing | No |
| Installation type | Screw-in Cartridge |
| Leakage | 5 dpm |
| Max relief press BAR | 210.000 |
| Max relief press PSI | 3000.000 |
| Model Code 1 | CBV1-10-K-0-A-30-XXX |
| Number of housing ports | 3 |
| Number of valve ports | 3 |
| Operating temperature | -40 C to 120 C (-40 to 248 F) |
| Operation | Pilot operated |
| Pilot ratio | 4:1 |
| Port type | Cartridge Only |
| Pressure rating BAR | 350.00 |
| Pressure rating PSI | 5000.00 |
| Recommended filtration level | 18/16/13 |
| Seal type | Buna-N |
| Special features | None |
| Style | Pilot assisted relief w check |
| Valve torque into cavity | 47–54 Nm |
