Hose Fittings 00118-40-FC619-SV (RIGHT)

Winner by Danfoss

00118-40(FC619)SV

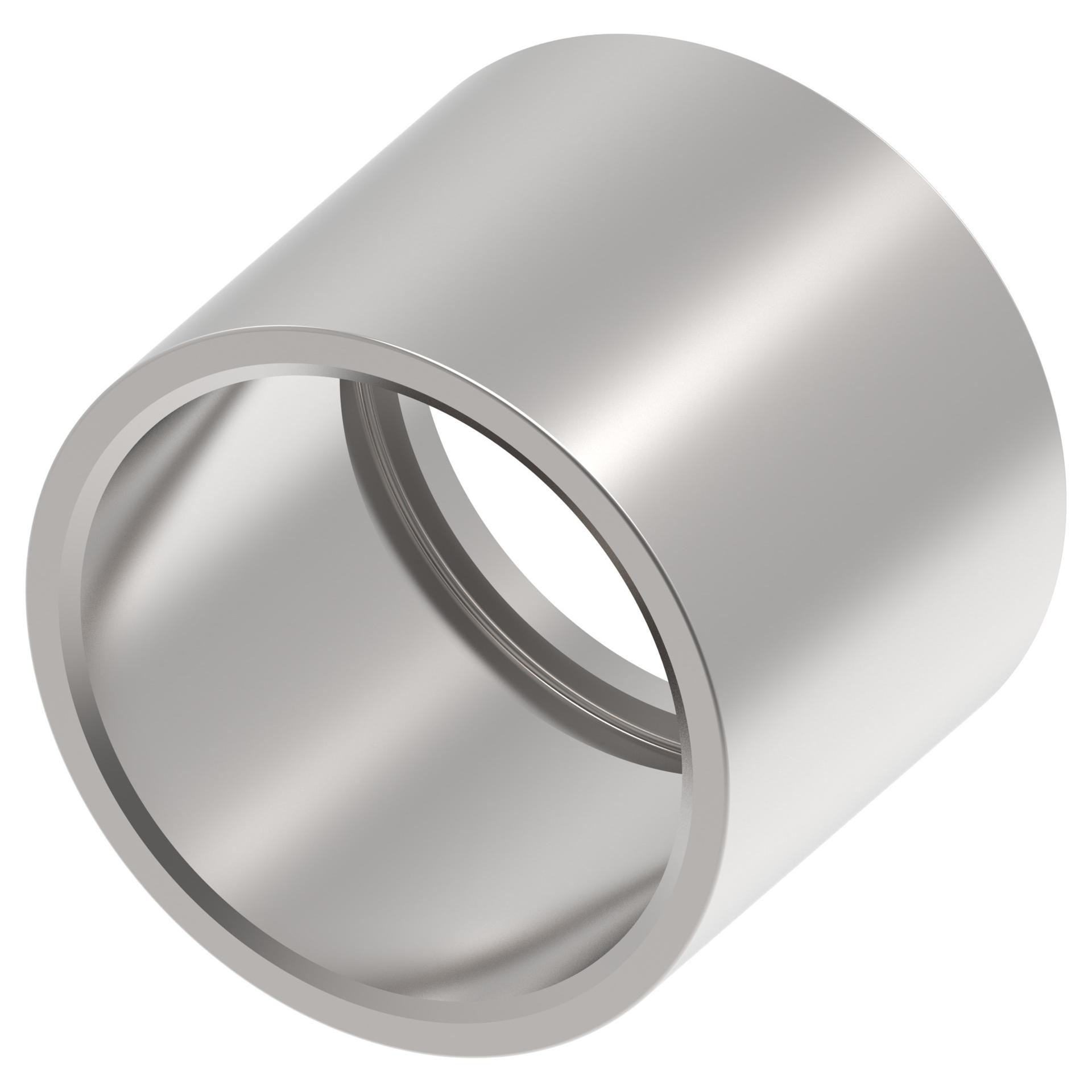

fitting-socket
The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.

Tools

Product specifications

Characteristic
Value
Angle (shape)Straight
ApplicationHydraulic System Service with Petroleum and Water Based Fluids|General Industrial Service
BrandWinner by Danfoss
Compatible hose ID63.5 mm
Construction styleCrimp
End type 1Compression
End type 2Line/Hose/Tube
FeatureDura-Kote plating for superior corrosion resistanceInnovative design to deliver performance and maximum uptimeSystem engineered to extend hose assembly life
Hose dash size-40
Inside diameter73.5 mm
Item typeSocket
Outside diameter86 mm
Product Diameter86 mm
Product Height86 mm
Product Length/Depth72 mm
Product TypeCrimp Hose Fittings
Product Volume532.512 cm³
Product Weight.5 kg
Product Width86 mm
Product material316L Stainless Steel
Sub-brandNone
Thread sealantNo
Trade Name2-Piece
