Weatherhead by Danfoss

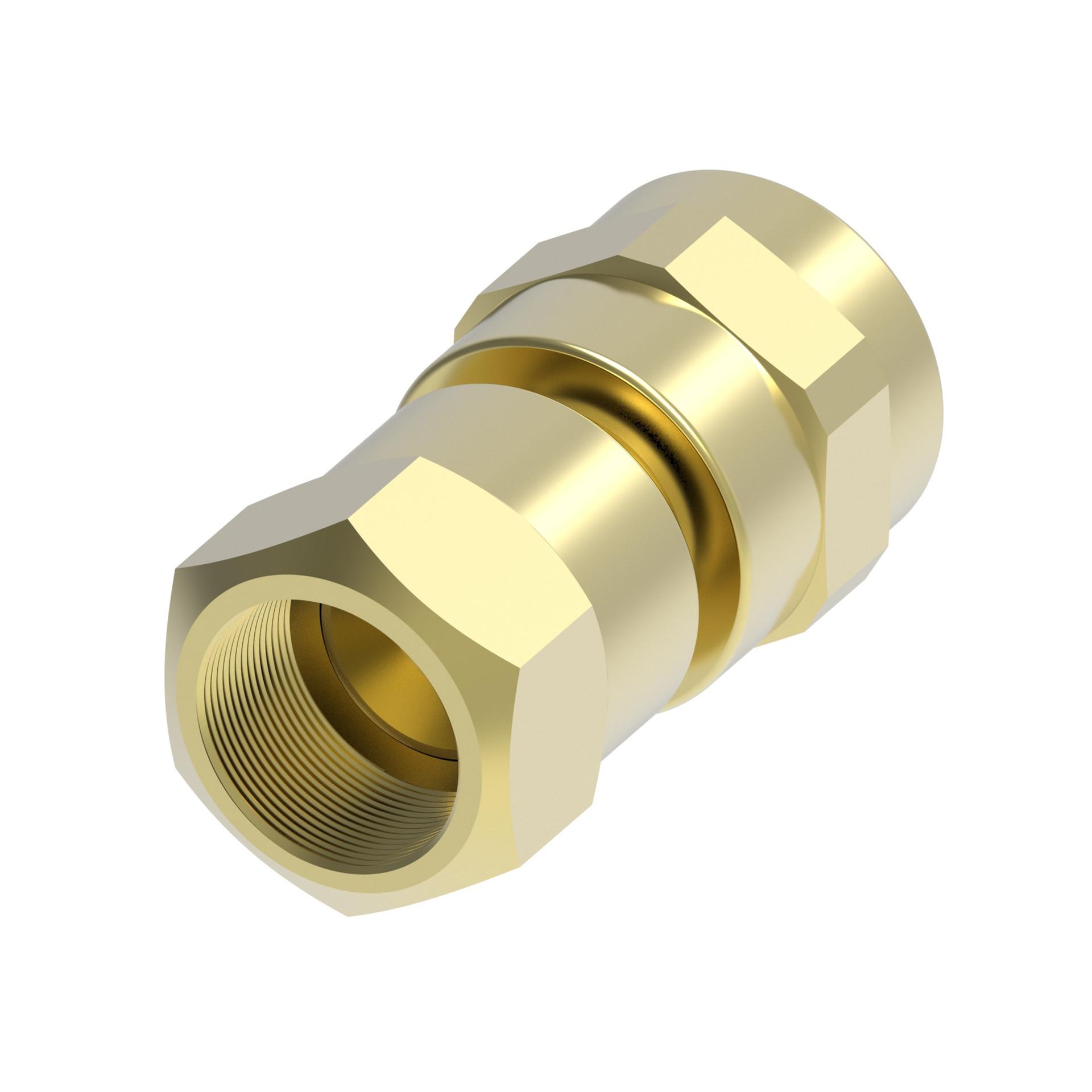

00908B-608
This product has been discontinued and is no longer available. At this time, there is no direct replacement product.
The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.
00908B-608
Product specifications
Characteristic | Value | Description |
|---|---|---|
| Angle (shape) | Straight | |
| Application | Low pressure shop or service air lines.Often used for low pressure lube and oil lines | |
| Brand | Weatherhead by Danfoss | |
| Compatible hose ID | .5 in | |
| Compatible tube OD | .5 in | |
| Construction style | Reusable | |
| End gender 1 | Female | |
| End Size 1 | 3/4 IN | |
| End Size 2 | 1/2 IN | |
| End type 1 | JIC 37 | |
| End type 2 | Line/Hose/Tube | |
| Feature | Fit for wide range of applicationsDurable and dependableCut assembly times and boost production | |
| Hex Size 1 | 1 in | |
| Hex Size 2 | .938 in | |
| Hose cut-off factor | 1.12 in | |
| Hose dash size | -8 | |
| Inside diameter | .408 in | |
| Item type | Fitting Assembly | |
| Product Height | 1 in | |
| Product Length/Depth | 1.71 in | |
| Product material | Brass | |
| Product Type | Field Attachable Hose Fittings | |
| Product Volume | 1.71 in³ | |
| Product Weight | .2096 lb | |
| Product Width | 1 in | |
| Sub-brand | None | |
| Thread sealant | No | |
| Thread Size 1 | 3/4-16 | |
| Trade Name | 009 B Series |
