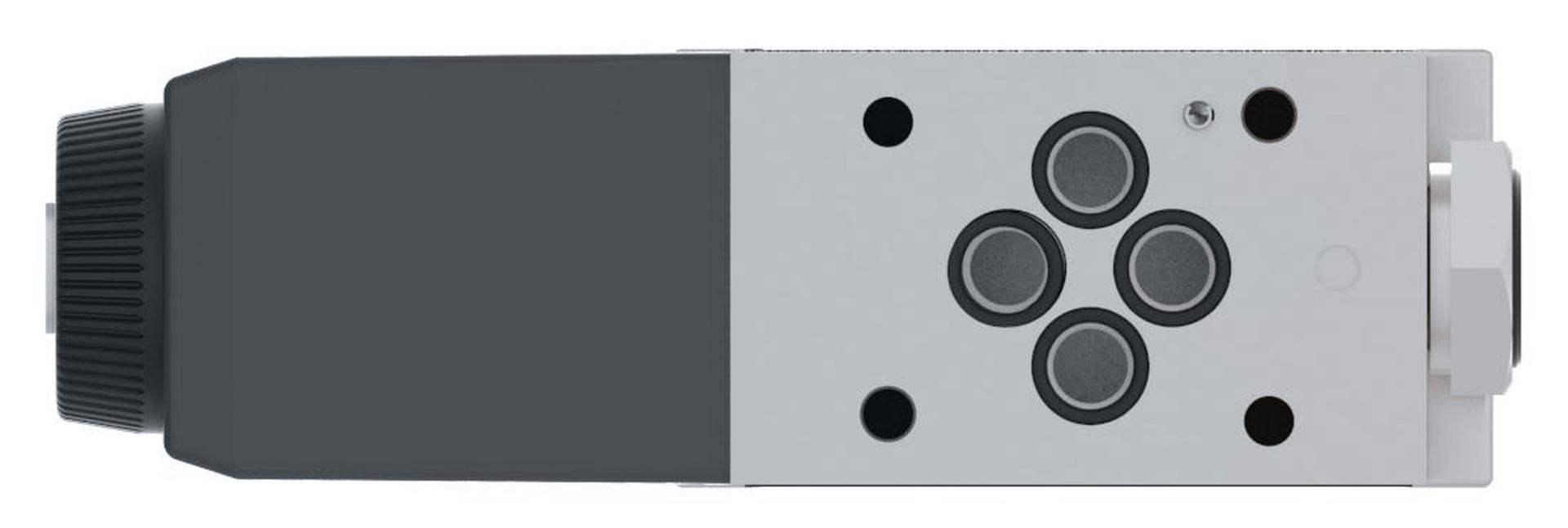

Vickers by Danfoss DG4V-3 60 Design Directional Control Valves Single Stage DG4V3S0AMFPBWB560 (BOTTOM)

Vickers by Danfoss

02-354716

DG4V 3S 0A M FPBW B5 60
The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.
Tools

Product specifications

Characteristic
Value
Actuation IdentificationSolenoid A, Solenoid B
Actuation TypeSolenoid Operated
Actuator IdentificationFlag with Standard Build as Per ANSI B93 9
ApplicationDie casting & foundry, Machine tool, Marine/Offshore, Press, Primary metal, paper, Test equipment & simulation, Turbine control (wind, steam, water)
Body materialGray Iron
BrandVickers by Danfoss
Build OrientationSolenoid 'B' at port 'A' end of valve and Solenoid 'A' at port 'B' end of valve
Build TypeNo spring detented
Coil Rating110 Volt AC 50 Hz/120 Volt AC 60 Hz
Coil TypeISO 4400 mounting
Design code60
DiodeNone
Electrical connectorISO 4400 (Din 43650) Connector
FeatureThree- or four-way directional controlEasily mountable on industry-standard surfacesThousands of models to suit all applications
Flow rate40 l/min
Fluid Cleanliness19/17/14 micron
Fluid compatibilityPetroleum Oils
FunctionDirectional Control Valve
InterfaceISO4401-03
LeakageStandard
LightNo
Manual OverrideNone
Model CodeDG4V 3S 0A M FPBW B5 60
PerformanceHigh Performance
Pressure Rating350 bar
Product Height3.42 in
Product Length/Depth5.75 in
Product TypeDirectional Control Valves
Product Volume35.397 in³
Product Weight3.5 lb
Product Width1.8 in
Reducer ModuleNo
Response time18-32 ms
Seal materialBuna-N
SizeD03
Special featuresCSA APPROVAL.
Spool Center ConditionA Port and Double Offset sensing switch on B Port
Spool Monitor SwitchNone
Spring ArrangementNo Spring
StageSingle Stage
Sub-brandNone
Tank Port Rating100 bar
Trade NameDG4V-3 60 Design
Valve Mount TypeSubplate/manifold mounted
Working temperature - max70 °C
Working temperature - min-20 °C
