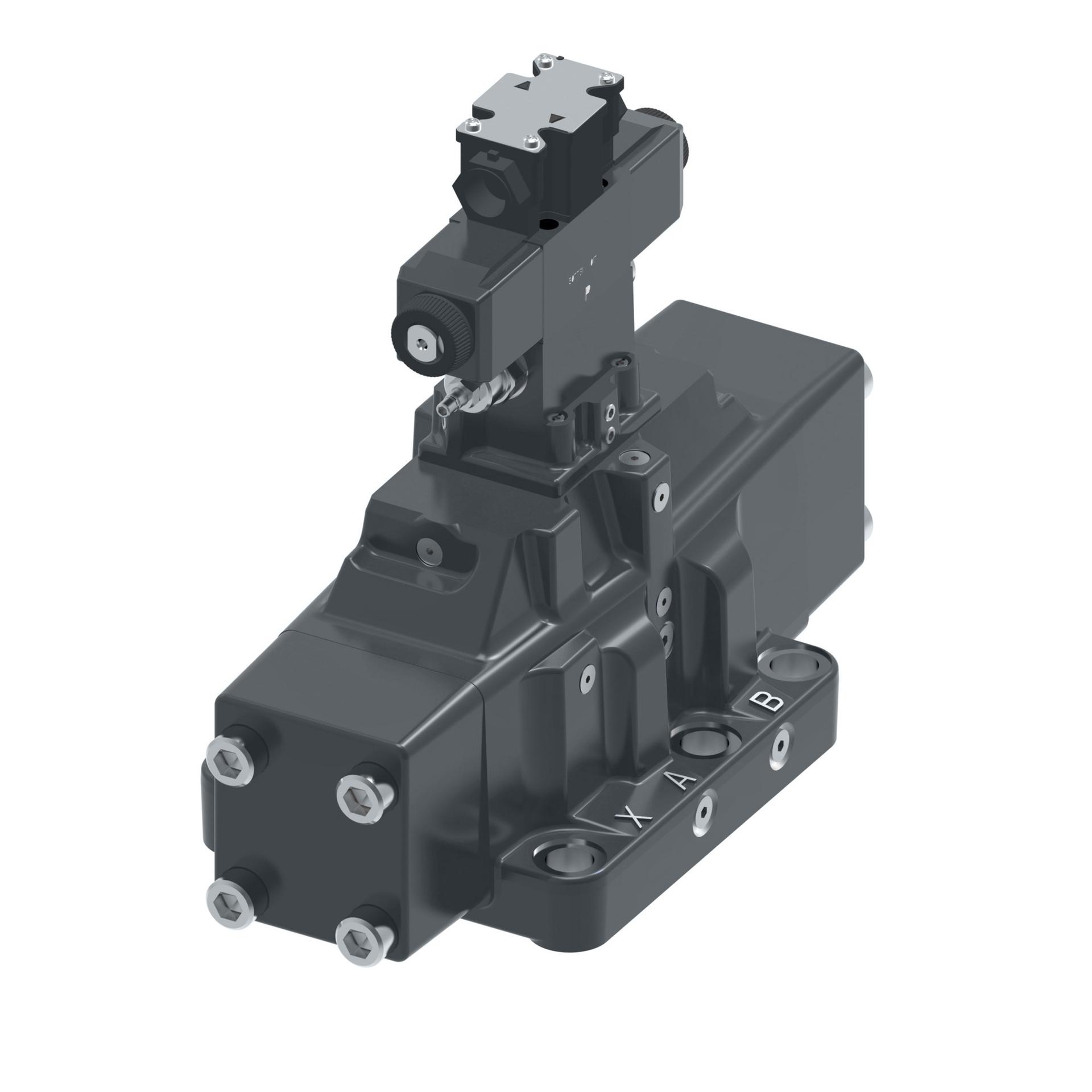

Vickers by Danfoss

02-399473

This product has been discontinued.

The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.

Tools

Product specifications

Characteristic	Value
Actuation Identification	Solenoid A, Solenoid B
Actuation Type	Pilot Operated
Actuator Identification	Flag with Standard Build as Per ANSI B93 9
Application	Die casting & foundry, Machine tool, Marine/Offshore, Press, Primary metal, paper, Test equipment & simulation, Turbine control (wind, steam, water)
Body material	Ductile Iron
Brand	Vickers by Danfoss
Build Orientation	Solenoid 'B' at port 'A' end of valve and Solenoid 'A' at port 'B' end of valve
Build Type	Spring centered
Coil Rating	110 Volt AC 50 Hz/120 Volt AC 60 Hz
Coil Type	1/2 inch NPT thread conduit box
Design code	10
Diode	None
Electrical connector	Flying Lead Coil with 1/2 In. NPT Thread Wiring Housing
Feature	Three- or four-way directional controlEasily mountable on industry-standard surfacesThousands of models to suit all applications
Flow rate	700 l/min
Fluid Cleanliness	19/17/14 micron
Fluid compatibility	Petroleum Oils
Function	Directional Control Valve
Gauge Port Thread Type	0.4375 - 20 UNF, SAE Thread
Interface	ISO4401-10
Leakage	Standard
Light	No
Manual Override	Plain
Model Code	DG5V-10-S-0C-2-E-M-FW-B-10
Performance	Standard
Pilot Drain	External
Pilot Supply	External
Pilot Valve Type	Standard
Pressure Rating	350 bar
Product Height	11.99 in
Product Length/Depth	16.5 in
Product Type	Directional Control Valves
Product Volume	1483.763 in³
Product Weight	100 lb
Product Width	7.5 in
Reducer Module	No
Seal material	Buna-N
Size	D10
Special features	None
Spool Center Condition	A Port and Double Offset sensing switch on B Port
Spool Monitor Switch	None
Spring Arrangement	C
Stage	Two Stage
Sub-brand	None
Trade Name	DG5V-10 10 Design
Valve Mount Type	Subplate/manifold mounted
Working temperature - max	66 °C
Working temperature - min	-18 °C
