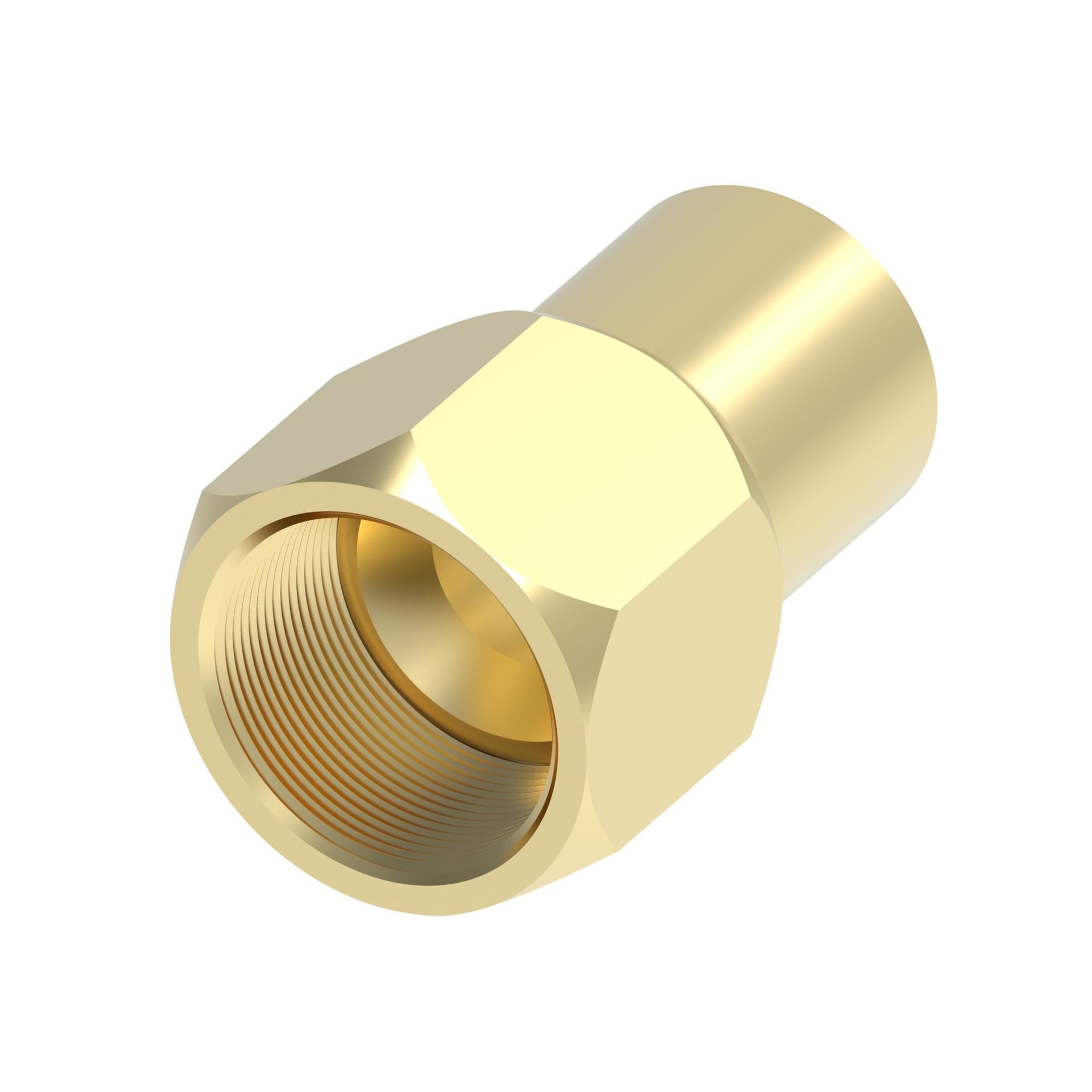

Hose Fittings 05700P-400 (RIGHT)

Weatherhead by Danfoss

05710P-410

The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.
Tools

Product specifications

Characteristic
Value
Angle (shape)Straight
ApplicationHigh pressure truck hose for use in transmission oil cooler lines, fuel lines and diesel fuel lines.
BrandWeatherhead by Danfoss
Compatible hose ID.63 in
Compatible hosesH429
Compatible tube OD.63 in
Construction styleCrimp
End gender 1Female
End Size 17/8 IN
End type 1SAE 45
End type 2Line/Hose/Tube
FeatureDura-Kote plating for superior corrosion resistanceInnovative design to deliver performance and maximum uptimeSystem engineered to extend hose assembly life
Hex Size 11 in
Hose cut-off factor1.1 in
Hose dash size-10
Inside diameter.44 in
Item typeFitting Assembly
Outside diameter1 in
Packaged Height5.5 in
Packaged Length6.75 in
Packaged Volume250.594 in³
Packaged Weight.5 lb
Packaged Width6.75 in
Product Height1 in
Product Length/Depth2.07 in
Product materialBrass
Product TypeCrimp Hose Fittings
Product Volume2.07 in³
Product Weight.18 lb
Product Width1 in
Sub-brandNone
Thread sealantNo
Thread Size 17/8-14
Trade Name057 P Series
UNSPSC27121701
UPC639789266392
