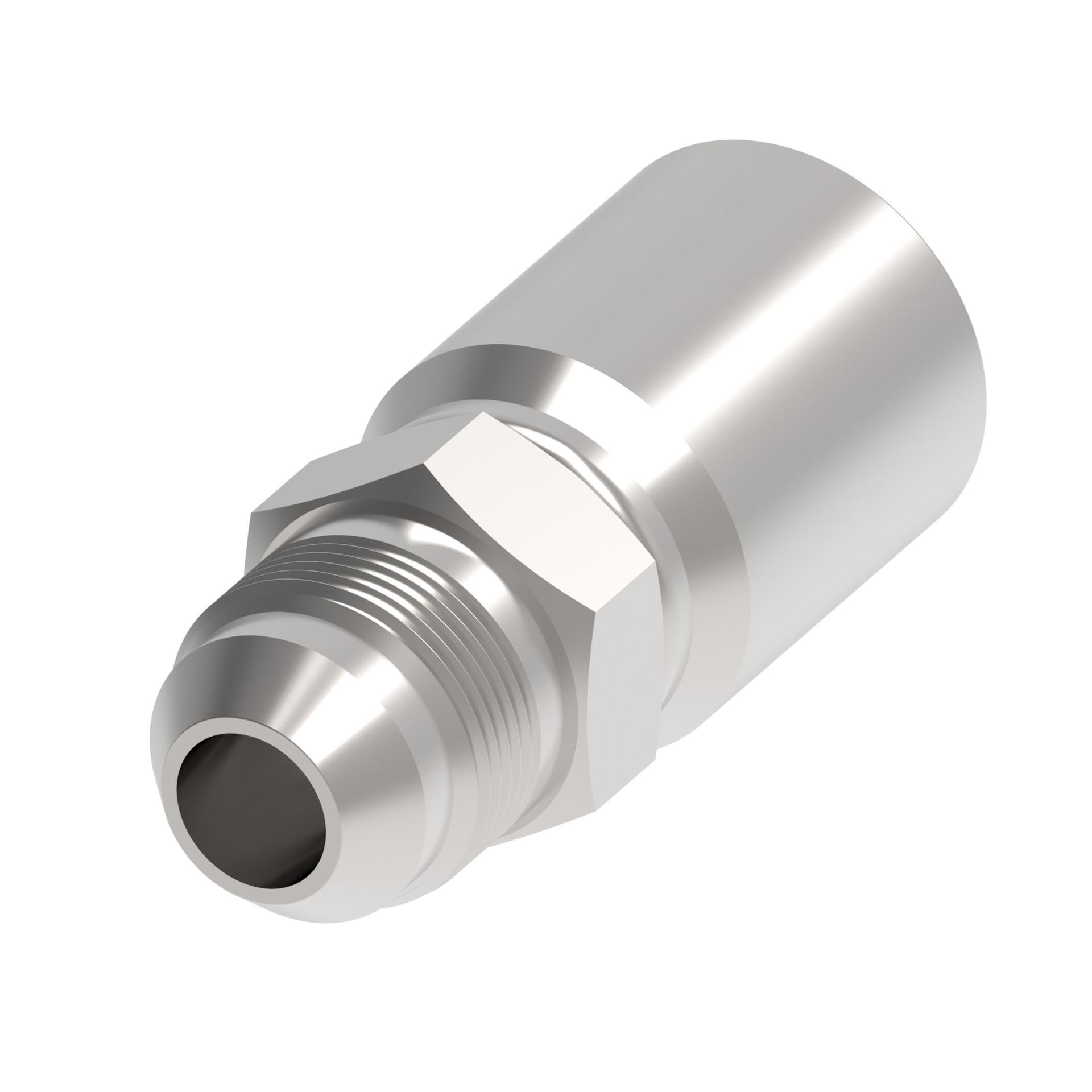

Hose Fittings 06900E-300 (RIGHT)

Weatherhead by Danfoss

06906E-306

The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.
Tools

Product specifications

Characteristic
Value
Angle (shape)Straight
ApplicationGeneral purpose low and medium pressure hydraulics. Generally used for truck and off-road vehicle applications.
BrandWeatherhead by Danfoss
Compatible hose ID.38 in
Compatible hosesH059, H069, H166, H169, H229, H239, H366, H569
Compatible tube OD.31 in
Construction styleCrimp
End gender 1Male
End Size 11 5/16 IN
End type 1UN
End type 2Line/Hose/Tube
FeatureDura-Kote plating for superior corrosion resistanceInnovative design to deliver performance and maximum uptimeSystem engineered to extend hose assembly life
Finish/platingDURA-KOTE
Hex Size 1.69 in
Hose cut-off factor1.1 in
Hose dash size-6
Inside diameter.24 in
Item typeFitting Assembly
Outside diameter.82 in
Packaged Height5.5 in
Packaged Length6.75 in
Packaged Volume250.594 in³
Packaged Weight.5 lb
Packaged Width6.75 in
Product Diameter.82 in
Product Height.82 in
Product Length/Depth2.19 in
Product materialCarbon Steel
Product TypeCrimp Hose Fittings
Product Volume1.473 in³
Product Weight.11 lb
Product Width.82 in
Sub-brandNone
Thread sealantNo
Thread Size 11 5/16-12
Trade Name069 E Series
UNSPSC27121701
UPC639789361240
