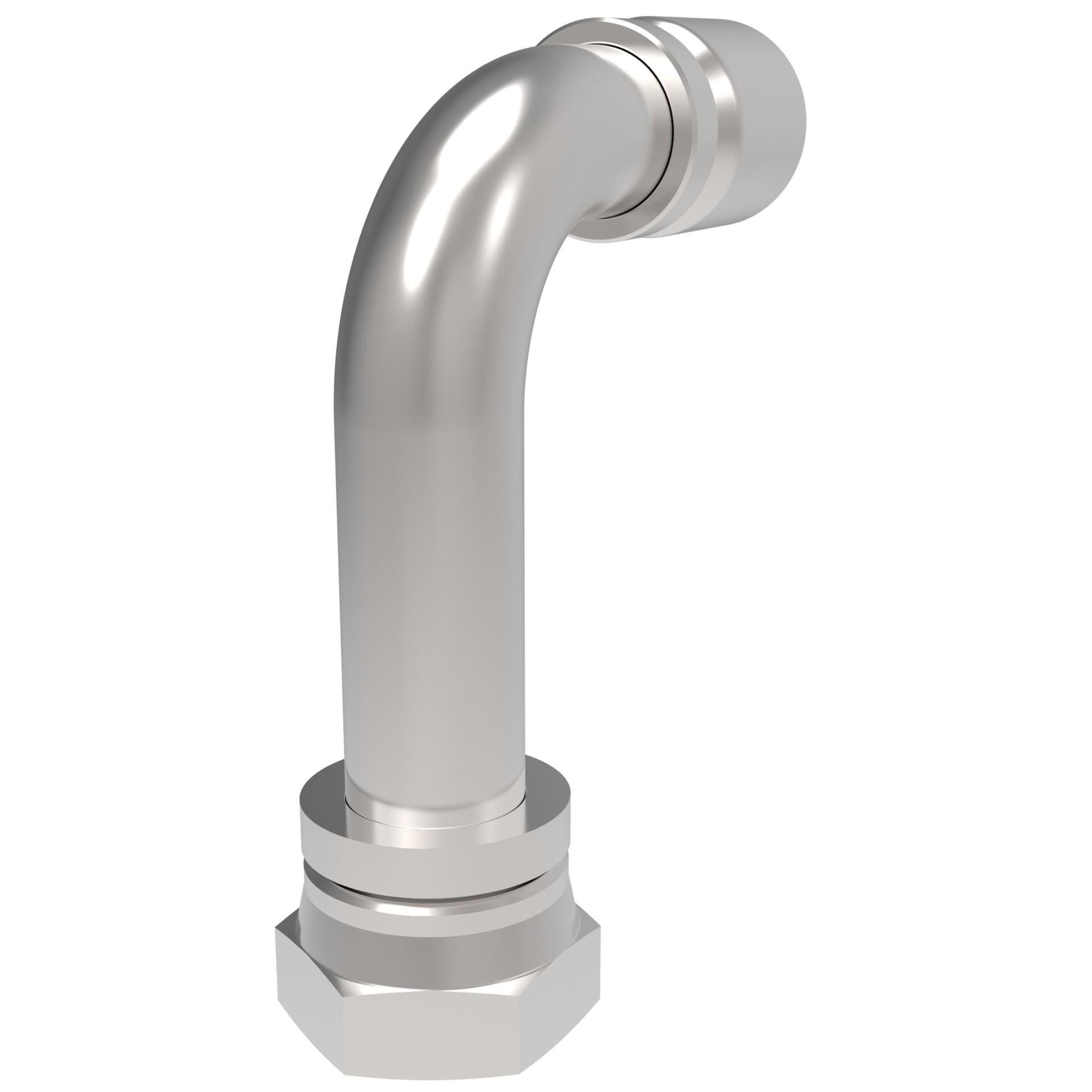

Hose Fittings 069XXE-6XX (RIGHT)

Weatherhead by Danfoss

06920E-657

The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.
Tools

Product specifications

Characteristic
Value
Angle (shape)90 Degree
ApplicationGeneral purpose low and medium pressure hydraulics. Generally used for truck and off-road vehicle applications.
BrandWeatherhead by Danfoss
Compatible hose ID1.25 in
Compatible hosesH059 , H069, H166, H169, H229, H239, H366, H569
Compatible tube OD1.13 in
Construction styleCrimp
Drop dimension5.38
End gender 1Female
End Size 11 5/8 IN
End type 1JIC 37
End type 2Line/Hose/Tube
FeatureDura-Kote plating for superior corrosion resistanceInnovative design to deliver performance and maximum uptimeSystem engineered to extend hose assembly life
Finish/platingDURA-KOTE
Hex Size 12 in
Hose cut-off factor2.9 in
Hose dash size-20
Inside diameter.9 in
Item typeFitting Assembly
Outside diameter2 in
Packaged Height5.5 in
Packaged Length6.75 in
Packaged Volume250.594 in³
Packaged Weight.5 lb
Packaged Width6.75 in
Product Height6.86 in
Product Length/Depth5.32 in
Product materialCarbon Steel
Product TypeCrimp Hose Fittings
Product Volume72.99 in³
Product Weight1.125 lb
Product Width2 in
Sub-brandNone
Thread sealantNo
Thread Size 11 5/8-12
Trade Name069 E Series
UNSPSC27121701
UPC725975705582
